Serializer Switching Characteristics
(Continued)
Over recommended operating supply and temperature ranges unless otherwise specified. (Notes 2, 3)
Symbol
Parameter
Conditions
R
L
= 100
,
C
L
=10pF to GND
(Note 5)
(Note 6)
R
L
= 100
,
C
L
=10pF to GND
(Note 5)
(Note 7)
Pin/Freq.
Min
Typ
Max
Units
ps
(rms)
ps
(rms)
ps
(p-p)
ps
(p-p)
t
RJIT
Random Jitter
25MHz
39
45
66MHz
18
21
t
DJIT
Deterministic Jitter,
Figure 10
25MHz
225
20
257
66MHz
150
55
68
SCAN Circuitry Timing Requirements
Over recommended operating supply and temperature ranges unless otherwise specified.
Symbol
f
MAX
Parameter
Maximum TCK Clock
Frequency
TDI to TCK, H or L
TDI to TCK, H or L
TMS to TCK, H or L
TMS to TCK, H or L
TCK Pulse Width, H or L
TRST Pulse Width, L
Recovery Time, TRST to
TCK
Conditions
R
L
= 500
,
C
L
= 35 pF
Min
25
Typ
Max
Units
MHz
t
S
t
H
t
S
t
H
t
W
t
W
t
REC
2.0
1.0
2.0
1.0
10.0
2.5
2.5
ns
ns
ns
ns
ns
ns
ns
Note 1:
“Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The table of “Electrical Characteristics” specifies conditions of device operation.
Note 2:
Typical values are given for V
CC
= 3.3V and T
A
= +25C.
Note 3:
Current into device pins is defined as positive. Current out of device pins is defined as negative. Voltages are referenced to ground except VOD, and
VOD
which are differential voltages.
Note 4:
BIST_SEL have a weak internal pull-up. In a noisy operating environment, it is recommended that an external pull up be used to ensure that BIST_SEL is
in the high state.
Note 5:
t
LLHT
, t
LHLT
, t
DJIT
and t
RJIT
specifications are Guaranteed by Design using statistical analysis.
Note 6:
t
RJIT
specification is the rms jitter measurement of the serializer output when the device is transmitting SYNC pattern.
Note 7:
t
specification is measured with the serializer output transmitting checkerboard patterns. It is a measurement of the center distribution of 0V (differential)
crossing in comparsion with the ideal bit position. See
Figure 10
AC Timing Diagrams and Test Circuits

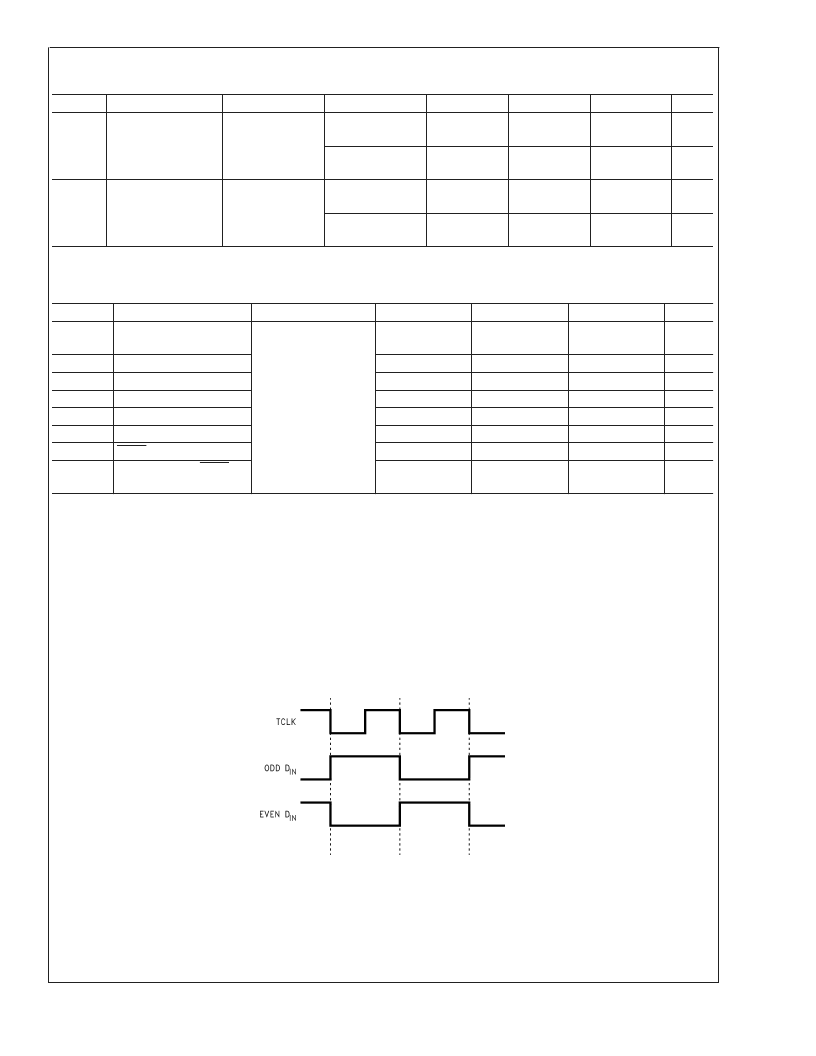

20052103
FIGURE 1. ’Worst Case Icc Test Pattern
S
www.national.com
5
