Silan
Semiconductors
SC2128C
HANGZHOU SILAN MICROELECTRONICS JOINT-STOCK CO.,LTD
Rev: 1.1 2001.09.26
5

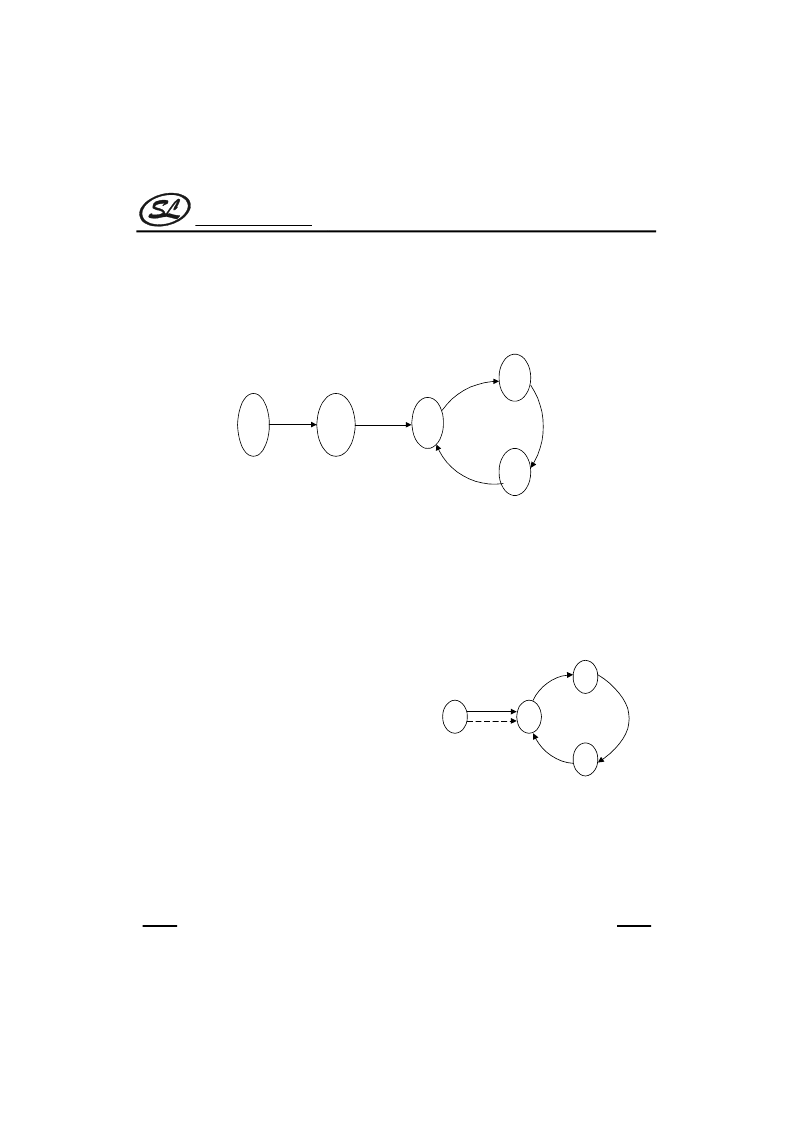

2. SPEED KEY
SPEED key is used to (1) turn on the fan (2) change speed of the fan. SLEEP key my turn on the fan from remote
control handset. All the other key scan NOT turn on the fan. All the other keys, except LIGHT key, can NOT
operate until fan is turned on. The diagram shows the state transition of SC2128C for successive pressing of
SPEED key.
OFF
LO=Z
MI=Z
ST=Z
MI start
LO=Z
MI=L
ST=Z
LOW
LO=L
MI=Z
ST=Z
MID
LO=Z
MI=L
ST=Z
STR
LO=Z
MI=Z
ST=L
SPEED KEY
2-3 sec, delay
SPEED KEY
S
SPEEDKEY
Z=high impedence
L=low voltage
Middle wind start-up optioned
3. TIMER KEY
TIMER key is used to set time schedule after which SC2128C will automatically restore off state(off-timer).
When the fan is on, pressing TIMER key sets up the off-timer. Each pressing of TIMER key increases the
timer by one step. Each time increment step is determined by various timer options. Either 0.5 or 1 hour
per step may be selected, and either 3 levels or 4 levels timer may be selected. Please see TIMER section
for details.
4. MODE KEY
MODE key is used to bring SC2128C around ORD
(ordinary wind) mode, RTM (rhythm wind ) mode and
RSL(rhythm sleep wind ) mode. In ORD mode, the wind
speed is set by SPEED key and does not change as
time passes. In RTM mode the wind speed cycles
through three rhythm wind, patterns as set by the
SPEED key. In RSL mode, however, the fan
automatically steps down one level (strong to middle,
middle to low) every 30 minutes and keeps in low wind
until off-timer times out. Four modes of operation are
described in details later.
OFF
ORD
RTM
RSL
SPEED KEY
MODEKEY
MODEKEY
M
