6
Data Device Corporation
www.ddc-web.com
SB-36110VX
H-01/06-0
REFERENCE CONFIGURATION
The SB-3611X has resistors that attenuate the reference to a
level that is acceptable for the RDC-19222S converter. The
selection of the reference voltage is provided by links (jumpers)
on a header (J12).
There are four references on the board. Each reference is differ-
ential so two links are required for each reference group.
Reference Group 1 is controlled by links 1 & 2 of the reference
header. Reference groups 2, 3 and 4 use links 3 & 4, 5 & 6, and
7 & 8 respectively.
Refer to FIGURE 4 to set the reference jumpers.
INPUT CONFIGURATION
The card is configured for either synchro or resolver inputs using
thin film resistor networks which are preset by the factory as per
the part number option selection. (Refer to the SB-36110VX
manual for input jumper configuration details.)
P2
32
1
26V Reference
115V Reference
Selection of Reference Link Positions
RH in 1
RL in 1
RH in 2
RL in 2
RH in 3
RL in 3
RH in 4
RL in 4

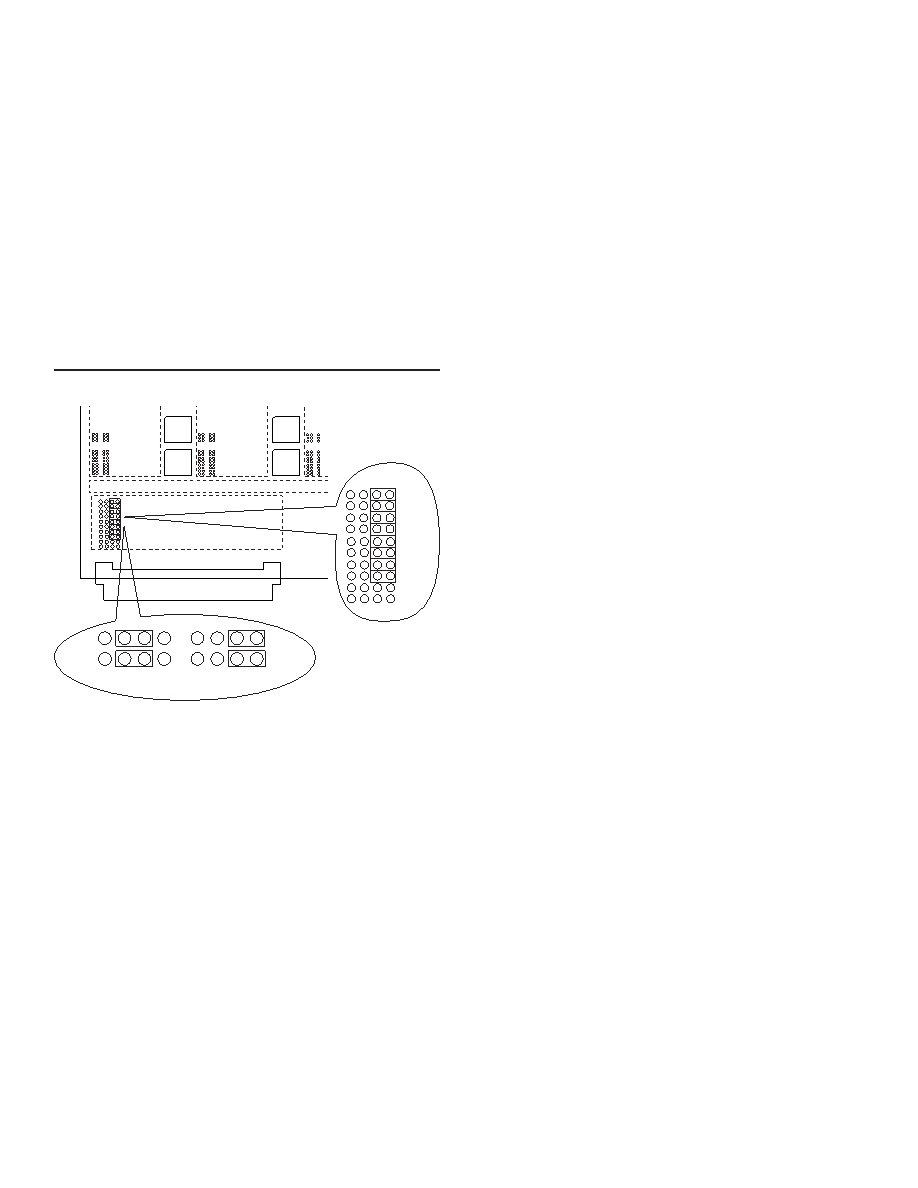

FIGURE 4. REFERENCE JUMPER SELECTION
