SUPER-LOW CURRENT CONSUMPTION SUPER HIGH-ACCURACY VOLTAGE DETECTOR WITH DELAY CIRCUIT (EXTERNAL DELAY TIME SETTING)
S-1009 Series
Rev.4.2_00
Seiko Instruments Inc.
16
Explanation of Terms
1. Detection voltage (
VDET), release voltage (+VDET)
The detection voltage (
VDET) is a voltage at which the output turns to “L”. The detection voltage varies slightly
among products of the same specification. The variation of detection voltage between the specified minimum
(
VDET) Min. and the maximum (VDET) Max. is called the detection voltage range (Refer to Figure 18).
Example:
In the S-1009C15, the detection voltage is either one in the range of 1.488
≤ (VDET) ≤ 1.512.
This means that some S-1009C15s have
VDET = 1.488 V and some have VDET = 1.512 V.
The release voltage is a voltage at which the output turns to “H”. The release voltage varies slightly among
products of the same specification. The variation of release voltages between the specified minimum (
+VDET) Min.
and the maximum (
+VDET) Max. is called the release voltage range (Refer to Figure 19). The range is calculated
from the actual detection voltage (
VDET) of a product and is in the range of VDET × 1.04 ≤ +VDET ≤ VDET × 1.06.
Example:
For the S-1009C15, the release voltage is either one in the range of 1.548
≤ (+VDET) ≤ 1.602.
This means that some S-1009C15s have
+VDET = 1.548 V and some have +VDET = 1.602 V.
Detection voltage
range
VDD
(
VDET) Min.
(
VDET) Max.
OUT
Release voltage
Release
voltage range
VDD
(
+VDET) Min.
(
+VDET) Max.
OUT
Delay time

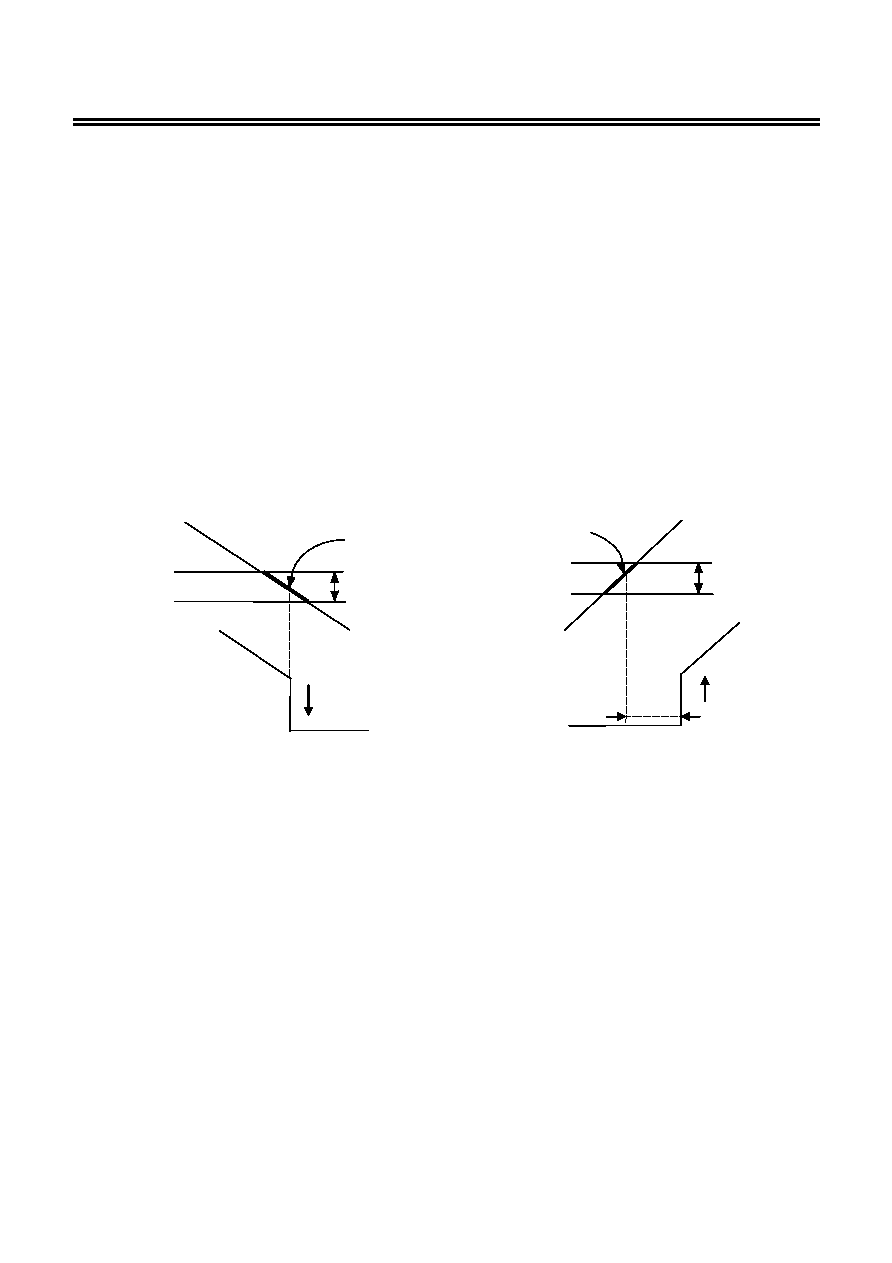

Figure 18 Detection voltage (CMOS output products)
Figure 19 Release voltage (CMOS output products)
