- 您現在的位置：買賣IC網 > PDF目錄2101 > NB6L14MNG (ON Semiconductor)IC CLOCK BUFFER 1:4 3GHZ 16-QFN PDF資料下載
參數資料
| 型號： | NB6L14MNG |
| 廠商： | ON Semiconductor |
| 文件頁數： | 3/10頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC CLOCK BUFFER 1:4 3GHZ 16-QFN |
| 標準包裝： | 123 |
| 系列： | ECLinPS MAX™ |
| 類型： | 扇出緩沖器（分配） |
| 電路數： | 1 |
| 比率 - 輸入:輸出： | 1:4 |
| 差分 - 輸入:輸出： | 是/是 |
| 輸入： | CML，LVCMOS，LVDS，LVPECL，LVTTL |
| 輸出： | LVCMOS，LVPECL |
| 頻率 - 最大： | 3GHz |
| 電源電壓： | 2.375 V ~ 3.63 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-VFQFN 裸露焊盤 |
| 供應商設備封裝： | 16-QFN（3x3） |
| 包裝： | 管件 |
| 產品目錄頁面： | 1115 (CN2011-ZH PDF) |
| 其它名稱： | NB6L14MNG-ND NB6L14MNGOS |

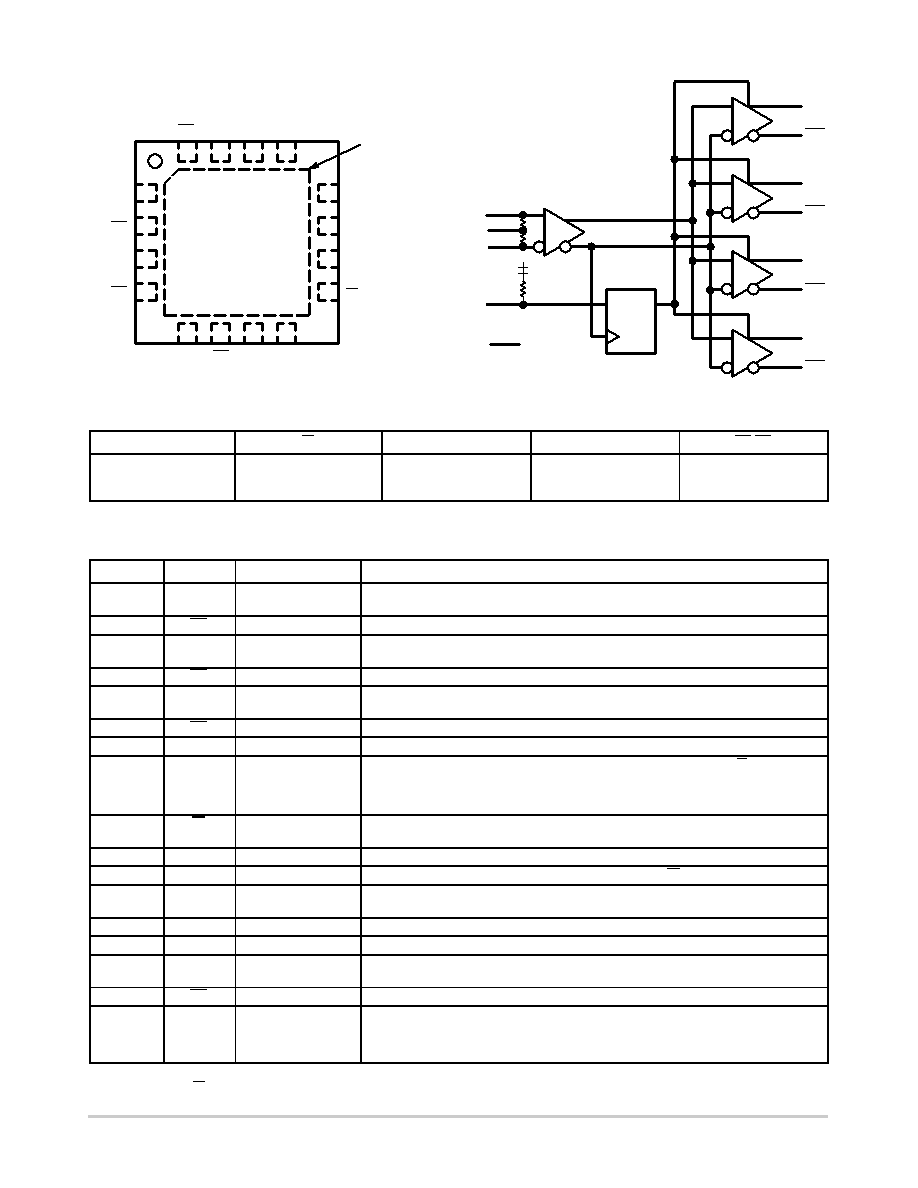

NB6L14
http://onsemi.com
2
Q3
VCC
Q0
VCC
IN
VREF_AC
Q2
56
7
8
16
15
14
13
12
11
10
9
1
2
3
4
Exposed Pad (EP)
Figure 2. QFN16 Pinout
(Top View)
GND
VT
IN
Q3
EN
Q2
Q1
Figure 3. Logic Diagram
Q0
/Q0
Q1
/Q1
Q2
/Q2
Q3
/Q3
Q
D
IN
50 W
VT
/IN
EN
VREF_AC
CLK
Table 1. EN TRUTH TABLE
IN
EN
Q0:Q3
0
1
x
1
0
x
1
0
1
0+
1
0
1+
+ = On next negative transition of the input signal (IN).
x = Don’t care.
Table 2. PIN DESCRIPTION
Pin
Name
I/O
Description
1
Q1
LVPECL Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to
VCC–2.0 V.
2
Q1
LVPECL Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC – 2.0 V.
3
Q2
LVPECL Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to
VCC – 2.0 V.
4
Q2
LVPECL Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC – 2.0 V.
5
Q3
LVPECL Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to
VCC – 2.0 V.
6
Q3
LVPECL Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC – 2.0 V.
7
VCC
Positive Supply Voltage
8
EN
LVTTL/LVCMOS
Synchronous Output Enable. When LOW, Q outputs will go LOW and Q outputs will
go HIGH on the next negative transition of IN input. The internal DFF register is
clocked on the falling edge of IN input (see Figure 20). The EN pin has an internal
pullup resistor and defaults HIGH when left open.
9
IN
LVPECL, CML,
LVDS, HSTL
Inverted Differential Clock Input. Internal 50 W Resistor to Termination Pin, VT.
10
VREF_AC
Output Voltage Reference for capacitorcoupled inputs, only.
11
VT
Internal 100 W centertapped Termination Pin for IN and IN.
12
IN
LVPECL, CML,
LVDS, HSTL
Noninverted Differential Clock Input. Internal 50 W Resistor to Termination Pin, VT.
13
GND
Negative Supply Voltage
14
VCC
Positive Supply Voltage
15
Q0
LVPECL Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to
VCC–2.0 V.
16
Q0
LVPECL Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC–2.0 V.
EP
The Exposed Pad (EP) on the QFN16 package bottom is thermally connected to the
die for improved heat transfer out of package. The exposed pad must be attached to
a heatsinking conduit. The pad is not electrically connected to the die, but is
recommended to be electrically and thermally connected to GND on the PC board.
1. In the differential configuration when the input termination pin VT, is connected to a common termination voltage or left open, and if no signal
is applied on IN/IN inputs, then the device will be susceptible to selfoscillation.
