General Description
The MAX9568 video sync separator extracts sync timing
information from standard-definition (SDTV), extended-
definition (EDTV), and high-definition (HDTV) component
video signals. This device is designed for reliable opera-
tion in the presence of copy protection schemes such as
MACROVISION.
The MAX9568 is a stand-alone device and requires no
external components for timing or biasing. High-imped-
ance video inputs prevent loading of the input signal
and eliminate the need for buffering.
The MAX9568 is available in a 16-pin QSOP package.
The device is specified over the -40°C to +85°C tem-
perature range.
Applications
Features
Stand-Alone Operation—No Timing Element
Required
Covers All Major Standards: SDTV, EDTV, and HDTV
Identification of Input Standard
Loss of Video Signal Detection
Coast and Clamp Pulse Outputs
High-Impedance Bridging Video Input
No Distortion to Video Signal
Low Quiescent Current (< 10mA)
2.7V to 5.5V Single Supply
MAX9568
Component Analog TV Sync Separator
________________________________________________________________
Maxim Integrated Products
1
Ordering Information
300k
Ω
INPUT
BUFFER
0.35 VCC
0.1
μF
VCC
GND
MAX9568
SYNC SLICER
OUTPUT
PULSE
GENERATOR
VTHRESH
VIDEO STANDARD
DECODE
FR
HL
SDTV
HDTV
CSYNCOUT
CVIDIN
HSYNCOUT
CLAMP
VSYNCOUT
ODD/EVEN
LOS
COAST

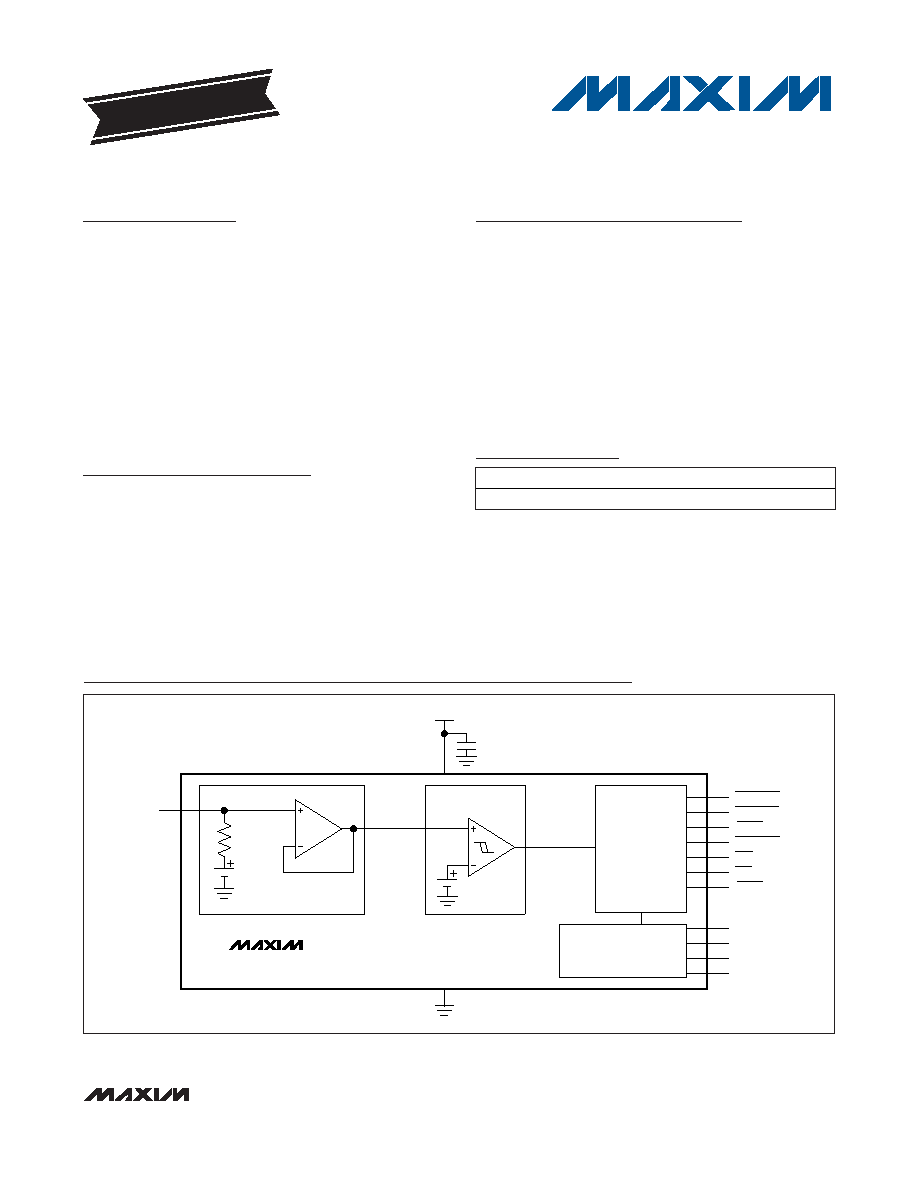

Functional Diagram
19-4103; Rev 1; 12/08
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
EVALUATION
KIT
AVAILABLE
PART
PIN-PACKAGE
TOP MARK
MAX9568EEE+T
16 QSOP
—
Note: All devices are specified over the -40°C to +85°C operat-
ing temperature range.
+
Denotes a lead(Pb)-free/RoHS-compliant package.
T = Tape and reel.
Video Digitizers
Instrumentation
PDP Television
LCD Panels
Frame Grabbers
Video Recorders
MACROVISION is a registered trademark of Macrovision Corp.
