General Description
The MAX3100 universal asynchronous receiver transmit-
ter (UART) is the first UART specifically optimized for
small microcontroller-based systems. Using an
SPI/Microwire interface for communication with the
host microcontroller (C), the MAX3100 comes in a com-
pact 16-pin QSOP. The asynchronous I/O is suitable for
use in RS-232, RS-485, IR, and opto-isolated data links.
IR-link communication is easy with the MAX3100’s
infrared data association (IrDA) timing mode.
The MAX3100 includes a crystal oscillator and a baud-
rate generator with software-programmable divider ratios
for all common baud rates from 300 baud to 230k baud.
A software- or hardware-invoked shutdown lowers quies-
cent current to 10A, while allowing the MAX3100 to
detect receiver activity.
An 8-word-deep first-in/first-out (FIFO) buffer minimizes
processor overhead. This device also includes a flexible
interrupt with four maskable sources, including address
recognition on 9-bit networks. Two hardware-handshak-
ing control lines are included (one input and one output).
The MAX3100 is available in 14-pin plastic DIP and small,
16-pin QSOP packages in the commercial and extended
temperature ranges.
________________________Applications
Handheld Instruments
Intelligent Instrumentation
UART in SPI Systems
Small Networks in HVAC or Building Control
Isolated RS-232/RS-485: Directly Drives Opto-Couplers
Low-Cost IR Data Links for Computers/Peripherals
____________________________Features
o Small TQFN and QSOP Packages Available
o Full-Featured UART:
—IrDA SIR Timing Compatible
—8-Word FIFO Minimizes Processor
Overhead at High Data Rates
—Up to 230k Baud with a 3.6864MHz Crystal
—9-Bit Address-Recognition Interrupt
—Receive Activity Interrupt in Shutdown
o SPI/Microwire-Compatible C Interface
o Lowest Power:
—150A Operating Current at 3.3V
—10A in Shutdown with Receive Interrupt
o +2.7V to +5.5V Supply Voltage in Operating Mode
o Schmitt-Trigger Inputs for Opto-Couplers
o TX and RTS Outputs Sink 25mA for Opto-Couplers
MAX3100
SPI/Microwire-Compatible
UART in QSOP-16
________________________________________________________________
Maxim Integrated Products
1
14
13
12
11
10
9
8
1
2
3
4
5
6
7
VCC
TX
RX
RTS
CS
SCLK
DOUT
DIN
TOP VIEW
MAX3100
CTS
X1
X2
GND
SHDN
IRQ
DIP
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
VCC
TX
RX
RTS
N.C.
CTS
X1
X2
DIN
DOUT
SCLK
CS
N.C.
IRQ
SHDN
GND
MAX3100
QSOP
TQFN-EP
MAX3100
19
20
21
22
1
2
34
56
18
17
16
15
14
13
23
24
12
11
10
9
8
7
N.C.
TX
N.C.
VCC
N.C.
DOUT
SCLK
CS
IRQ
N.C.
RX
CTS
N.C.
DIN
N.C.
X2
X1
GND
N.C.
*EP = EXPOSED PAD, CONNECT EP TO GROUND
SHDN
RTS
*EP
+

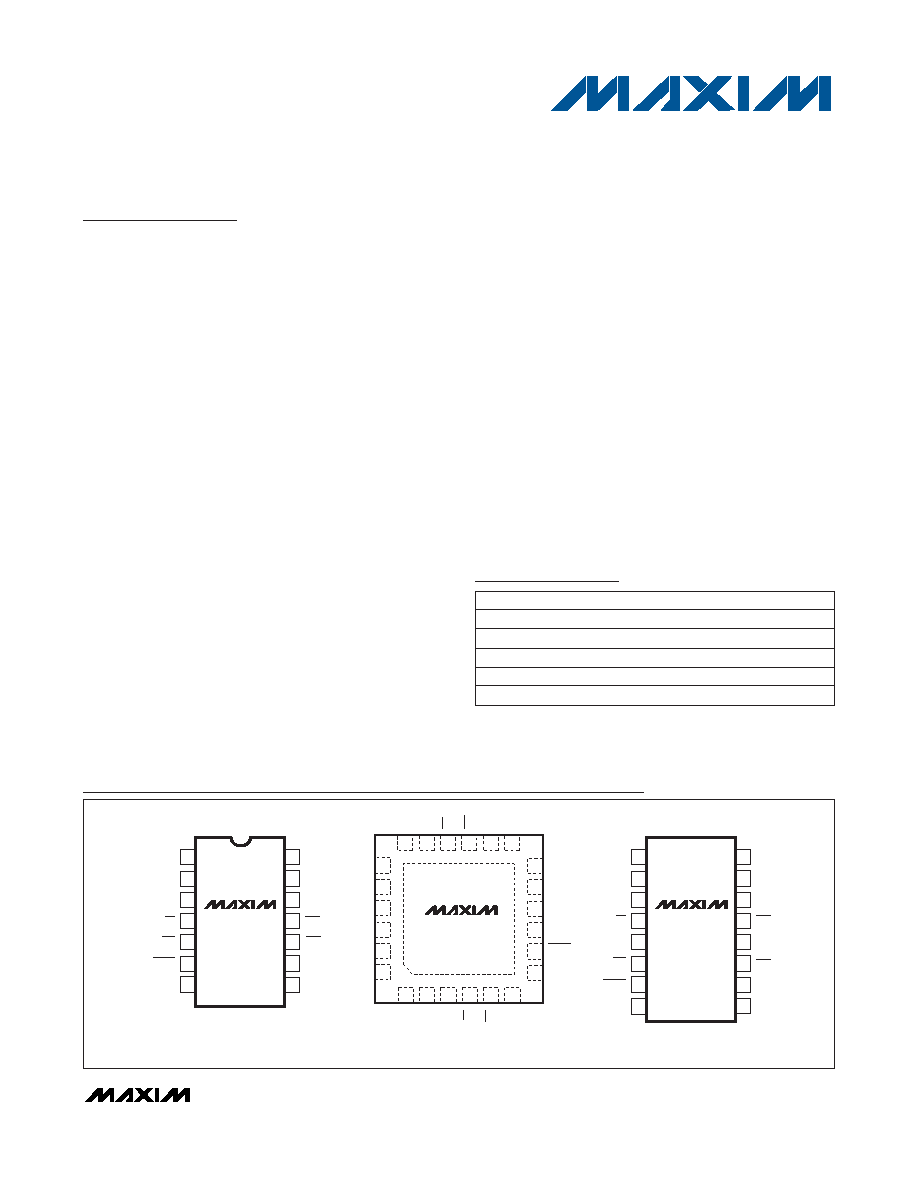

Pin Configurations
19-1259; Rev 2; 1/09
PART
MAX3100CPD+
MAX3100CEE+
0°C to +70°C
TEMP RANGE
PIN-PACKAGE
14 Plastic DIP
16 QSOP
Ordering Information
Typical Operating Circuit appears at end of data sheet.
SPI is a trademark of Motorola, Inc. Microwire is a trademark of National Semiconductor Corp.
MAX3100EPD+
MAX3100EEE+
-40°C to +85°C
14 Plastic DIP
16 QSOP
MAX3100ETG+
-40°C to +85°C
24 TQFN-EP*
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
+
Denotes a lead(Pb)-free/RoHS-compliant package.
EP = Exposed pad.
