LTC3525L-3
5
3525lfa
SHDN (Pin 1): Logic-Controlled Shutdown Input. Connect
to a voltage >0.88V to enable the LTC3525L-3. Connect to
a voltage <0.3V to disable the LTC3525L-3.
GND (Pins 2, 5): Ground.
VIN (Pin 3): Input Voltage. The LTC3525L-3 is powered
from VIN until VOUT exceeds VIN. Once VOUT is greater
than (VIN + 0.2V typical), it is powered from VOUT. Place a
ceramic bypass capacitor from VIN to GND. A minimum
value of 1F is recommended.
VOUT (Pin 4): Output Voltage Sense and the Output of the
Synchronous Rectifier. Connect the output filter capacitor
from VOUT to GND, close to the IC. A minimum value of
10F ceramic is recommended. Use 22F for reduced
output ripple. The output disconnect feature disconnects
VOUT from VIN when SHDN is <0.3V.
SW (Pin 6): Switch Pin. Connect an inductor from this
pin to VIN. An internal antiringing resistor is connected
across SW and VIN after the inductor current has dropped
to zero to minimize EMI.
PIN FUNCTIONS

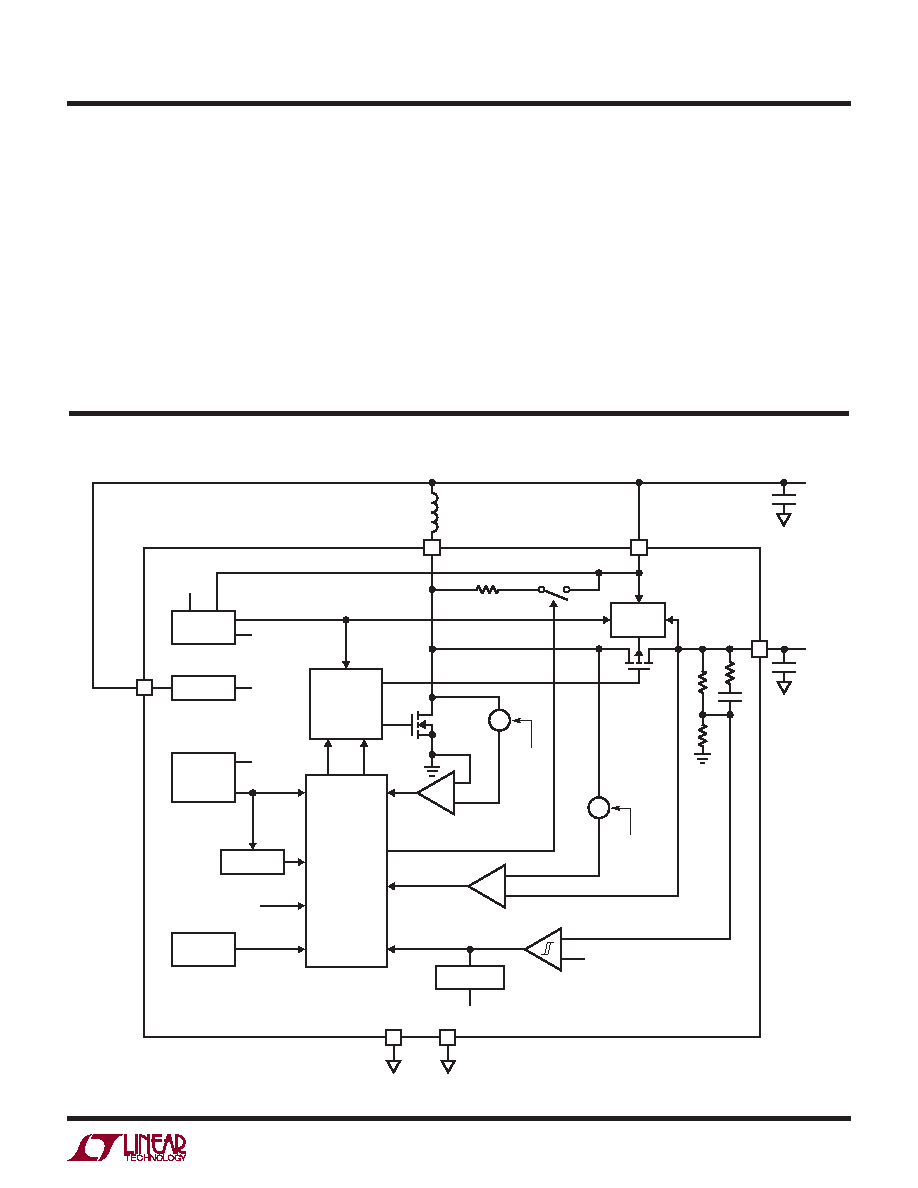

BLOCK DIAGRAM
–
+
–
+
–
3
6
1
2
4
VREF
IPK
COMPARATOR
IVALLEY
COMPARATOR
SLEEP
COMPARATOR
INTEGRATOR
WAKE
TSD
IVAL
VOUT
VIN
SHDN
SW
IPK
ADJUST
GND
5
GND
FB
OFFSET
ADJUST
OFFSET
ADJUST
LOGIC
GATE DRIVERS
AND
ANTI-CROSS
CONDUCTION
WELL
SWITCH
VBEST
VREF
UVLO
THERMAL
SHUTDOWN
VB
SHUTDOWN
START-UP
UVLO
SHUTDOWN
VREF
VSEL
VOUT
3525L BD
VIN
1F
10F
10H
–
+
–
+
