LTC3414
16
3414fb
Linear Technology Corporation
1630 McCarthy Blvd., Milpitas, CA 95035-7417
(408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com
LINEAR TECHNOLOGY CORPORATION 2003
LT 0607 REV B PRINTED IN USA

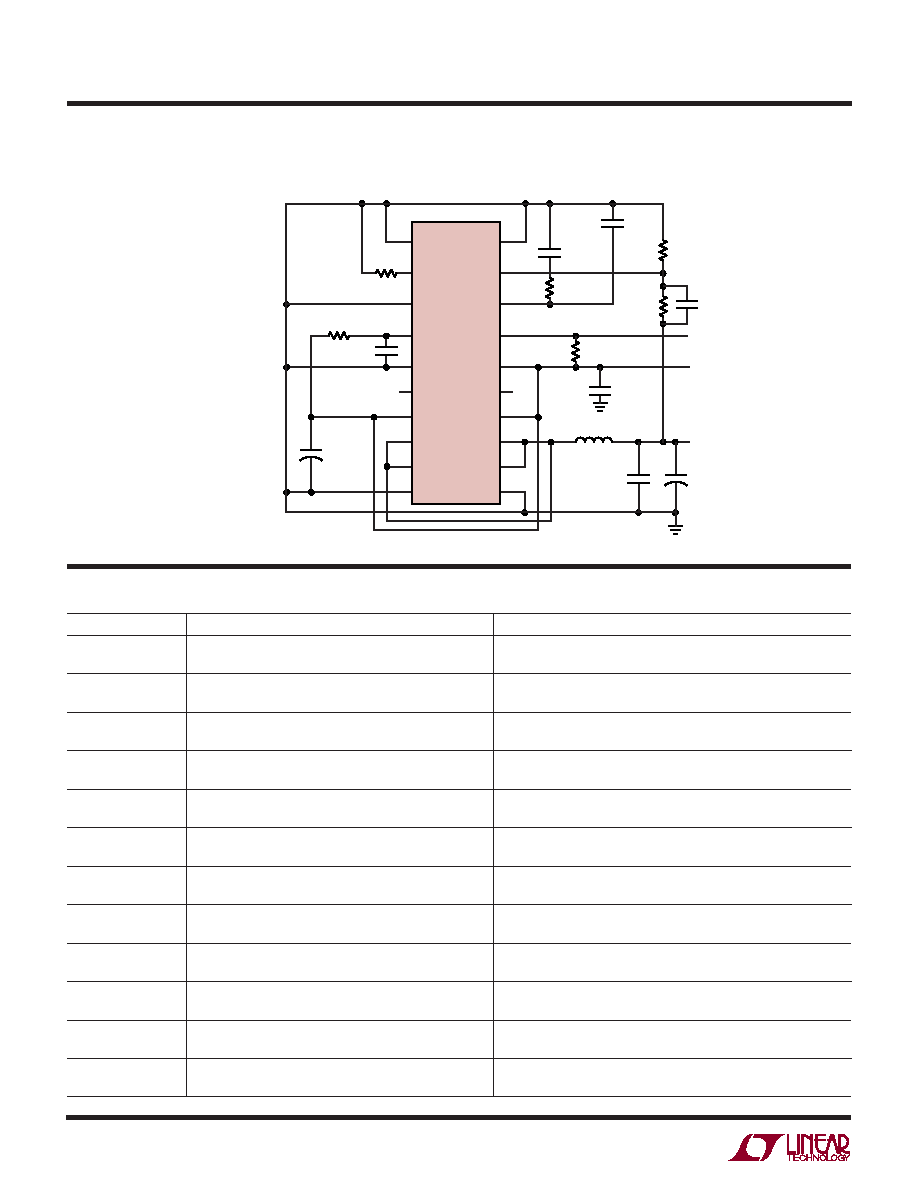

RELATED PARTS
TYPICAL APPLICATIO
U
3413 TA01
1
2
3
4
5
20
19
18
17
16
CITH
470pF
X7R
CSS
1000pF, X7R
RSS
2.2M
ROSC
294k
RITH
15k
RPG
100k
CC
100pF
X7R
R2
200k
PGND
RT
SYNC/MODE
RUN/SS
SGND
PGND
VFB
ITH
PGOOD
SVIN
LTC3414
COUT1**
470
μF
COUT2
22
μF
X5R
L1*
0.44
μH
CIN1
22
μF
X5R
2x
CIN2**
470
μF
C1
39pF
X7R
R1
178k
VOUT
1.5V
4A
VIN
2.5V
PGOOD
*
**
PULSE P1166.68IT
SANYO POSCAP 4TPD470M
6
7
8
9
10
NC
PVIN
SW
PGND
15
14
13
12
11
NC
PVIN
SW
PGND
+
PART NUMBER
DESCRIPTION
COMMENTS
LT1616
500mA (IOUT), 1.4MHz, High Efficiency Step-Down
90% Efficiency, VIN: 3.6V to 25V, VOUT: 1.25V,
DC/DC Converter
IQ: 1.9mA, ISD: <1μA, ThinSOT Package
LT1676
450mA (IOUT), 100kHz, High Efficiency Step-Down
90% Efficiency, VIN: 7.4V to 60V, VOUT: 1.24V,
DC/DC Converter
IQ: 3.2mA, ISD: 2.5μA, S8 Package
LT1765
25V, 2.75A (IOUT), 1.25MHz, High Efficiency Step-Down
90% Efficiency, VIN: 3V to 25V, VOUT: 1.2V,
DC/DC Converter
IQ: 1mA, ISD: 15μA, S8, TSSOP16E Packages
LTC1879
1.20A (IOUT), 550kHz, Synchronous Step-Down
95% Efficiency, VIN: 2.7V to 10V, VOUT: 0.8V,
DC/DC Converter
IQ: 15μA, ISD: <1μA, TSSOP16 Package
LTC3405/LTC3405A
300mA (IOUT), 1.5MHz, Synchronous Step-Down
95% Efficiency, VIN: 2.75V to 6V, VOUT: 0.8V,
DC/DC Converter
IQ: 20μA, ISD: <1μA, ThinSOT Package
LTC3406/LTC3406B
600mA (IOUT), 1.5MHz, Synchronous Step-Down
95% Efficiency, VIN: 2.5V to 5.5V, VOUT: 0.6V,
DC/DC Converter
IQ: 20μA, ISD: <1μA, ThinSOT Package
LTC3407
Dual 600mA (IOUT), 1.5MHz, Synchronous Step-Down
95% Efficiency, VIN: 2.5V to 5.5V, VOUT: 0.6V,
DC/DC Converter
IQ: 40μA, ISD: <1μA, MS Package
LTC3411
1.25A (IOUT), 4MHz, Synchronous Step-Down
95% Efficiency, VIN: 2.5V to 5.5V, VOUT: 0.8V,
DC/DC Converter
IQ: 60μA, ISD: <1μA, MS Package
LTC3412
2.5A (IOUT), 4MHz, Synchronous Step-Down
95% Efficiency, VIN: 2.5V to 5.5V, VOUT: 0.8V
DC/DC Converter
IQ: 60μA, ISD: <1μA, TSSOP16E Package
LTC3413
3A (IOUT Sink/source), 2MHz, Monolithic Synchronous
90% Efficiency, VIN: 2.25V to 5.5V, VOUT: VREF/2,
Regulator for DDR/QDR Memory Termination
IQ: 280μA, ISD: <1μA, TSSOP16E Package
LTC3430
60V, 2.75A (IOUT), 200kHz, High Efficiency Step-Down
90% Efficiency, VIN: 5.5V to 60V, VOUT: 1.2V,
DC/DC Converter
IQ: 2.5mA, ISD: 25μA, TSSOP16E Package
LTC3440/LTC3441
600mA/1A (IOUT), 2MHz/1MHz, Synchronous Buck-Boost
95% Efficiency, VIN: 2.5V to 5.5V, VOUT: 2.5V,
DC/DC Converter
IQ: 25μA/50μA, ISD: <1μA, MS Package
1.5V, 4A Step-Down Regulator at 1MHz, Burst Mode
