EM4056
Copyright
2002, EM Microelectronic-Marin SA
7
www.emmicroelectronic.com

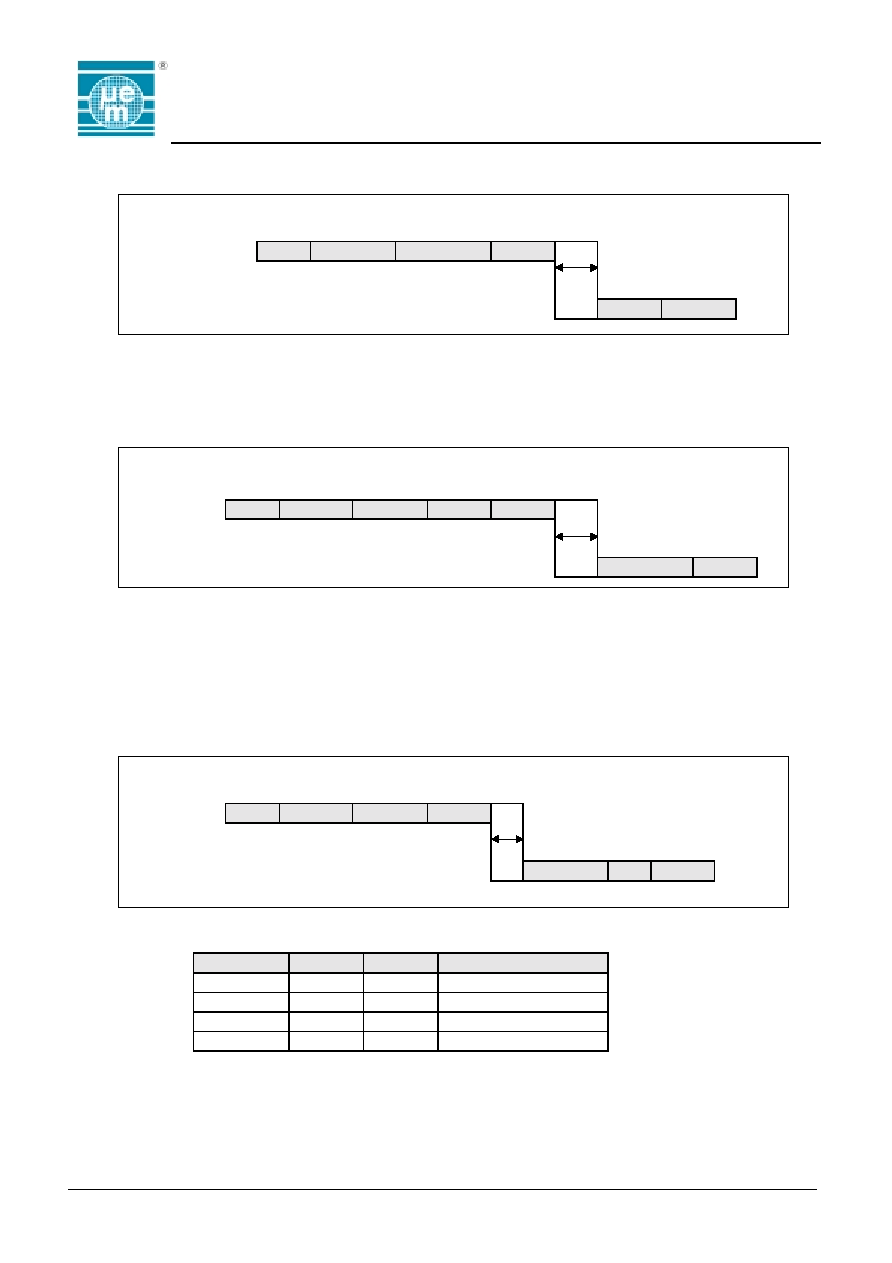

DeselTag
The DeselTag command address a transponder with its 32 bit address (ROM) and reset the flag Select to 0.
1 bit
4 bits
MSB
32 bits
MSB
8 bits
MSB
Reader
Start
DeselTag
ROM
CRC
2 bits
8 bits
MSB
Transponder
tsp
Sel nSel
CRC
Fig. 9
Prot
Prot command for writing the 2 (OTP) protection bit (read and write) at the specified address.
1 bit
4 bits
MSB
8 bits
MSB
2 bits
MSB
8 bits
MSB
Reader
Start
Prot
Address
Wp/Rp
CRC
2 bits
8 bits
MSB
Transponder
twp
WOk nWOk
CRC
Fig. 10
Wp=1, the specified address is protected against writing.
Rp=1, the specified address is protected against reading.
WOk=1, the protection bit has been successfully written to one.
Read
Read command to get a 16-bit word located at the specified address. If the address is read protected, the circuit transmits a
65535 value.
1 bit
4 bits
MSB
8 bits
MSB
8 bits
MSB
Reader
Start
Read
Address
CRC
16 bits
MSB
3 bits
8 bits
MSB
Transponder
trp
Datas
Prot
CRC
Prot = (Wp / Rp / Suc)
Fig. 11
Datas
Rp
Suc
Definition
12345 dec
0
Data = 12345
65535 dec
0
Data = 65535
65535 dec
1
x
Read protected
65535 dec
0
1
Read protected by PIN
Wp=1, the specified address is protected against writing.
Rp=1, the specified address is protected against reading.
Suc=1, the specified address is protected by the PIN against reading.
