DS5001FP
6 of 26
INSTRUCTION SET
The DS5001FP executes an instruction set that is object code-compatible with the industry standard 8051
microcontroller. As a result, software development packages such as assemblers and compilers that have
been written for the 8051 are compatible with the DS5001FP. A complete description of the instruction
set and operation are provided in the
Secure Microcontroller User’s Guide
. Also note that the DS5001FP
is embodied in the DS2251T module. The DS2251T combines the DS5001FP with between 32k and 128k
of SRAM, a lithium cell, and a real-time clock. This is packaged in a 72-pin SIMM module.
MEMORY ORGANIZATION
Figure 2 illustrates the memory map accessed by the DS5001FP. The entire 64k of program and 64k of
data are potentially available to the byte-wide bus. This preserves the I/O ports for application use. The
user controls the portion of memory that is actually mapped to the byte-wide bus by selecting the program
range and data range. Any area not mapped into the NV RAM is reached by the expanded bus on ports 0
and 2. An alternate configuration allows dynamic partitioning of a 64k space as shown in Figure 3.
Selecting PES=1 provides another 64k of potential data storage or memory-mapped peripheral space as
shown in Figure 4. These selections are made using special function registers. The memory map and its
controls are covered in detail in the
Secure Microcontroller User’s Guide
.

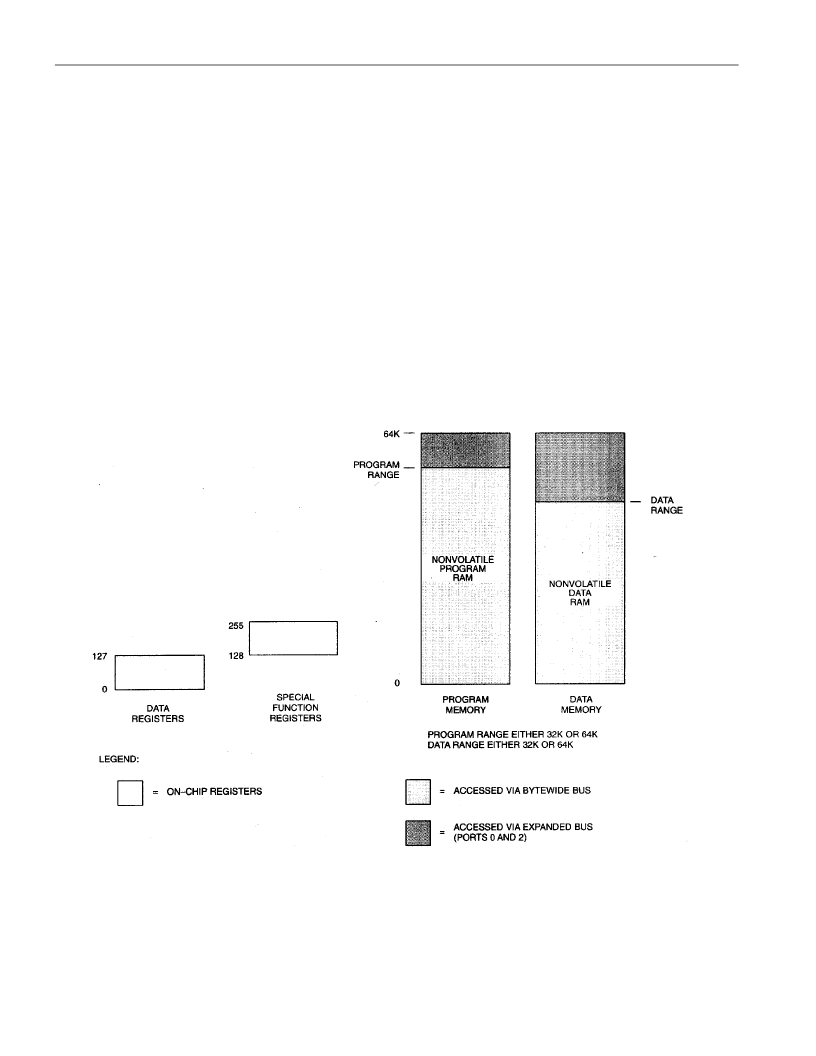

Figure 2. MEMORY MAP IN NONPARTITIONABLE MODE (PM = 1)
