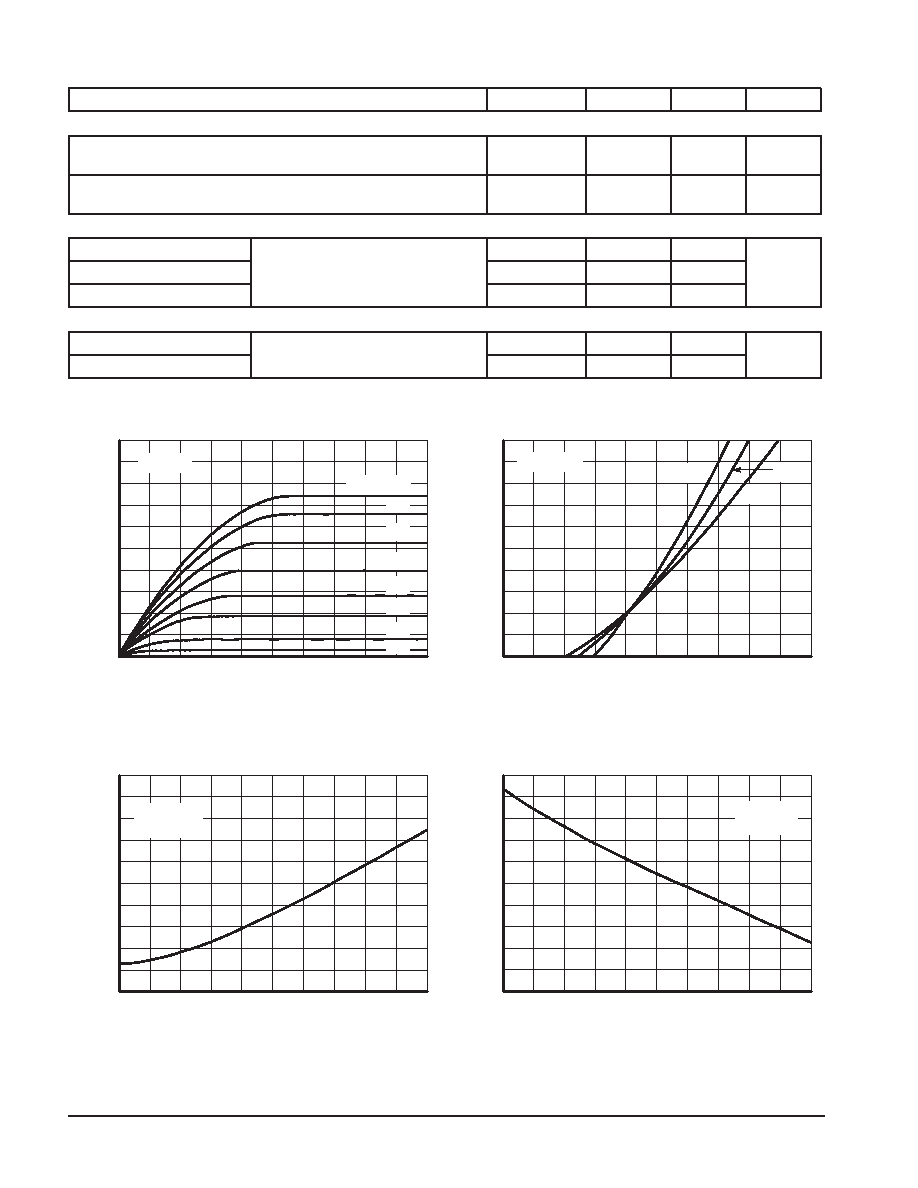

2N7000
4–4
Motorola Small–Signal Transistors, FETs and Diodes Device Data
ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted) (Continued)
Characteristic
Symbol
Min
Max
Unit
ON CHARACTERISTICS(1) (continued)
On–State Drain Current
(VGS = 4.5 Vdc, VDS = 10 Vdc)
Id(on)
75
—
mAdc
Forward Transconductance
(VDS = 10 Vdc, ID = 200 mAdc)
gfs
100
—
mhos
DYNAMIC CHARACTERISTICS
Input Capacitance
(V
25 V V
0
Ciss
—
60
pF
Output Capacitance
(VDS = 25 V, VGS = 0,
f = 1.0 MHz)
Coss
—
25
Reverse Transfer Capacitance
f
1.0 MHz)
Crss
—
5.0
SWITCHING CHARACTERISTICS(1)
Turn–On Delay Time
(VDD = 15 V, ID = 500 mA,
ton
—
10
ns
Turn–Off Delay Time
( DD
D
Rgen = 25 ohms, RL = 25 ohms)
toff
—
10
1. Pulse Test: Pulse Width
≤ 300 s, Duty Cycle ≤ 2.0%.
I D
,DRAIN
CURRENT
(AMPS)
r DS(on)
,ST
A
TIC
DRAIN–SOURCE
ON–RESIST
ANCE
(NORMALIZED)
V
GS(th)
,THRESHOLD
VOL
TAGE
(NORMALIZED)
I D
,DRAIN
CURRENT
(AMPS)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
10
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
VDS, DRAIN SOURCE VOLTAGE (VOLTS)
Figure 1. Ohmic Region
1.0
0.8
0.6
0.4
0.2
10
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
VGS, GATE SOURCE VOLTAGE (VOLTS)
Figure 2. Transfer Characteristics
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
1.2
1.05
1.1
1.10
1.0
0.95
0.9
0.85
0.8
0.75
0.7
– 60
– 20
+ 20
+ 60
+ 100
+ 140
– 60
– 20
+ 20
+ 60
+ 100
+ 140
T, TEMPERATURE (
°C)
Figure 3. Temperature versus Static
Drain–Source On–Resistance
T, TEMPERATURE (
°C)
Figure 4. Temperature versus Gate
Threshold Voltage
TA = 25°C
VGS = 10 V
9 V
8 V
7 V
6 V
4 V
3 V
5 V
VDS = 10 V
–55
°C
25
°C
125
°C
VGS = 10 V
ID = 200 mA
VDS = VGS
ID = 1.0 mA
