XRT73L04A
4 CHANNEL DS3/E3/STS-1 LINE INTERFACE UNIT
REV. 2.0.3
28
2.0
Figure 13 indicates that the Transmit Section within
each Channel of the XRT73L04A consists of the fol-
lowing blocks:
Transmit Logic Block
TxClk_(n) Duty Cycle Adjust Block
HDB3/(B3ZS) Encoder
Pulse Shaping Block
The purpose of the Transmit Section is to take TTL/
CMOS level data from the terminal equipment and
encode it into a format such that it can:
1.
Be efficiently transmitted over coaxial cable at E3,
DS3, or STS-1 data rates.
2.
Be reliably received by the Remote Terminal
Equipment at the other end of the E3, DS3, or
STS-1 data link.
3.
Comply with the applicable pulse template
requirements.
THE TRANSMIT SECTION
2.1
The purpose of the Transmit Logic Block is to accept
either Dual-Rail or Single-Rail (e.g., a binary data
stream) TTL/CMOS level data and timing information
from the Terminal Equipment.
2.1.1
Accepting Dual-Rail Data from the Termi-
nal Equipment
Whenever the XRT73L04A accepts Dual-Rail data
from the Terminal Equipment, it does so via the fol-
lowing input signals:
TPData_(n)
TNData_(n)
TxClk_(n)

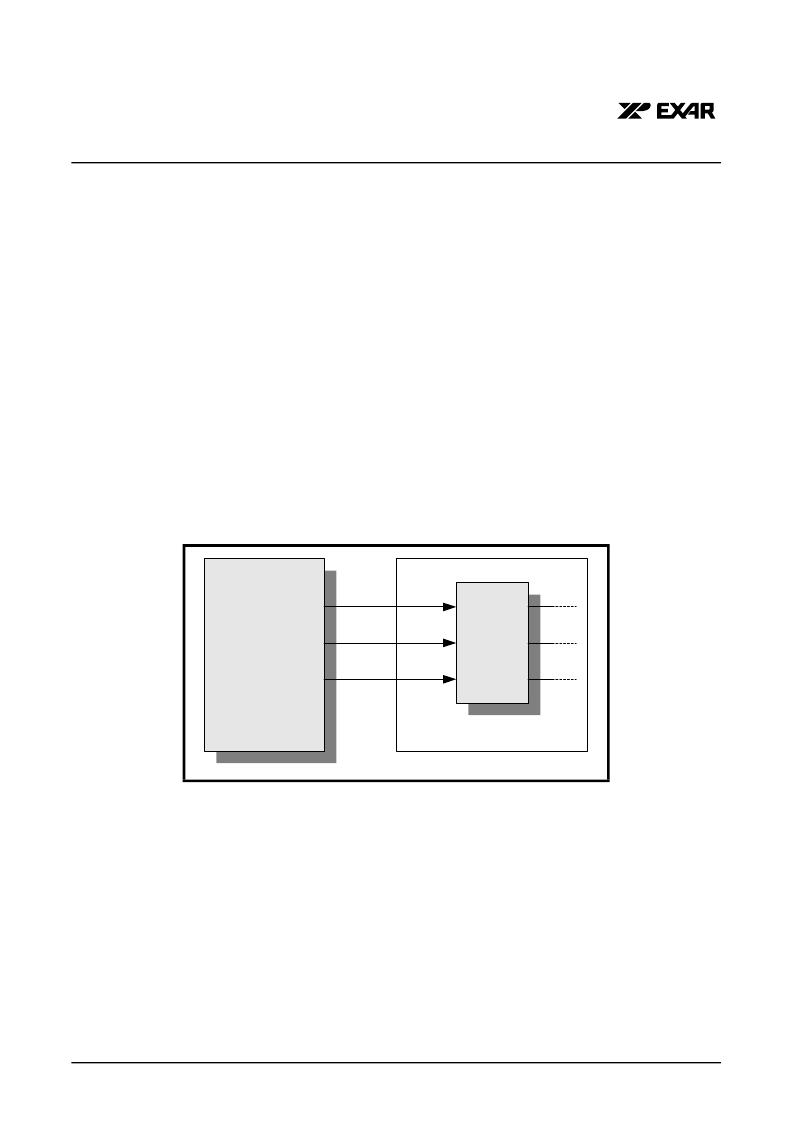

Figure 14 illustrates the typical interface for the trans-
mission of data in a Dual-Rail Format between the
Terminal Equipment and the Transmit Section of the
XRT73L04A.
T
HE
T
RANSMIT
L
OGIC
B
LOCK
The manner that the LIU handles Dual-Rail data is
described below and illustrated in Figure 15. The
Transmit Section (of a Channel) typically samples the
data on the TPData_(n) and TNData_(n) input pins
on the falling edge of TxClk_(n).
F
IGURE
14. T
HE
TYPICAL
INTERFACE
FOR
THE
T
RANSMISSION
OF
D
ATA
IN
A
D
UAL
-R
AIL
F
OR
-
MAT
FROM
THE
T
RANSMITTING
T
ERMINAL
E
QUIPMENT
TO
THE
T
RANSMIT
S
ECTION
OF
A
CHANNEL
Terminal
Equipment
(E3/DS3 or STS-1
Framer)
Exar E3/DS3/STS-1 LIU
Transmit
Logic
Block
TxPOS
TxNEG
TxLineClk
TPData
TNData
TxClk
