ADCS 7283313C
15/44
STV0681
Camera Modes of Operation
3
Camera Modes of Operation
This section refers to the two switches as discussed in section
Section 2.2.1
G
“Mode”: connects GPIO0 pin of STV0681 to GND when pressed
G
“Shutter”: connects GPIO1 pin of STV0681 to GND when pressed
Pressing the mode switch repeatedly cycles through a series of modes as displayed on the LCD.
When a given mode is displayed it may be selected by pressing the shutter button. If an option is not
selected within 5 seconds, the display reverts to showing the number of available pictures.
3.1
Modes available

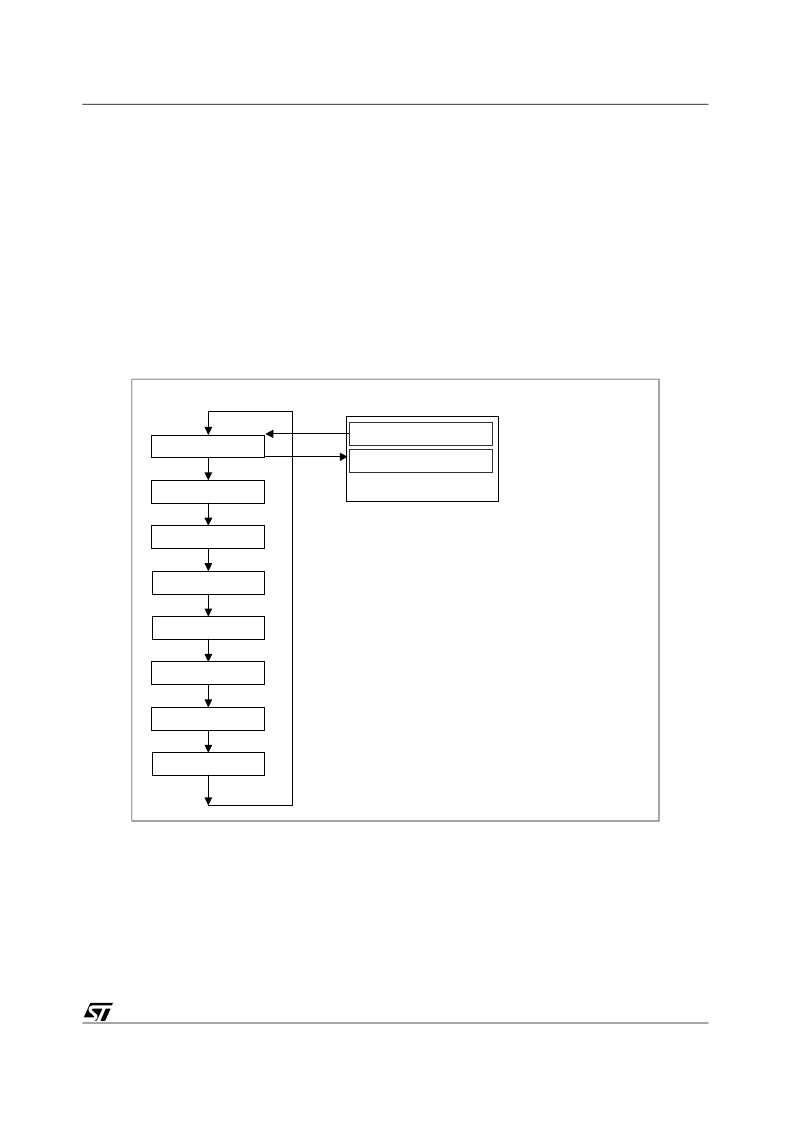

Figure 3: STV0681 modes (CIF camera with 16Mbit SDRAM assumed)
Normal: 20 / 80
Audio Record: Ar
Audio Playback: AP
Delete Last: dA/ dP/ dC
Continuous Capture: Ct
Self-Timer: St
Clear All: CL
Resolution: Hr / Lr
Notes:
1. AudioRecord only availableif audiohardware is fitted
2. AudioPlayback only available once an audiocliphas been recorded
3. DeleteLast displays (only availableif audio hardwarefitted)
dA - if thelast object is an audio clip
dP - if thelast object is a picture
dC- if thelast object is a continuous capture clip
Themodeis inhibitedif thecamerais empty.
4. Continuous Capturemodeis inhibited when theflashgun is enabled
(SW6 down)
Press Mode button
After 30sec of inactivity
Standby mode(untethered)
