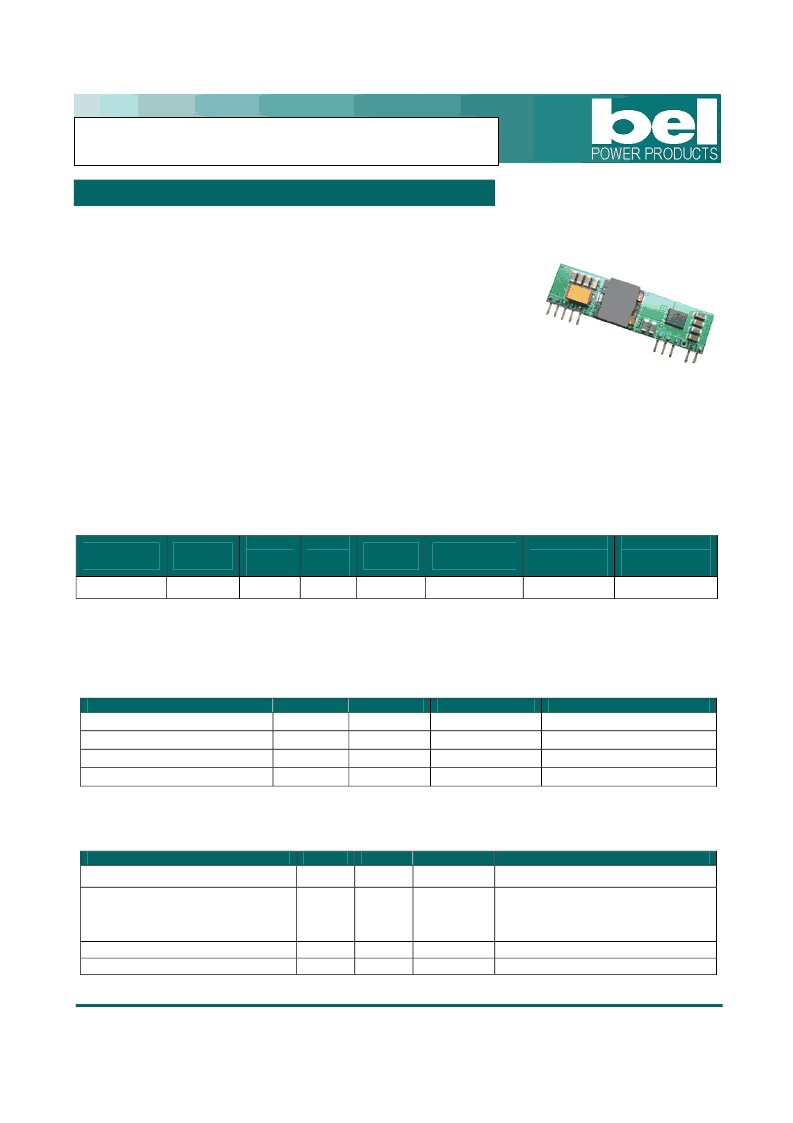

Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
2.4 V - 5.5 V Input
0.75 V - 3.63 V/16A Output
Non-Isolated
High Efficiency
High Power Density
OCP/SCP
Fixed Frequency (300 kHz)
Converter can sink and source
current
Under-voltage Lockout (UVLO)
Over Temperature Protection
Remote Sense
Wide Input
Wide Trim Range
Remote On/Off
Active Low/High (option)
Description
The Bel VRBC-16F1Ax modules are a series of non-isolated dc/dc converters that can deliver up to 16 A of
output current with full load efficiency of 94% at 3.3 V output. These modules provide precisely regulated
voltage programmable via external resistor from 0.75 V to 3.63 V over a wide range of input voltage
(2.4 V -
5.5 V). Their open-frame construction and small footprint enable designers to develop cost and space-efficient
solutions. Standard features include remote ON/OFF, programmable output voltage and over current protection.
Part Selection
Max.
Output
Current
Power
0.75 V-3.63 V
1
2.4 V-5.5 V
16 A
58.1 W
94%
Output
Voltage
Input
Voltage
Max.
Output
Typical
Efficiency
Model Number
Active Low
Model
Number
Active High
VRBC-16F1A0
Model
Number
Active Low
VRBC-16F1AW
2
VRBC-16F1AL
Notes
:
1. These modules use a buck topology, so the output voltages must be 0.8 V less than the input voltage.
2. “W” indicates special coating.
3. Add “G” to the end of the Model Number to indicate Tray Packaging.
Absolute Maximum Ratings
Parameter
Min
Typ
Input Voltage (continuous)
-0.3 V
-
Output Enable Terminal Voltage
-0.3 V
-
Ambient Temperature
-40
°
C
-
Storage Temperature
-55
°
C
-
Max
5.8 V
5.8 V
85
°
C
125
°
C
Notes
Notes
: All specifications are typical at 25
°
C
unless otherwise stated.
Input Specifications
Parameter
Input Voltage
Input Current (full load)
Vo=3.3 V
Vo=1.8 V
Vo=0.75 V
Input Current (no load)
Remote Off Input Current
Min
2.4 V
-
-
-
-
-
Typ
-
11.23 A
6.47 A
3.08 A
80 mA
10 mA
Max
5.5 V
12.89 A
13.55 A
6.67 A
-
22 mA
Notes
Vo, set
≤
Vin-0.8 V
VRBC-16F1Ax Series
RoHS Compliant
