57
μ
PD17006AGF-011

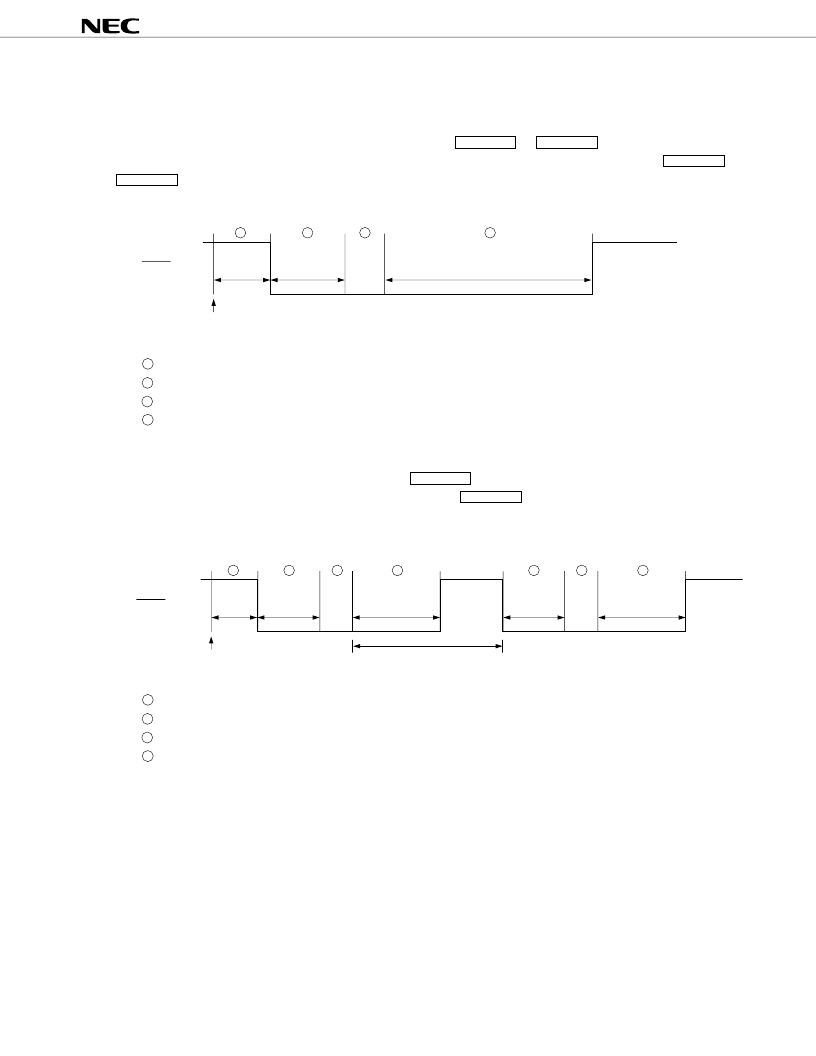

7. MUTE OUTPUT TIMING CHART
7.1 Preset Memory Read
The specified preset memory is read when any of the
than 2 seconds while in tuner mode with initial setting diode MESEL = 0, or when any of the
keys is pressed in a mode other than memory write enable mode with MESEL = 1.
A mute timing diagram showing the preset memory read operation is given below.
M1
to
M5
keys is pressed for less
M1
to
M5
1 : Key ON chattering prevention (key OFF time when MESEL = 0)
2 : Leading mute
3 : Division ratio setting
4 : Trailing mute
7.2 Preset Scan
The preset scan operation is started when the
PSCAN/ASM
key is pressed for less than 2 seconds in the
tuner mode with initial setting diode FUNC = 0, or when the
with FUNC = 1.
A mute timing diagram showing the preset scan operation is given below.
M1
key is pressed for less than 2 seconds
1 : Key ON chattering prevention
2 : Leading mute
3 : Division ratio setting
4 : Trailing mute
1
2
3
4
30 ms
50 ms
400 - 500 ms
Key ON
MUTE Pin
1
2
4
30 ms
50 ms
400 - 500 ms
Key OFF
MUTE Pin
4
400 - 500 ms
3
2
50 ms
3
5 sec
