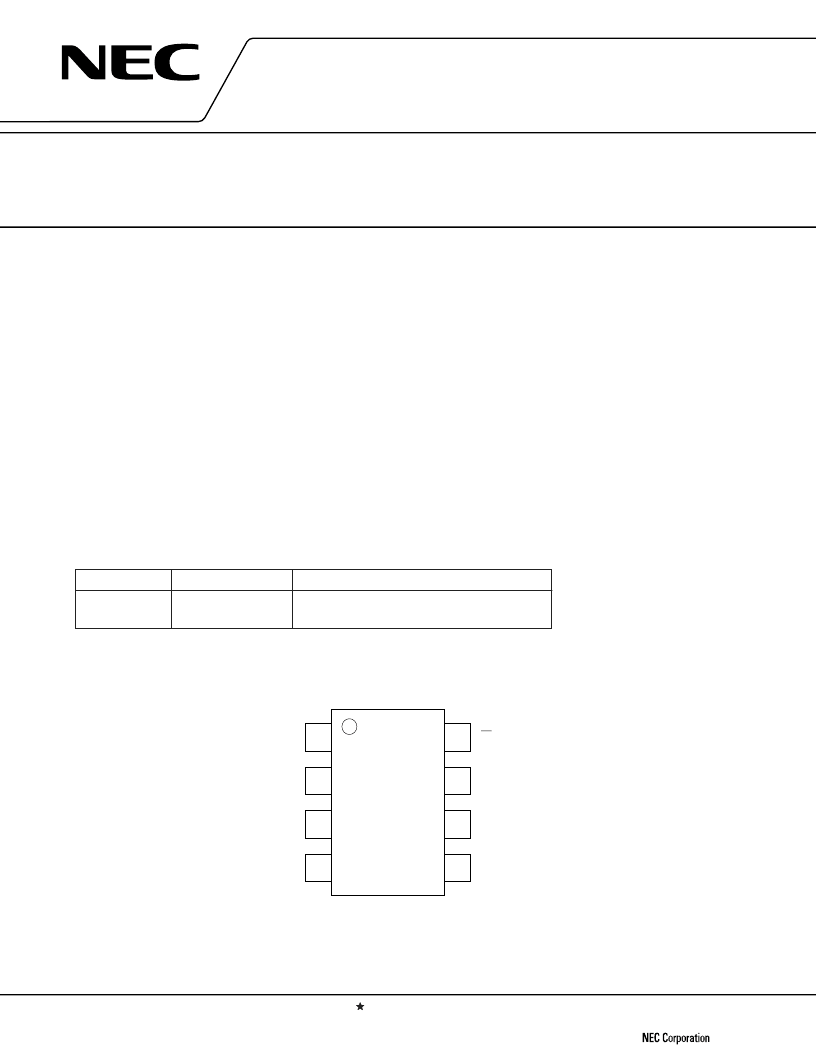

1996,1999
DATA SHEET
BIPOLAR DIGITAL INTEGRATED CIRCUIT
μ
PB1505GR
DESCRIPTION
μ
PB1505GR is a silicon prescaler IC operating up to 3.0 GHz and divided by 256, 128, 64. Due to 3.0 GHz operation and
high division, this IC can contribute to produce BS/CS tuners with kit-use of 17K series DTS controller or standard CMOS
PLL IC. The package is 8 pin plastic SOP suitable for surface mounting.
This IC is manufactured using NEC’s 20 GHz f
T
NESAT
III
silicon bipolar process. This process uses silicon nitride
passivation film and gold electrodes. These materials can protect the chips from external pollution and prevent corrosion/
migration. Thus, this IC has with excellent performance, uniformity and reliability.
FEATURES
High toggle-frequency : 0.5 GHz to 3.0 GHz
Low power-consumption : 14 mA
TYP.
at 5 V
High divide-ratio :
÷
256,
÷
128,
÷
64
High input-sensitivity : –14 to +10 dBm @ 1.0 GHz to 2.7 GHz
Wide output-swing : 1.6 V
p-p
(C
L
= 8 pF load)
ORDERING INFORMATION
3.0 GHz PRESCALER DIVIDED BY 256, 128, 64
FOR BS/CS TUNER
PART NUMBER
PACKAGE
SUPPLYING FORM
μ
PB1505GR-E1
8 pin plastic SOP
Embossed tape 12 mm wide. QTY 2.5 k/reel
(225 mil)
Pin 1 is in tape pull-out direction.
Document No. P10872EJ3V0DS00 (3rd edition)
Date Published October 1999 N CP(K)
Printed in Japan
Remarks
To order evaluation samples, please contact your local NEC sales office. (Order number :
μ
PB1505GR)
PIN ASSIGNMENT (Top View)
Caution electro-static sensitive devices
1
2
3
4
8
7
6
5
IN
V
CC
SW1
OUT
IN
GND
SW2
GND
The mark shows major revised points.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
