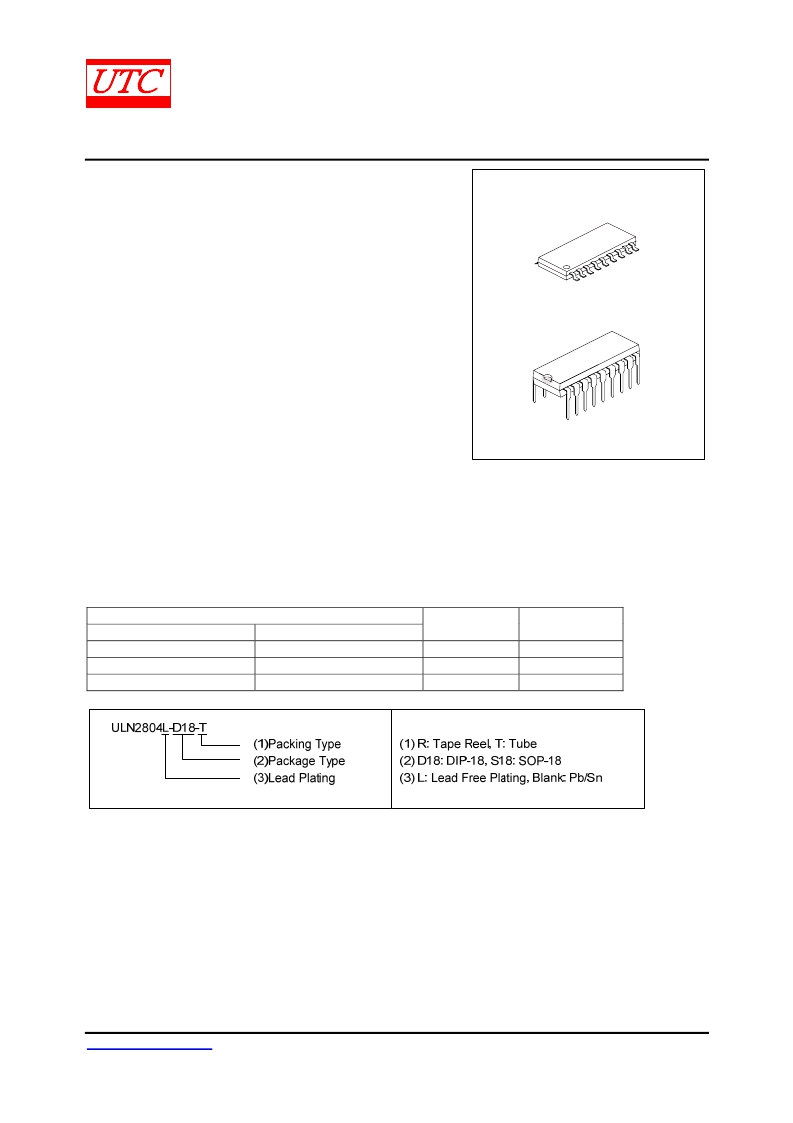

UNISONIC TECHNOLOGIES CO,
LTD
ULN2804
LINEAR INTEGRATED CIRCUIT
www.unisonic.com.tw
Copyright 2005 Unisonic Technologies Co., Ltd
1 of 5
QW-R113-002,A
EIGHT HIGH V OLT AGE, HIGH
CURRENT DARLINGT ON
ARRAY S
DES CRIPT ION
The
ULN2804
is a high voltage, high current Darlington array
comprised of eight NPN Darlington pairs. The device features
open-collector outputs with suppression diodes for inductive loads
and is ideally suited for interfacing between low-level logic circuitry
and high power loads. Typical loads including relays DC motors,
filament lamps, LED displays, printer hammers and high power
buffers.
FEAT URE
* Eight Darlingtons with common emitters
* TTL, PMOS or CMOS Compatible inputs
* Peak output current to 500mA
* Output voltage to 50V
* Clamp diodes for transient suppression
DIP-18
SOP-18
*Pb-free plating product number: ULN2804L
ORDERING INFORMAT ION
Order Number
Normal
Lead Free Plating
ULN2804L-D18-T
ULN2804L-S18-R
ULN2804L-S18-T
Package
Packing
ULN2804-D18-T
ULN2804-S18-R
ULN2804-S18-T
DIP-18
SOP-18
SOP-18
Tube
Tape Reel
Tube
