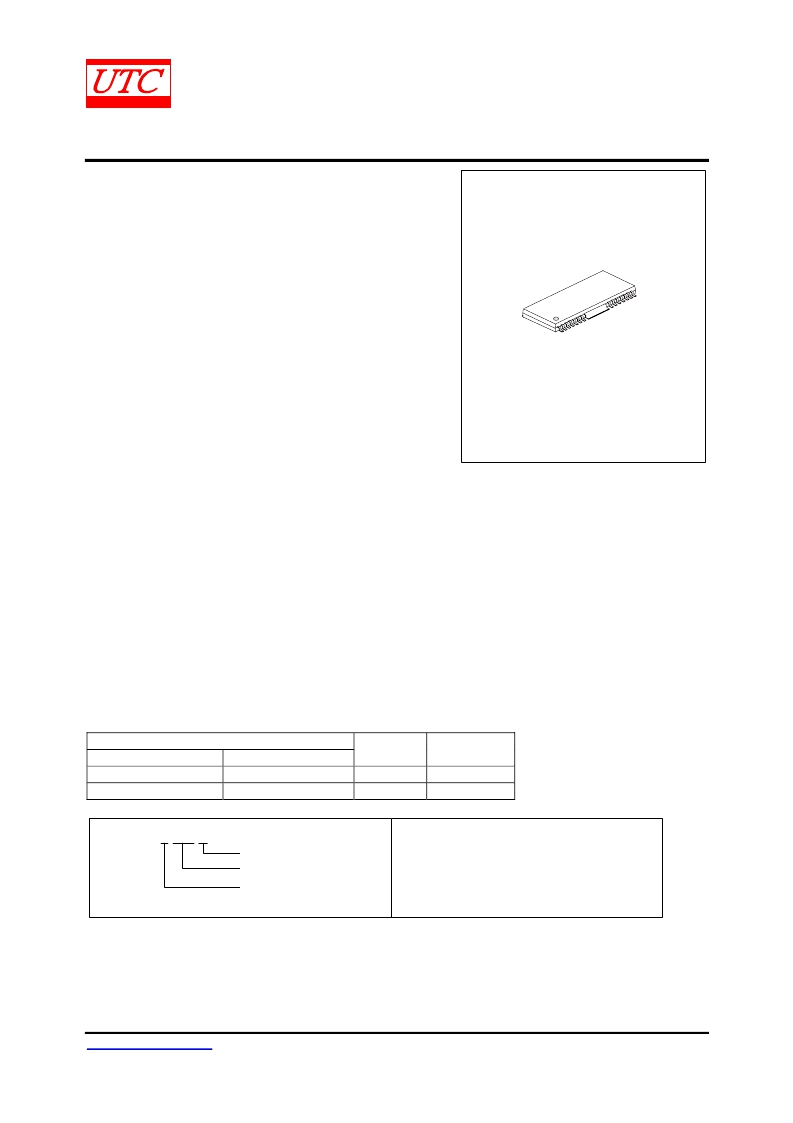

UNISONIC TECHNOLOGIES CO, LTD
UA8888S
LINEAR INTEGRATED CIRCUIT
www.unisonic.com.tw
Copyright 2005 Unisonic Technologies Co., Ltd
1 of 8
QW-R109-015,B
5-CHANNEL BT L DRIV ER FOR
DV D PLAY ER
DES CRIPT ION
The UTC
UA8888S
is a 5-channel BTL driver IC for DVD player.
It is developed to driving the motors and actuators and consists of
two independent precision voltage regulators with adjustable range
from 1.5V~4V.
FEAT URES
* Voltage-type BTL drivers:
- two channels : actuators of tracking and focus
- two channels : sled and spindle motors.
- one channel : bi-direction DC motor driver for tray.
* Wide dynamic range:
9.0V (typ.) when V
CC
1= V
CC
2= 12V, at R
L
= 20
load.
4.0V (typ.) when V
CC
1=12V,V
CC
2=5V,at R
L
=15
load
* Separating power of V
CC
1 and V
CC
2 is to improve power
efficiency by a low supply voltage for tracking, focus, and spindle.
* Built-in level shift circuit and mute mode.
* Thermal shutdown protection.
* Differential inputs for signal addition are provided by input OPs.
The output structure for dual actuator driver is two power OP
Amps in bridge configuration, and one OP Amp for Sled Motor
Driver.
* Spindle driver is a single input linear BTL driver. The output
structure is two power OP Amps in bridge configuration.
* Tray in-out driver functions as a DC motor driver supports
forward/reverse control for tray motor.
* Built-in regulator controllers: Adjustable range 1.5V ~ 4V
HSOP-28
*Pb-free plating product number: UA8888SL
ORDERING INFORMAT ION
Ordering Number
Normal
UA8888S-SH1-R
UA8888S-SH1-T
Lead Free Plating
UA8888SL-SH1-R
UA8888SL-SH1-T
Package
Packing
HSOP-28
HSOP-28
Tape Reel
Tube
UA8888SL-SH1-R
(1)Packing Type
(2)Package Type
(3)Lead Plating
(1) R: Tape Reel, T: Tube
(2) SH1: HSOP-28
(3) L: Lead Free Plating, Blank: Pb/Sn
