U4476B
Preliminary Information
TELEFUNKEN Semiconductors
Rev. A2, 15-Jan-98
1 (7)
IF Amplifier / Converter for DVB (Cable)
Description
The U4476B is a bipolar circuit for the processing of
DVB-Cable IF signals (
D
igital
V
ideo
B
roadcasting). The
amplifier/ converter is suitable for QAM modulated IF
signals (1st IF) and provides the gain controlled 2nd IF.
With 5 V supply voltage the IC allows application in
RF/IF front ends for DVB-Cable receivers (set top boxes).
Features
Gain controlled amplifier for the 1st IF (36 MHz)
IF converter for the 2nd IF (7 MHz);
VCO circuit is controlled by external PLL
Bandwidth of the output signal: 10 MHz (–1 dB)
Internal AGC with average detection for the QAM
modulated DVB signal, reference level is adjustable
5 V supply voltage; low-power consumption
Package:
28-pin small outline plastic package (SO28)

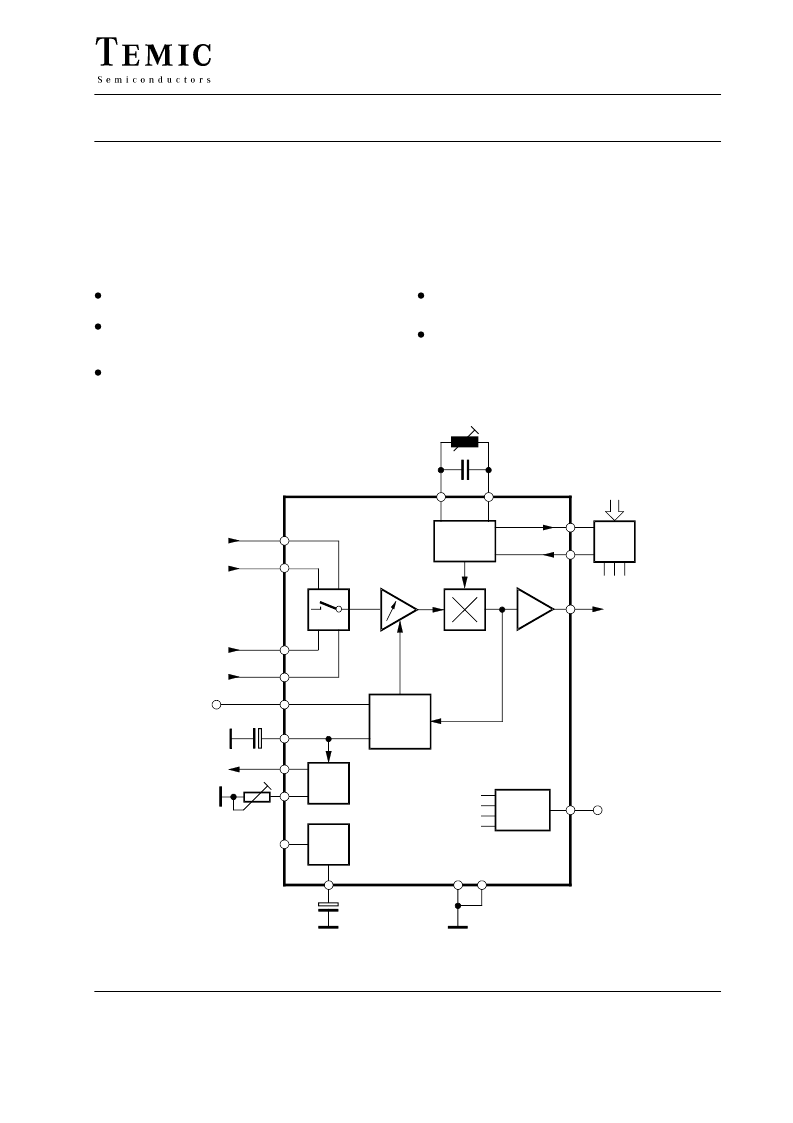

Block Diagram
Tuner
AGC
Band
Gap
Control
AGC:
QAM
VCO
PLL
I
2
C
IF 2
Tuner
V
S
2nd IF
Input
select
12703
5
6
9
10
Ref
(DVB)
7
12
11
24
3
8
21
23
22
20
18
13
15
28
IF 1
Figure 1. Block diagram
