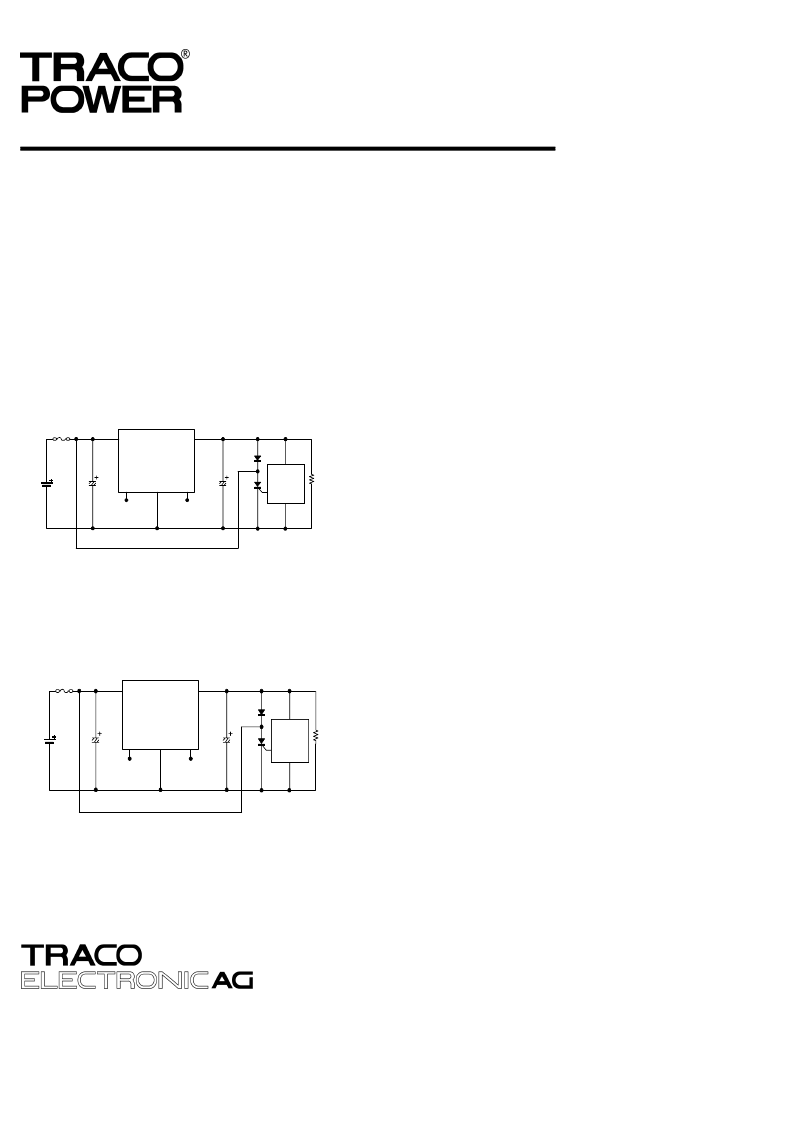

TSI 15N Series
Soldering Conditions
Solder to be executed under the following conditions.
1. Hand soldering
340°C ~ 360°C, 5sec.max
2. Flow soldering
230°C ~ 260°C, 10sec.max.
Reverse Input Voltage Protection
The input/output of this products is a non-isolated type and a step-down
DC-DC converter from (+) polarity to (+) polarity. If you connect the input
polarity reversed of this product by mistake it will be eventually damaged.
If there is a possibility of reverse connection, please add a protection
circuit as indicated in the following figure. The figure below is an example
using fuse and diode.
(Figure 14)
Over-Voltage Protection
This product does not have a built-in over-voltage protection.
When the switching element of this converter gets damaged by short
mode, input voltage (+Vin) will go out on the output.
For emergency if it gets damaged at over-voltage mode, please add
a circuit as below to intercept the supplying power circuit.
(Figure 15)
Jenatschstrasse 1 CH-8002 Zurich Switzerland
Tel. +41-1284 2911 Fax +41-1201 1168 e-mail: sales @ traco.ch internet: http://www.tracopower.com
6
2
4
+Vout
BS
TSI 15N
+Vin
V.
on/off
1
5
8
12
9
11
FUSE
+Vin
C1
Load
SCR
Over
Voltage
Detection
Circuit
C
GND
2
4
+Vout
BS
+Vin
V.
on/off
1
5
8
12
9
11
FUSE
+Vin
C1
Load
SCR
Over-
Voltage
Detection
Circuit
C2
GND
T entative
TSI 15N
