STEP-DOWN CONVERTER
Soft Start
Short Circuit Protection
PVIN
Regulator
8V
Sawtooth
Generator
Compensation
and
Softstart
Vref
Logic
Clock
500/750 kHz
Clock/2
Clock/4
0.9V
0.6V
Clockselectforshortcircuit
andsoftstart
ControlLogic
SWB
BOOT
FBB
Error Amplifier
Q3
SWB
Clock
Currentlimit
SLVS771B – MAY 2007 – REVISED JUNE 2008 ............................................................................................................................................................... www.ti.com
The TPS65162 step down converter block is shown in Figure 26. The non-synchronous step down converter
operates at a fixed switching frequency using a fast response voltage mode topology with input voltage
feedforward. This topology allows simple internal compensation and it is designed to operate with ceramic output
capacitors. The converter drives an internal 2.8 A N-Channel MOSFET switch. The MOSFET driver is referenced
to the switch pin SWB. The N-Channel MOSFET requires a gate drive voltage higher than the switch pin to turn
the N-Channel MOSFET on. This is accomplished by a boost strap gate drive circuit running of the step down
converter switch pin. When the switch pin SWB is at ground the boot strap capacitor is charged to 8 V. This way
the N-Channel Gate drive voltage is typically around 8 V.
To avoid high inrush current during startup, an internal soft-start is implemented. When the step down converter
is enabled over EN1, its reference voltage slowly rises from zero to its power good threshold of typically 90% of
Vref. When the reference voltage reaches this power good threshold, the Error amplifier is released to its normal
operation with its normal duty cycle. To further limit the inrush current during soft-start the converter frequency is
set to 1/4 of the switching frequency s and 1/2 of s by the comparator that monitors the feedback voltage. refer
to the internal block diagram. The typical soft-start is typically completed within 1ms.
To limit the short circuit current, the device has a cycle-by-cycle current limit. To prevent the short-circuit current
from rising above the internal current limit when the output is shorted to GND, the switching frequency is reduced
as well. This is implemented by two comparators monitoring the feedback voltage. The step-down converter
switching frequency is reduced to 1/2 of fs when the feedback is below 0.9 V, and 1/4 of the switching
frequency when the feedback voltage is below 0.6 V.

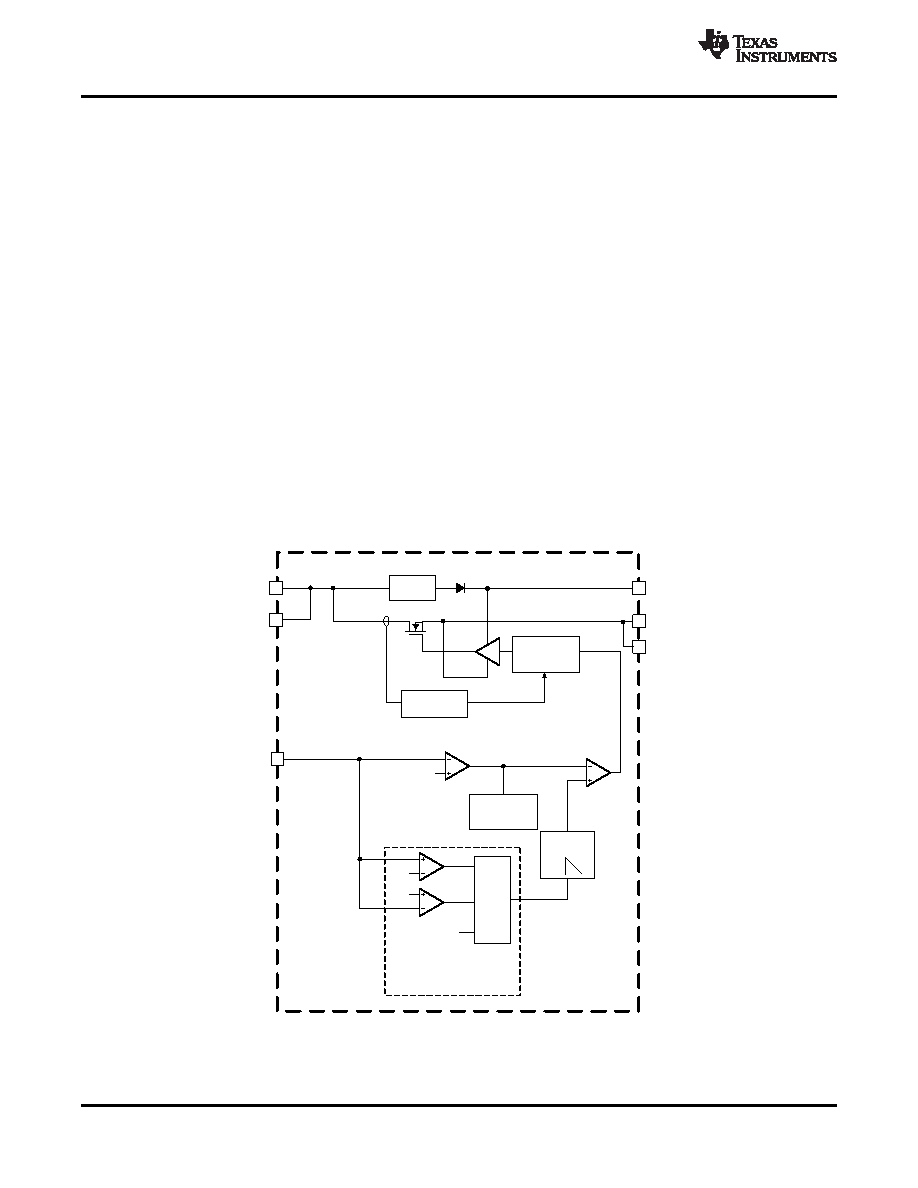

Figure 26. Step Down Converter Block TPS65162
24
Copyright 2007–2008, Texas Instruments Incorporated
Product Folder Link(s): TPS65162
