1
FEATURES
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
INP
INN
SHUTDOWN
GAIN0
GAIN1
PVDD
OUTP
PGND
BYPASS
AGND
COSC
ROSC
VDD
PVDD
OUTN
PGND

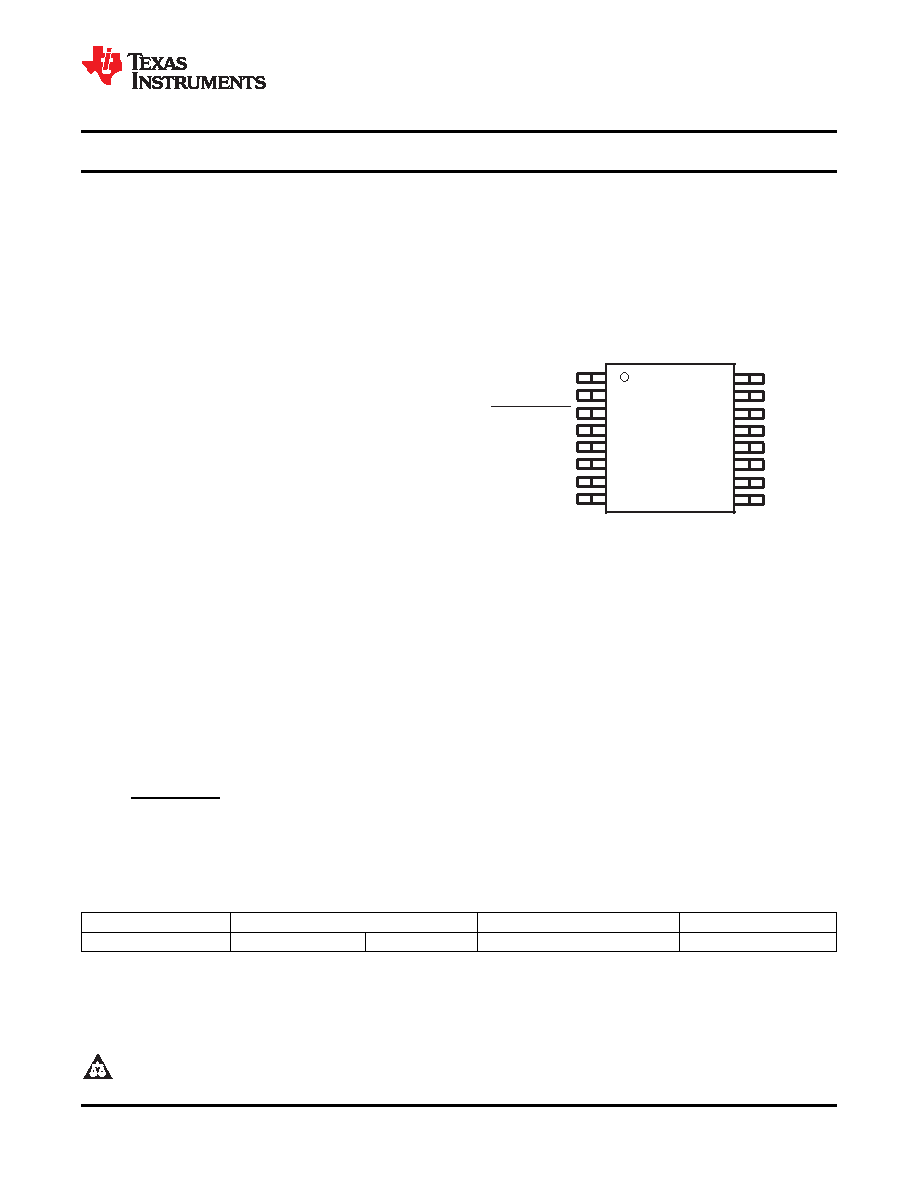

PW PACKAGE
(TOP VIEW)
DESCRIPTION/ORDERING INFORMATION
www.ti.com ........................................................................................................................................ SGLS137E – SEPTEMBER 2002 – REVISED OCTOBER 2008
2-W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER
2
Qualified for Automotive Applications
2 W Into a 4- Speaker (THD+N<1%)
ESD Protection Exceeds 2000 V Per
<0.2% THD+N at 1.5 W, 1 kHz, Into a 4- Load
MIL-STD-883, Method 3015; Exceeds 200 V
Integrated Depop Circuitry
Using Machine Model (C = 200 pF, R = 0)
Short-Circuit Protection (Short to PV
DD,
Modulation Scheme Optimized to Operate
Ground, and Load)
Without a Filter
Extremely Efficient Third-Generation 5-V
Class-D Technology:
–
Low Supply Current (No Filter) . . . 4 mA
–
Low Supply Current (Filter) . . . 7.5 mA
–
Low Shutdown Current . . . 0.05
A
–
Low-Noise Floor . . . 40
V
RMS
(No-Weighting Filter)
–
Maximum Efficiency Into 8
, 75 – 85%
–
Four Internal Gain Settings . . . 6 – 23.5 dB
–
PSSR . . . –77 dB
4 mm × 4 mm MicroStar Junior BGA and
TSSOP Package Options
The TPA2000D1 is a 2-W mono bridge-tied-load (BTL) class-D amplifier designed to drive a speaker with at least
4-
impedance. The amplifier uses Texas Instruments third-generation modulation technique, which results in
improved efficiency and SNR. It also allows the device to be connected directly to the speaker without the use of
the LC output filter commonly associated with class-D amplifiers (this results in EMI which must be shielded at
the system level). These features make the device ideal for use in devices where high efficiency is needed to
extend battery run time.
The gain of the amplifier is controlled by two input terminals, GAIN1 and GAIN0. This allows the amplifier to be
configured for a gain of 6, 12, 18, and 23.5 dB. The differential input terminals are high-impedance CMOS inputs
and can be used as summing nodes.
The class-D BTL amplifier includes depop circuitry to reduce the amount of turnon pop at power up and when
cycling SHUTDOWN.
The TPA2000D1 is available in the 16-pin TSSOP and MicroStar Junior BGA packages and drive 2 W of
continuous output power into a 4-
load. The TPA2000D1T operates over an ambient temperature range of
–40°C to 105°C.
ORDERING INFORMATION(1)
TA
PACKAGE(2)
ORDERABLE PART NUMBER
TOP-SIDE MARKING
–40°C to 105°C
TSSOP – PW
Tape and reel
TPA2000D1TPWRQ1
20001T
(1)
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2)
Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2
MicroStar is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright 2002–2008, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
