TOSHIBA
TOSHIBA CORPORATION
1/18
TLCS-90 Series
TMP90P800
The information contained here is subject to change without notice.
The information contained herein is presented only as guide for the applications of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties
which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of TOSHIBA or others. These TOSHIBA products are intended for usage in general electronic
equipments (office equipment, communication equipment, measuring equipment, domestic electrification, etc.) Please make sure that you consult with us before you use these TOSHIBA products in equip-
ments which require high quality and/or reliability, and in equipments which could have major impact to the welfare of human life (atomic energy control, spaceship, traffic signal, combustion control, all types
of safety devices, etc.). TOSHIBA cannot accept liability to any damage which may occur in case these TOSHIBA products were used in the mentioned equipments without prior consultation with TOSHIBA.
CMOS 8–Bit Microcontrollers
TMP90P800N/TMP90P800F
1. Outline and Characteristics
The TMP90P800 is a system evaluation LSI having a built in
One-Time PROM for TMP90C400/800.
A programming and verification for internal PROM is
achieved by using a general EPROM programmer with an
adapter socket.
The function of this device is exactly same as the
TMP90C400 by programming to the internal PROM.
The differences between TMP90P800 and TMP90C400
are the memory size (ROM/RAM).

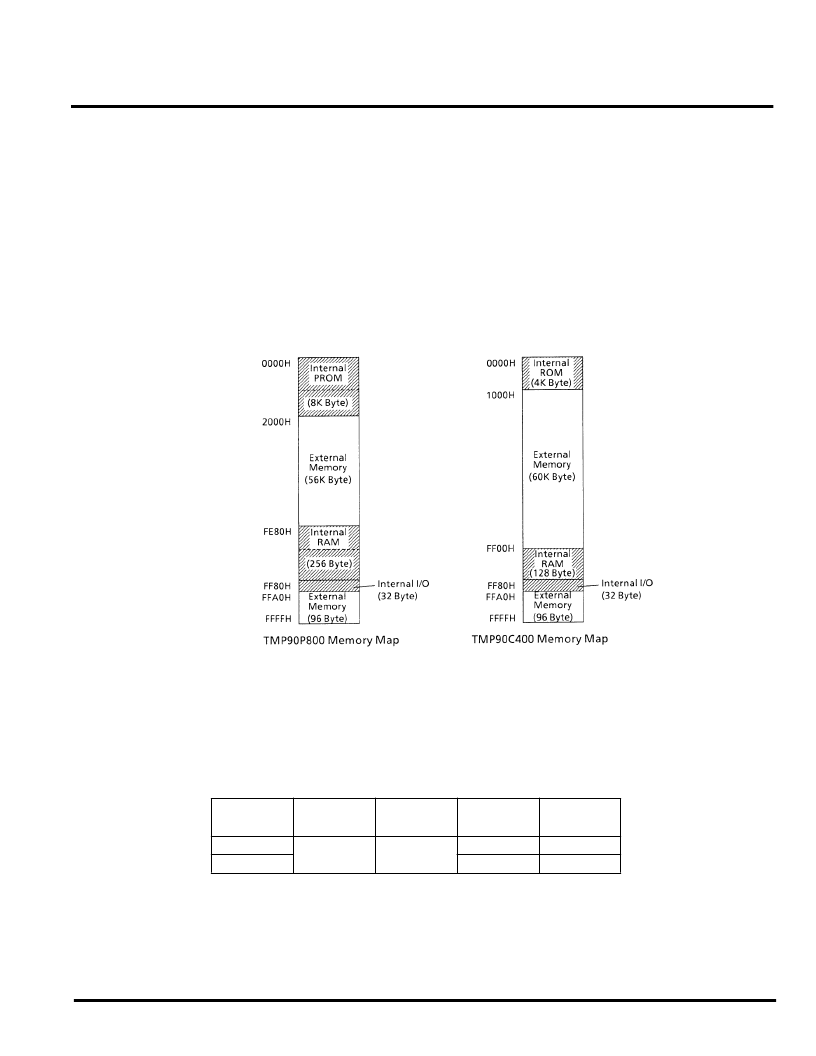

The following are the memory map of TMP90P800 and
TMP90C400.
The TMP90P800N is in a Shrink Dual Inline Package
(SDIP64-P-750).
The TMP90P800F is in a Quad Flat Package (QFP64-P-
1420A).
Parts No.
ROM
RAM
Package
Adapter Socket
No.
TMP90P800N
OTP
8192 x 8bit
256 x 8bit
64-SDIP
BM1142
TMP90P800F
64-FP
BM1147
