Page 12
January 1999 TOKO, Inc.
TK75001
TK75001 OFF-LINE APPLICATION EXAMPLE
Figure 8 shows an off-line, universal input, 12 W power supply. The TK75001 is the controller IC for a flyback converter
with self-bias and constant-frequency, current-mode control. The TK75001 drives the MOSFET directly to switch the
flyback transformer. Feedback is accomplished by means of a TL431, configured as a secondary side error amplifier and
voltage reference, driving an opto-coupler for isolation.

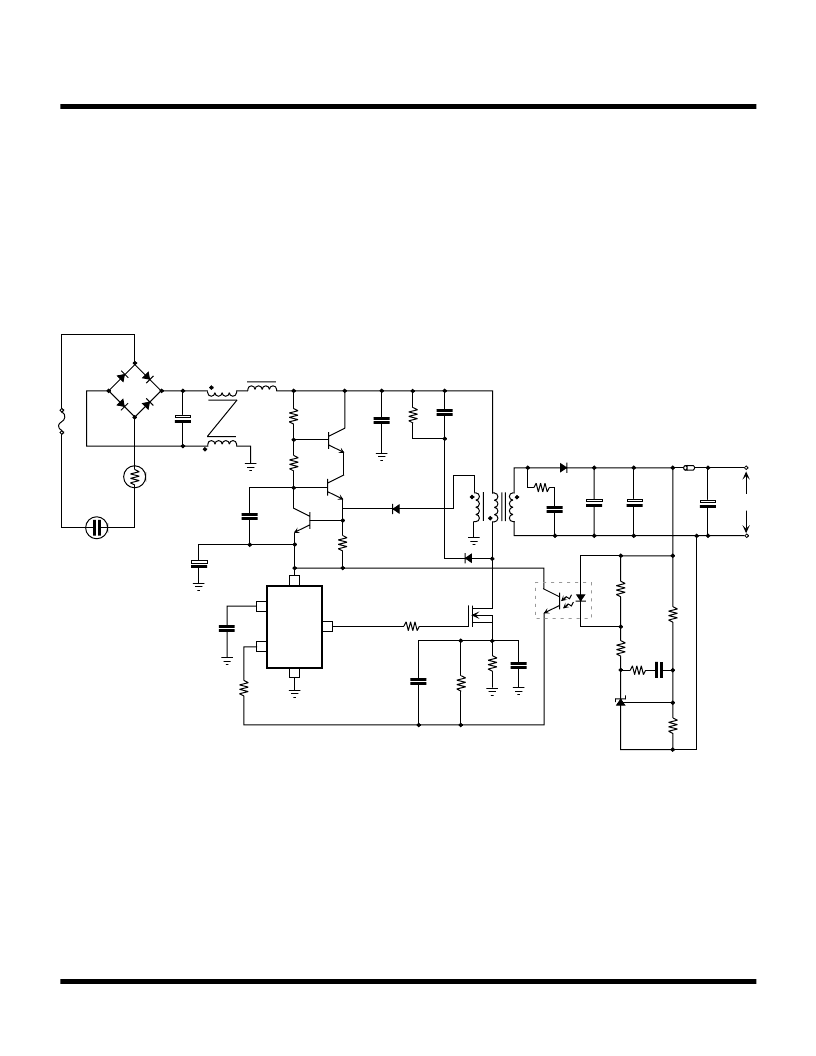

FIGURE 8: OFF-LINE, UNIVERSAL INPUT, 12-WATT POWER SUPPLY
APPLICATION INFORMATION (CONT.)
n2
0.1.2
+
+
RB155
GND
VCC
CT
FB
DRV
220 pF
+
22 μF
RM4
0.2 A
01 M
01 M
K16
47-440 Hz
25 V
0.01 μF
1.8 k
0.047 μF
220
250 V
15
IRFRC20
11%
316 V
316 V
25V
FMMTA42
FMMTA42
400 V
24 k
0400 V
n3
n1
AL250
100
100 V
6CWF20F
n1 = 31, AWG28
BYV26CPH
1N4148
470
41%
470
0.01 μF
4.7 k
TL431
CNY17-2
+
620
FMMT2222A
+
2 A
FBEAD
1 A
TK75001
