1/13
April 2004
TDA1175P
LOW-NOISE VERTICAL DEFLECTION SYSTEM
REV. 2
FEATURES SUMMARY
■ COMPLETE VERTICAL DEFLECTION
SYSTEM
■ LOW NOISE
■ SUITABLE FOR HIGH DEFINITION
MONITORS
■ ESD PROTECTED
DESCRIPTION
The TDA1175P is a monolithic integrated circuit in
POWERDIP16 plastic package. It is intended for
use in black and white and colour TV receivers.
Low-noise makes this device particularly suitable
for use in monitors.
The functions incorporated are: synchronization
circuit, oscillator and ramp generator, high power
gain amplifier, flyback generator, voltage regula-
tor.

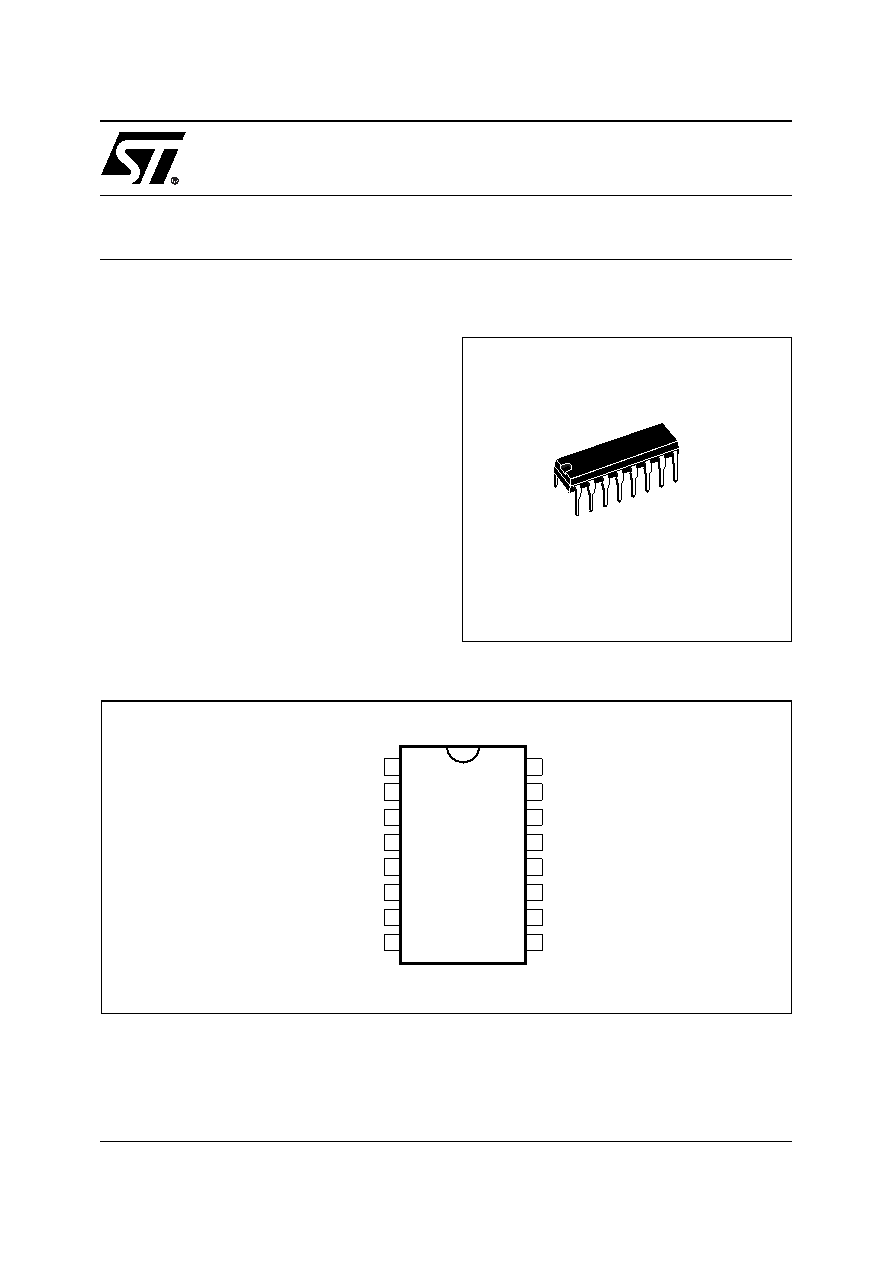

Figure 1. Package
Figure 2. Pin Connections
POWERDIP16
(Plastic Package)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
RAMP GENERATOR
COMPENSATION
AMP. INPUT
GROUND
OSCILLATOR
SYNC. INPUT
HEIGHT ADJUSTMENT
RAMP OUTPUT
SUPPLY VOLTAGE
FLYBACK
GROUND
POWER AMPLIFIER OUTPUT
POWER AMPLIFIER
SUPPLY VOLTAGE
REGULATED VOLTAGE
