TC7660
CHARGE PUMP DC-TO-DC VOLTAGE CONVERTER
FEATURES
Converts +5V Logic Supply to
±
5V System
I
Wide Input Voltage Range ....................1.5V to 10V
I
Efficient Voltage Conversion.........................99.9%
I
Excellent Power Efficiency ...............................98%
I
Low Power Supply...............................80
μ
A @ 5V
IN
I
Low Cost and Easy to Use
— Only Two External Capacitors Required
I
RS232 Negative Power Supply
I
Available in Small Outline (SO) Package
I
Improved ESD Protection ....................... Up to 3kV
I
No Dx Diode Required for High Voltage Operation
I
GENERAL DESCRIPTION
The TC7660 is a pin-compatible replacement for the
Industry standard TC7660 charge pump voltage converter.
It converts a +1.5V to +10V input to a corresponding – 1.5V
to – 10V output using only two low-cost capacitors, eliminat-
ing inductors and their associated cost, size and EMI.
The on-board oscillator operates at a nominal fre-
quency of 10kHz. Operation below 10kHz (for lower supply
current applications) is possible by connecting an external
capacitor from OSC to ground (with pin 1 open).
The TC7660 is available in both 8-pin DIP and 8-pin
SOIC packages in commercial and extended temperature
ranges.
ORDERING INFORMATION
Temperature
Range
Part No.
Package
TC7660COA
TC7660CPA
TC7660EOA
TC7660EPA
TC7660IJA
TC7660MJA
TC7660EV
8-Pin SOIC
8-Pin Plastic DIP
8-Pin SOIC
8-Pin Plastic DIP
8-Pin CerDIP
8-Pin CerDIP
Evaluation Kit for
Charge Pump Family
0
°
C to +70
°
C
0
°
C to +70
°
C
– 40
°
C to +85
°
C
– 40
°
C to +85
°
C
– 40
°
C to +85
°
C
– 55
°
C to +125
°
C

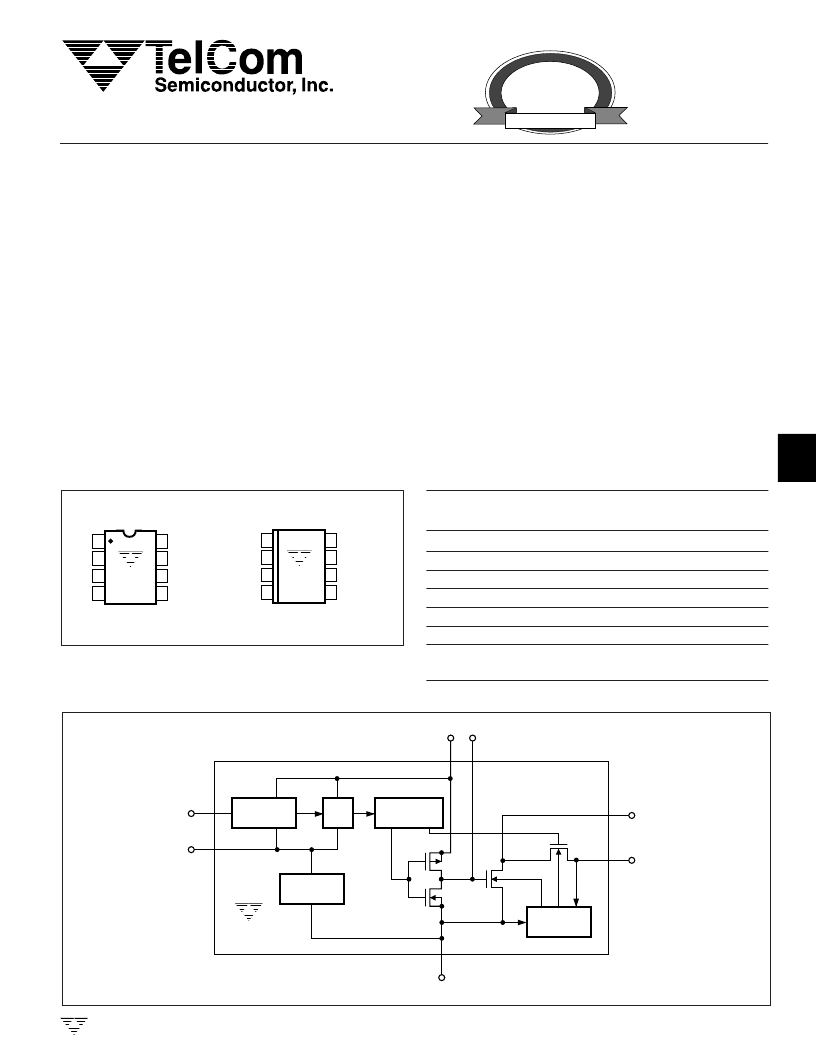

FUNCTIONAL BLOCK DIAGRAM
1
2
3
4
8
7
6
5
TC7660CPA
TC7660EPA
TC7660IJA
NC
CAP+
GND
CAP–
NC
CAP+
GND
CAP–
VOUT
LOW
OSC
+
V
VOUT
LOW
VOLTAGE (LV)
OSC
+
V
NC = NO INTERNAL CONNECTION
1
2
3
4
8
7
6
5
TC7660COA
TC7660CPA
TC7660
GND
INTERNAL
VOLTAGE
REGULATOR
RC
OSCILLATOR
VOLTAGE–
LEVEL
TRANSLATOR
÷
2
V+CAP+
8
2
7
6
OSC
LV
3
LOGIC
NETWORK
VOUT
5
CAP–
4
PIN CONFIGURATION
(DIP and SOIC)
TC7660-7 9/30/96
EVALUATION
KIT
AVAILABLE
