TA8231LQ
2006-04-28
2

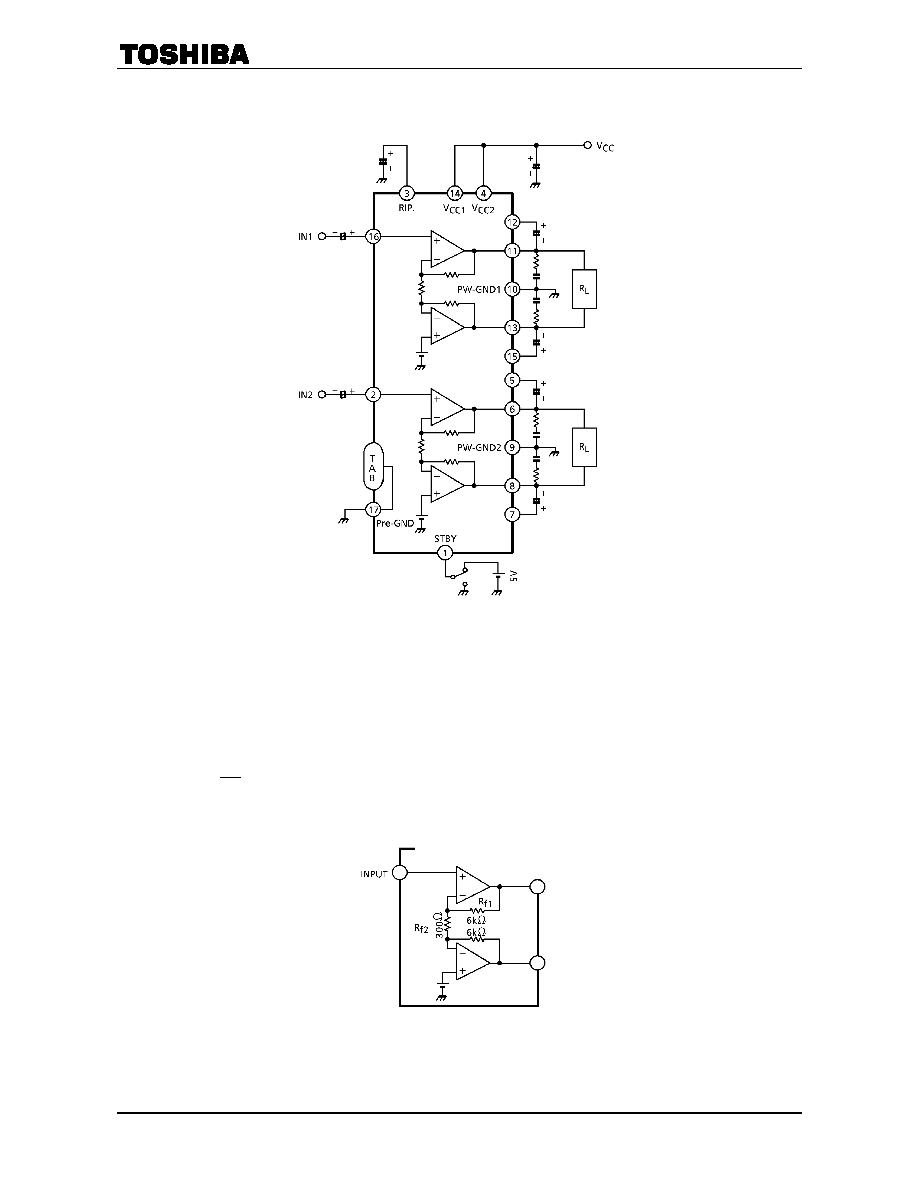

Block Diagram
(GV = 32dB)
Caution And Application Method
(Description is made only on the single channel.)
1. Voltage gain adjustment
This IC has no NF (negative feedback) terminals. Therefore, the voltage gain can't adjusted, but it makes the
device a space and total costs saver.
The voltage gain is decided only internal by expression below.
(dB)
32
(dB)
6
f2
R
f1
R
og
20
V
G
=
+
=
l
