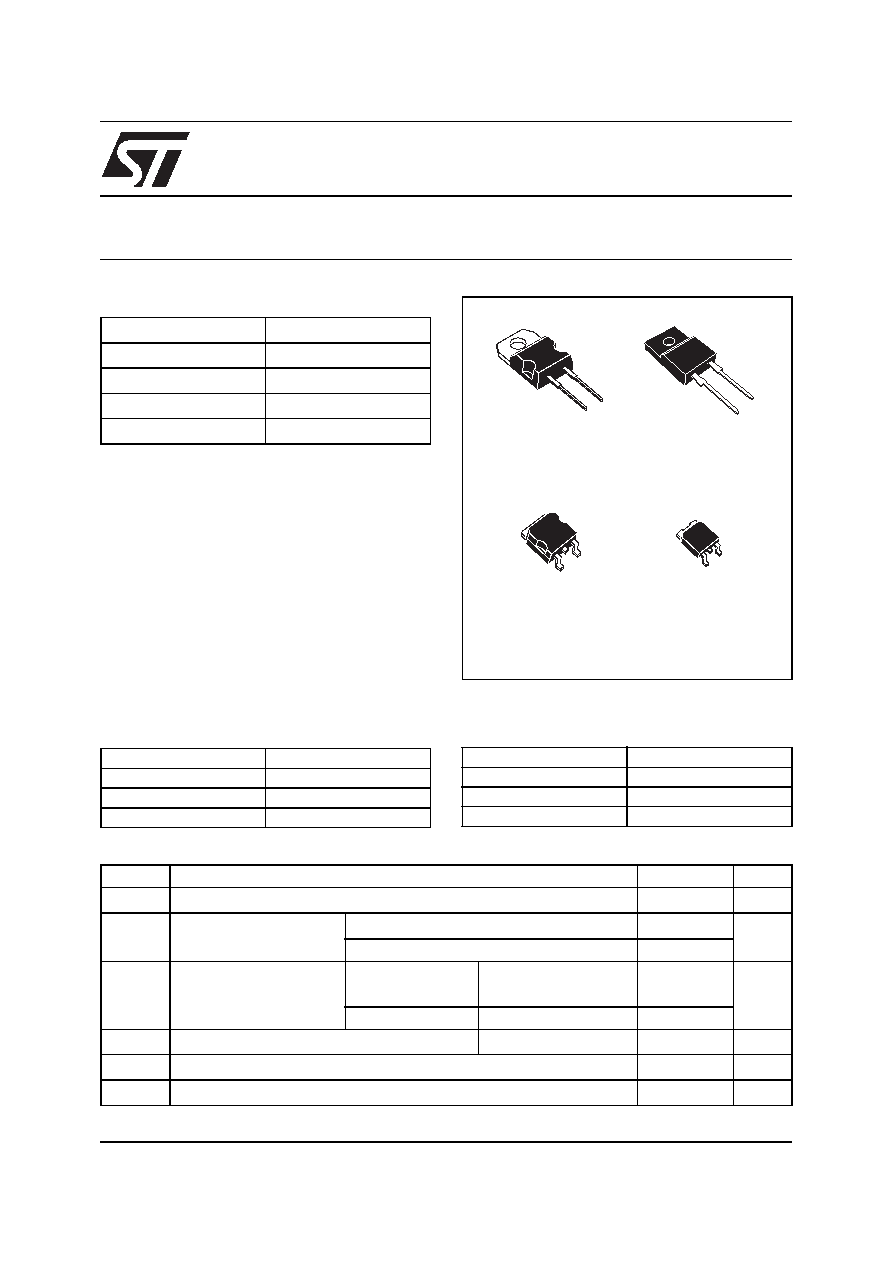

1/9
Table 1: Main Product Characteristics
IF(AV)
5 A
VRRM
600 V
Tj
175°C
VF (typ)
1.4 V
trr (max)
40 ns
STTH5R06
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
Table 3: Absolute Ratings (limiting values)
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
600
V
IF(RMS) RMS forward voltage
TO-220AC / TO-220FPAC / D2PAK
20
A
DPAK
10
IF(AV)
Average forward current
TO-220AC / DPAK
/ D2PAK
Tc = 135°C
δ = 0.5
5
A
TO-220FPAC
Tc = 105°C
δ = 0.5
5
IFSM
Surge non repetitive forward current
tp = 10ms sinusoidal
50
A
Tstg
Storage temperature range
-65 to + 175
°C
Tj
Maximum operating junction temperature
175
°C
K
A
TO-220AC
STTH5R06D
K
A
TO-220FPAC
STTH5R06FP
K
A
NC
D2PAK
STTH5R06G
K
A
NC
DPAK
STTH5R06B
September 2004
REV. 4
FEATURES AND BENEFITS
■
Ultrafast switching
■
Low reverse recovery current
■
Low thermal resistance
■
Reduces switching losses
DESCRIPTION
The STTH5R06, which is using ST Turbo 2 600V
technology, is specially suited as boost diode in
continuous mode power factor corrections and
hard switching conditions. This device is also
intended for use as a free wheeling diode in power
supplies and other power switching applications.
Table 2: Order Codes
Part Number
Marking
STTH5R06D
STTH5R06FP
STTH5R06B
Part Number
Marking
STTH5R06B-TR
STTH5R06B
STTH5R06G
STTH5R06G-TR
STTH5R06G
