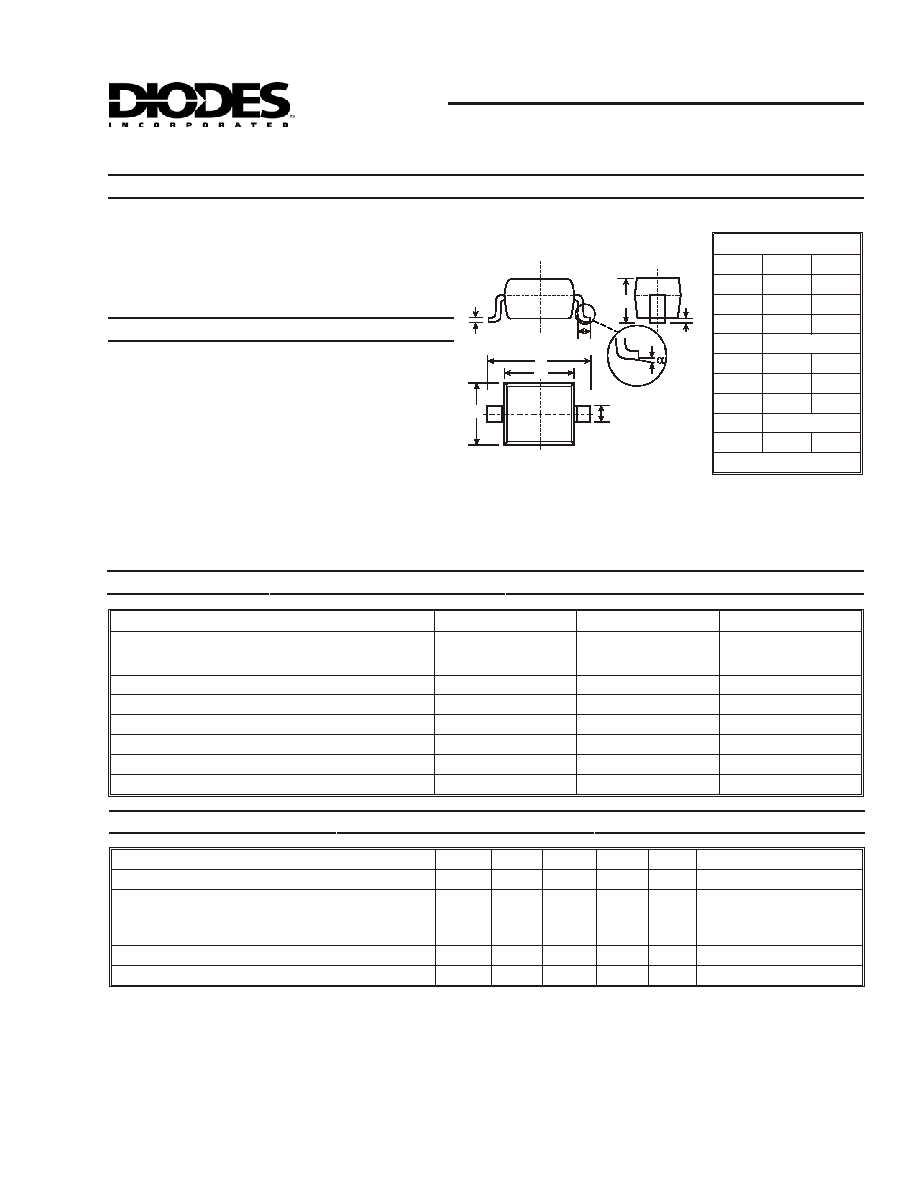

DS30129 Rev. 6 - 2
1 of 2
SD107WS
www.diodes.com
Diodes Incorporated
SD107WS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
Maximum Ratings @ TA = 25°C unless otherwise specified
Low Forward Voltage Drop
Guard Ring Die Construction for
Transient Protection
Ideal for low logic level applications
Low Capacitance
Available in Lead Free/RoHS Compliant Version (Note 3)
Mechanical Data
Case: SOD-323
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Leads: Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin Finish annealed
over Alloy 42 leadframe). Please see Ordering Information,
Note 5, on Page 2
Polarity: Cathode Band
Marking: See Page 2
Type Code: SG
Weight: 0.004 grams (approximate
)
Characteristic
Symbol
SD107WS
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
30
V
RMS Reverse Voltage
VR(RMS)
21
V
Forward Continuous Current (Note 1)
IFM
100
mA
Non-Repetitive Peak Forward Surge Current @ t
10ms
IFSM
750
mA
Power Dissipation (Note 1)
Pd
250
mW
Thermal Resistance, Junction to Ambient Air (Note 1)
RqJA
500
°C/W
Operating and Storage Temperature Range
Tj, TSTG
-65 to 150
°C
Electrical Characteristics
Characteristic
Symbol
Min
Typ
Max
Unit
Test Condition
Reverse Breakdown Voltage (Note 2)
V(BR)R
30
-
V
IR = 100
mA
Forward Voltage Drop (Note 2)
VFM
-
300
360
470
580
-
550
800
mV
@ IF = 2.0mA
@ IF = 15mA
@ IF = 50mA
@ IF = 100mA
Peak Reverse Current (Note 2)
IRM
-
1.0
mA
VR = 25V
Total Capacitance
CT
-7-
pF
VR = 10V f = 1.0 MHz
@ TA = 25
°C unless otherwise specified
SOD-323
Dim
Min
Max
A
2.30
2.70
B
1.60
1.80
C
1.20
1.40
D
1.05 Typical
E
0.25
0.35
G
0.20
0.40
H
0.10
0.15
J
0.05 Typical
a
0
°
8
°
All Dimensions in mm
Notes:
1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used in minimizing self-heating effect.
3. No purposefully added lead.
A
B
C
D
E
G
H
J
