參數資料
| 型號： | SD101AWS |
| 廠商： | VISHAY SEMICONDUCTORS |
| 元件分類： | 二極管(射頻、小信號、開關、功率) |
| 英文描述： | 0.03 A, 60 V, SILICON, SIGNAL DIODE |
| 封裝： | ROHS COMPLIANT, PLASTIC, SOD-323, 2 PIN |
| 文件頁數： | 2/4頁 |
| 文件大?。?/td> | 162K |
| 代理商： | SD101AWS |

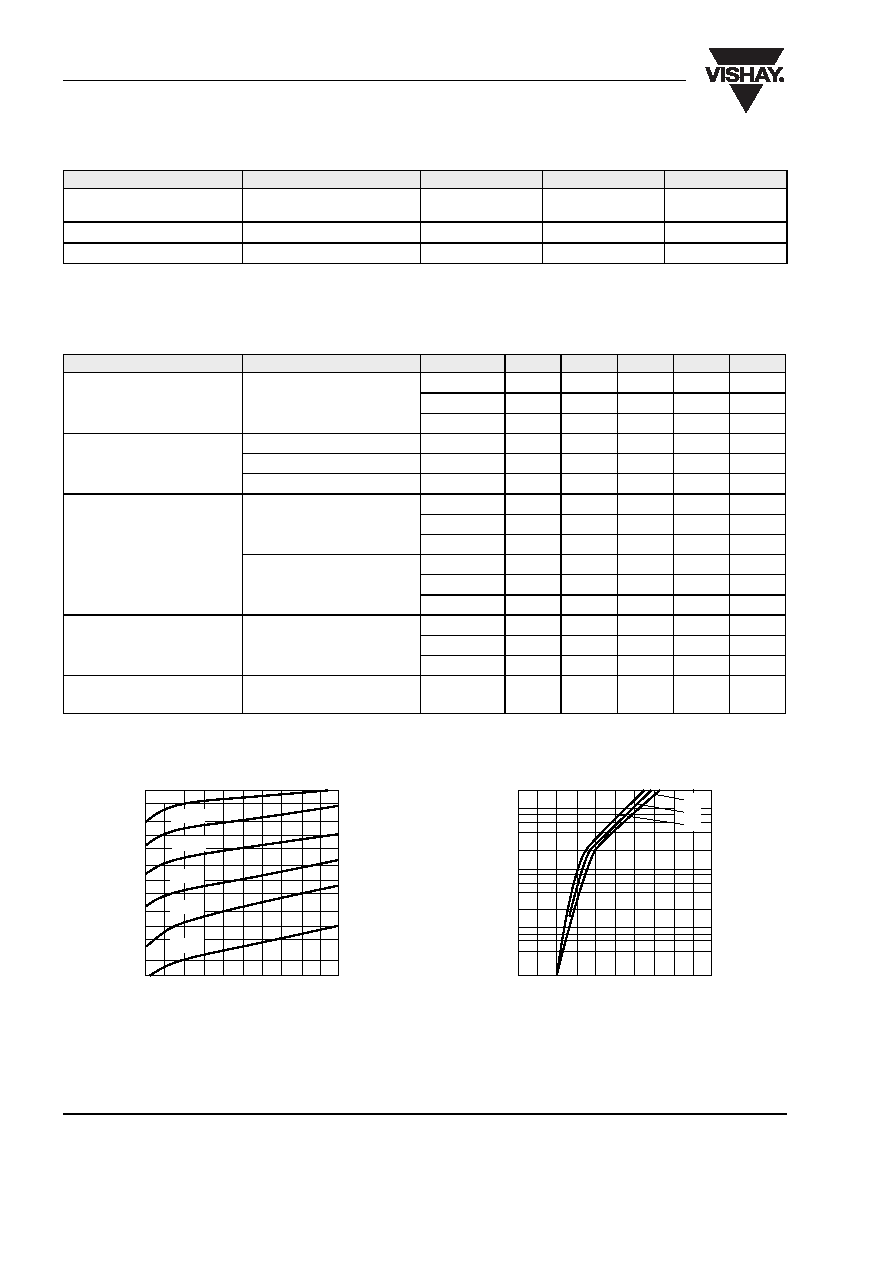

www.vishay.com
2
Document Number 85680
Rev. 1.4, 15-Jul-05
SD101AWS / 101BWS / 101CWS
Vishay Semiconductors
Thermal Characteristics
Tamb = 25 °C, unless otherwise specified
1) Valid provided that electrodes are kept at ambient temperature
Electrical Characteristics
Tamb = 25 °C, unless otherwise specified
Typical Characteristics (Tamb = 25
°C unless otherwise specified)
Parameter
Test condition
Symbol
Value
Unit
Thermal resistance junction to
ambient air
RthJA
6501)
°C/W
Junction temperature
Tj
1251)
°C
Storage temperature range
TS
- 65 to 150
°C
Parameter
Test condition
Part
Symbol
Min
Typ.
Max
Unit
Reverse breakdown voltage
IR = 10 A
SD101AWS
V(BR)R
60
V
SD101BWS
V(BR)R
50
V
SD101CWS
V(BR)R
40
V
Leakage current
VR = 50 V
SD101AWS
IR
200
nA
VR = 40 V
SD101BWS
IR
200
nA
VR = 30 V
SD101CWS
IR
200
nA
Forward voltage drop
IF = 1 mA
SD101AWS
VF
0.41
V
SD101BWS
VF
0.40
V
SD101CWS
VF
0.39
V
IF = 15 mA
SD101AWS
VF
1V
SD101BWS
VF
0.95
V
SD101CWS
VF
0.90
V
Junction capacitance
VR = 0 V, f = 1 MHz
SD101AWS
Ctot
2.0
ns
SD101BWS
Ctot
2.1
ns
SD101CWS
Ctot
2.2
ns
Reverse recovery time
IF = IR = 5 mA,
recover to 0.1 IR
trr
1ns
Figure 1. Typical Variation of Reverse Current at Various
Temperatures
100
10
1
0.1
0.01
10
20
30
40
050
75
°C
50
°C
25
°C
150
°C
125
°C
100
°C
VR - Reverse Voltage(V)
I
-
Reverse
Current
(
A)
R
18479
Figure 2. Typical Variation of Forward Current vs. Forward Voltage
0.01
0.1
1
10
0
0.4
0.6
0.8
1.0
0.2
A
B
C
I
-
Forward
Current
(
m
A
)
F
VF - Forward Voltage(V)
18477
