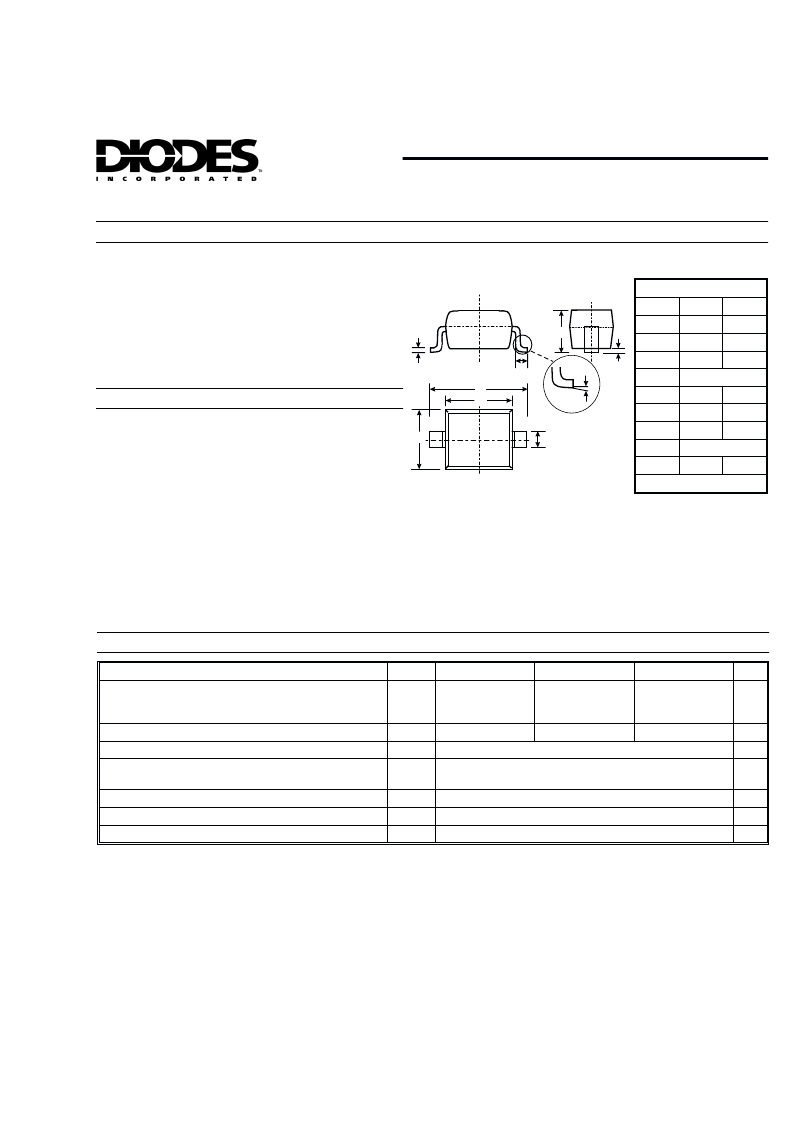

DS30078 Rev. 4 - 2
1 of 3
SD101AWS - SD101CWS
SD101AWS - SD101CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Low Forward Voltage Drop
Guard Ring Construction for
Transient Protection
Negligible Reverse Recovery Time
Low Capacitance
Ultra-small Surface Mount Package
Case: SOD-323, Plastic
Case material - UL Flammability Rating
Classification 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Polarity: Cathode Band
Leads: Solderable per MIL-STD-202,
Method 208
Marking: See Sheet 3
SD101AWS Marking Code: S1 or SK
SD101BWS Marking Code: S2 or SK
SD101CWS Marking Code: S3 or SC or SK
Weight: 0.004 grams (approx.)
Mechanical Data
Features
Maximum Ratings
@ T
A
= 25 C unless otherwise specified
A
B
C
D
E
G
H
J
Characteristic
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
SD101AWS
SD101BWS
SD101CWS
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
60
50
40
V
42
35
15
50
2.0
28
V
mA
@ t
@ t = 10 s
1.0s
I
FSM
mA
A
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
P
d
R
JA
T
j
, T
STG
200
625
mW
C/W
-65 to +125
C
SOD-323
Min
2.30
1.60
1.20
1.05 Typical
0.25
0.20
0.10
0.05 Typical
0
All Dimensions in mm
Dim
A
B
C
D
E
G
H
J
Max
2.70
1.80
1.40
0.35
0.40
0.15
8
Note:
1. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
