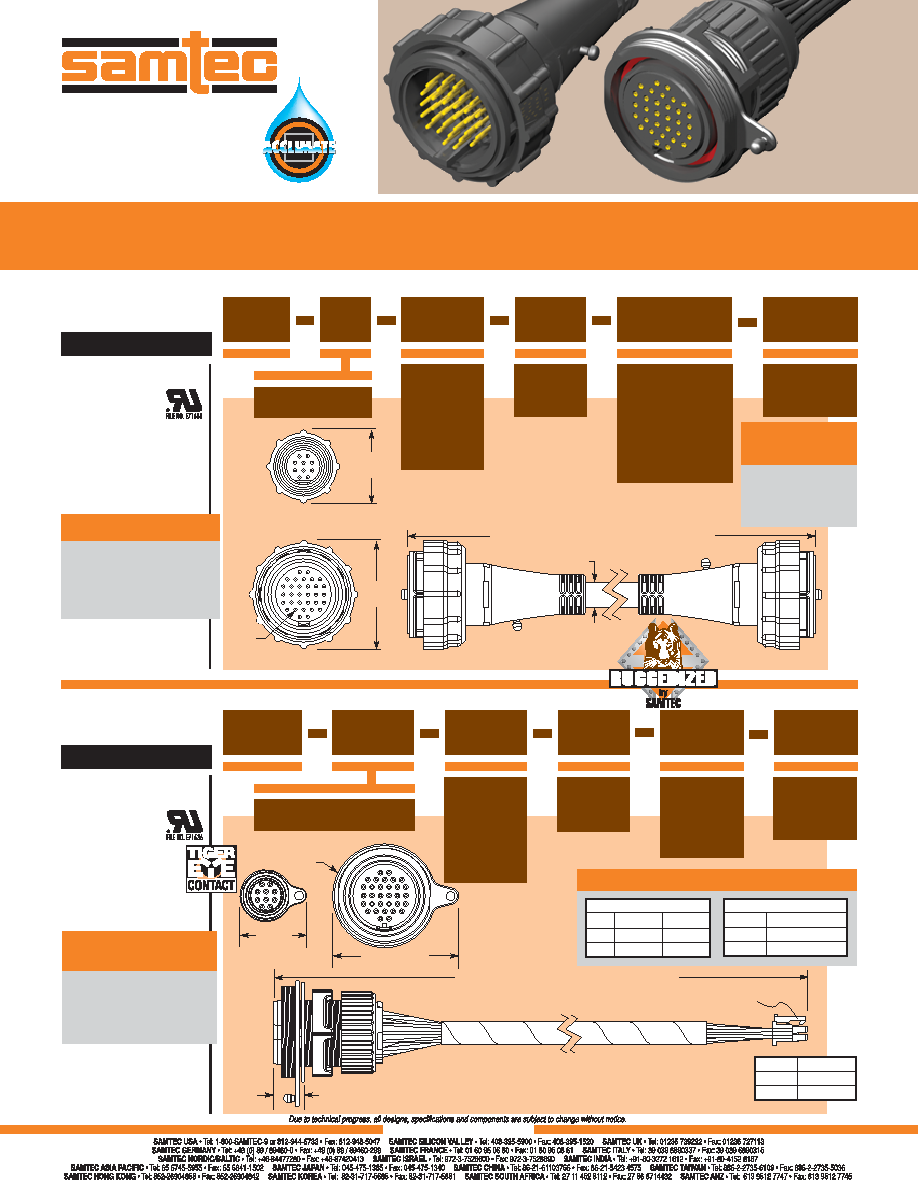

SCP2–17–32–F–3.00–D
SCR2–17–32–F–0.50–DK
WWW.SAMTEC.COM
F-209
Mates with:
SCR2
PLATING
WIRE
LENGTH
–2.00
= (2m) 78.74"
–3.00
= (3m) 118.11"
–5.00
= (5m) 196.85"
END
OPTION
For complete specications
see www.samtec.com?SCP2
Insulator Material:
PBT
Terminal Material:
Brass Alloy
Wire:
24 AWG
Sealed Overmold:
PA66
RoHS Compliant:
Yes
Note: Some lengths,
styles and options are
non-standard, non-returnable.
For complete specications and
recommended panel hole layout
see www.samtec.com?SCR2
Insulator Material:
PBT
Panel Contacts:
Phosphor Bronze
Board Contacts:
Phosphor Bronze
Wire:
24 AWG
RoHS Compliant:
Yes
–D
= Double
Ended
IP68 HIGH DENSITY CIRCULAR
SCP2,
SCR2
Mates with:
SCP2, IPL1
SCP2
–F
= Gold
Flash
NO. OF
PINS
–10
= 10 Pins
(Size –10 only)
–32
= 32 Pins
(Size –17 only)
Note: This Series is
non-standard, non-returnable.
(42,00)
1.65
(0,46)
.018
DIA
Assembled Length = Wire Length + (24,62) .969
(28,00)
1.102
(9,50) .374 DIA
ALSO AVAILABLE
Other applications:
Ethernet: See SCPE Series
USB: See SCPU Series
Power: See SCP1 Series
Tiger Eye: See SCP3 Series
Assembled Length = Wire Length + (19,16) .754
A
See IPD1
& MMSD Series
(48,45) 1.907
(39,90)
1.571
DIA
(31,80)
1.252
SIZE
–10, –17
–10
–17
–10
PLATING
WIRE
LENGTH
END
OPTION
–DK
= Double
Keyed
Polarization
SCR2
–F
= Gold
Flash
NO. OF
PINS
–10
= 10 Pins
(Size –10 only)
–32
= 32 Pins
(Size –17 only)
SIZE
–10, –17
–0.25
= (0.25m) 9.84"
–0.50
= (0.50m) 19.69"
ALSO AVAILABLE
–10
–17
DCA-10-02
DCA-17-02
SIZE
SCPX
DUST CAPS
SCRX
DCA-10-01
DCA-17-01
–10
–17
SIZE
SCRX
SCPPA-10-01
SCPPA-17-01
PANEL PLUGS
Cable shipped with panel mount hardware but not assembled.
–10
–17
SIZE
A
(9,5) .375
(12,7) .50
APPLICATION
SPECIFIC
Single ended
and custom wire
lengths available.
Call Samtec.
APPLICATION
SPECIFIC OPTION
Single ended and custom
wire lengths available.
Without keyed polarization
Call Samtec.
SPECIFICATIONS
