參數資料
型號： REG104FA-2.7/500
元件分類： 固定正電壓?jiǎn)温份敵鯨DO穩壓器
英文描述： 2.7 V FIXED POSITIVE LDO REGULATOR, 0.46 V DROPOUT, PSSO5
封裝： D2PAK-5
文件頁數： 1/14頁
文件大?。?/td> 246K
代理商： REG104FA-2.7/500

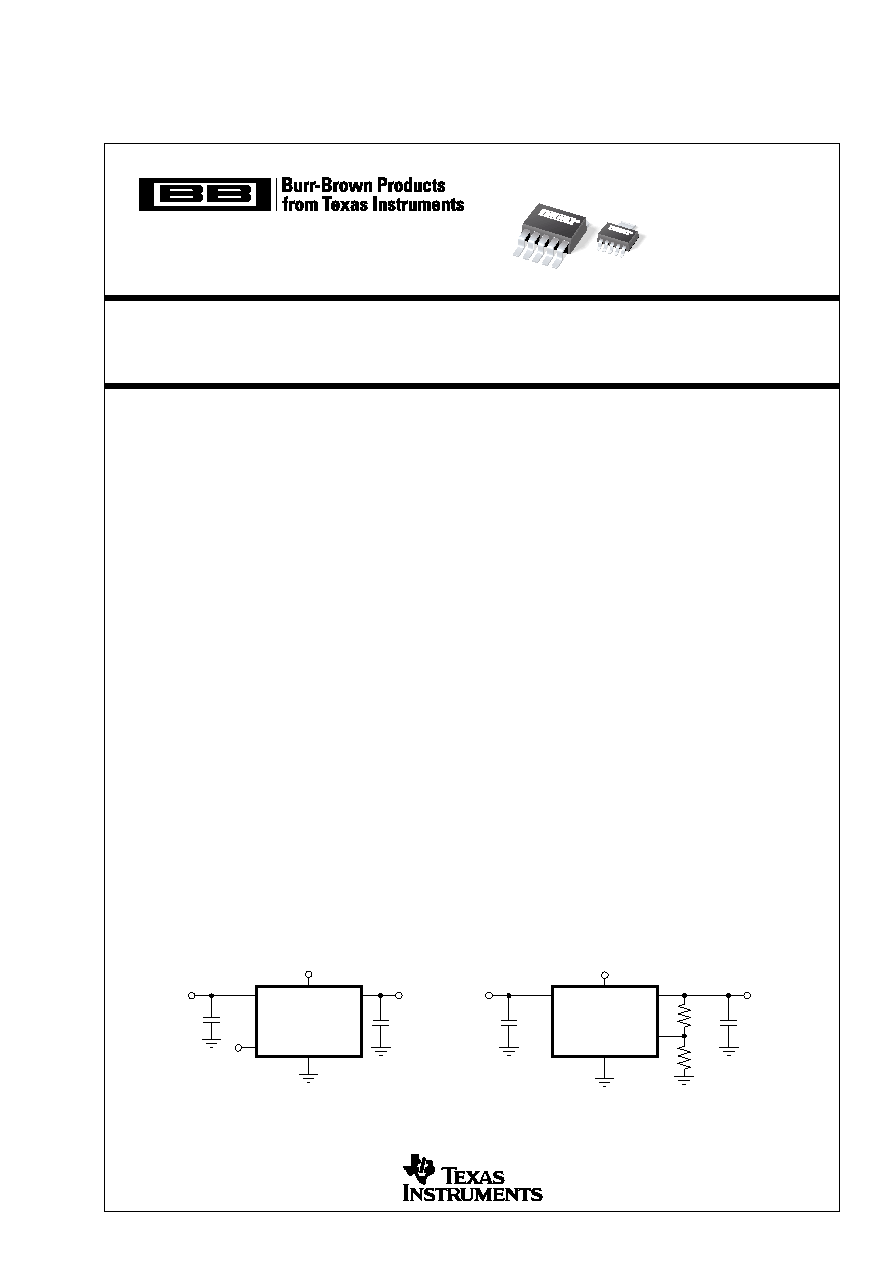

DMOS
1A Low-Dropout Regulator
FEATURES
q NEW DMOS TOPOLOGY:
Ultra Low Dropout Voltage:
230mV typ at 1A and 3.3V Output
Output Capacitor NOT Required for Stability
q FAST TRANSIENT RESPONSE
q VERY LOW NOISE: 33
Vrms
q HIGH ACCURACY:
±2% max
q HIGH EFFICIENCY:
IGND = 1.7mA at IOUT = 1A
Not Enabled: IGND = 0.5A
q 2.5V, 2.7V, 3.0V, 3.3V, 5.0V AND
ADJUSTABLE OUTPUT VERSIONS
q THERMAL PROTECTION
q SMALL SURFACE-MOUNT PACKAGES:
SOT223-5, DDPAK-5
APPLICATIONS
q PORTABLE COMMUNICATION DEVICES
q BATTERY-POWERED EQUIPMENT
q MODEMS
q BAR-CODE SCANNERS
q BACKUP POWER SUPPLIES
DESCRIPTION
The REG104 is a family of low-noise, low-dropout
linear regulators with low ground pin current. Its new
DMOS topology provides significant improvement
over previous designs, including low dropout voltage
(only 230mV typ at full load), and better transient
performance. In addition, no output capacitor is re-
quired for stability, unlike conventional low dropout
regulators that are difficult to compensate and require
expensive low ESR capacitors greater than 1
F.
Typical ground pin current is only 1.7mA (at IOUT = 1A)
and drops to 0.5
A in “not enabled” mode. Unlike
regulators with PNP pass devices, quiescent current
remains relatively constant over load variations and
under dropout conditions.
The REG104 has very low output noise (typically
33
Vrms for V
OUT = 3.3V with CNR = 0.01F),
making it ideal for use in portable communications
equipment. On-chip trimming results in high output
voltage accuracy. Accuracy is maintained over tem-
perature, line, and load variations. Key parameters are
guaranteed over the specified temperature range
(–40
°C to +85°C).
The REG104 is well protected—internal circuitry pro-
vides a current limit which protects the load from
damage. Thermal protection circuitry keeps the chip
from being damaged by excessive temperature. The
REG104 is available in the DDPAK and the SOT223-5.
Copyright 2000, Texas Instruments Incorporated
SBVS025A
Printed in U.S.A. December, 2000
REG10
4
REG104
www.ti.com
REG104
(Fixed Voltage
Versions)
Enable
Gnd
0.1
F
C
OUT
(1)
+
V
OUT
V
IN
NR
NR = Noise Reduction
NOTE: (1) Optional.
REG104-A
Gnd
Enable
0.1
F
+
C
OUT
(1)
+
V
OUT
V
IN
R
2
R
1
Adj
