Data Sheet
May 2000
QW050A1 and QW075A1 Power Modules:
dc-dc Converters; 36 to 75 Vdc Input, 5 Vdc Output; 50 W and 75 W
Applications
I
Distributed power architectures
I
Workstations
I
Computer equipment
I
Communications equipment
Options
I
Heat sinks available for extended operation
I
Auto-restart after overcurrent shutdown
Features
I
Small size: 36.8 mm x 57.9 mm x 12.7 mm
(1.45 in. x 2.28 in. x 0.50 in.)
I
High power density
I
High efficiency: 84% typical
I
Low output noise
I
Constant frequency
I
Industry-standard pinout
I
Metal baseplate
I
2:1 input voltage range
I
Overvoltage and overcurrent protection
I
Remote on/off
I
Remote sense
I
Adjustable output voltage
I
Overtemperature protection
I
ISO* 9001 Certified manufacturing facilities
I
UL
1950 Recognized, CSA
C22.2 No. 950-95
Certified, and VDE
§
0805 (EN60950, IEC950)
Licensed
I
CE mark meets 73/23/EEC and 93/68/EEC direc-
tives**
* ISOis a registered trademark of the International Organization
for Standardization.
ULis a registered trademark of Underwriters Laboratories, Inc.
CSAis a registered trademark of Canadian Standards Associa-
tion.
§ VDEis a trademark of Verband Deutscher Elektrotechniker e.V.
** This product is intended for integration into end-use equipment.
All the required procedures for CE marking of end-use equip-
ment should be followed. (The CE mark is placed on selected
products.)

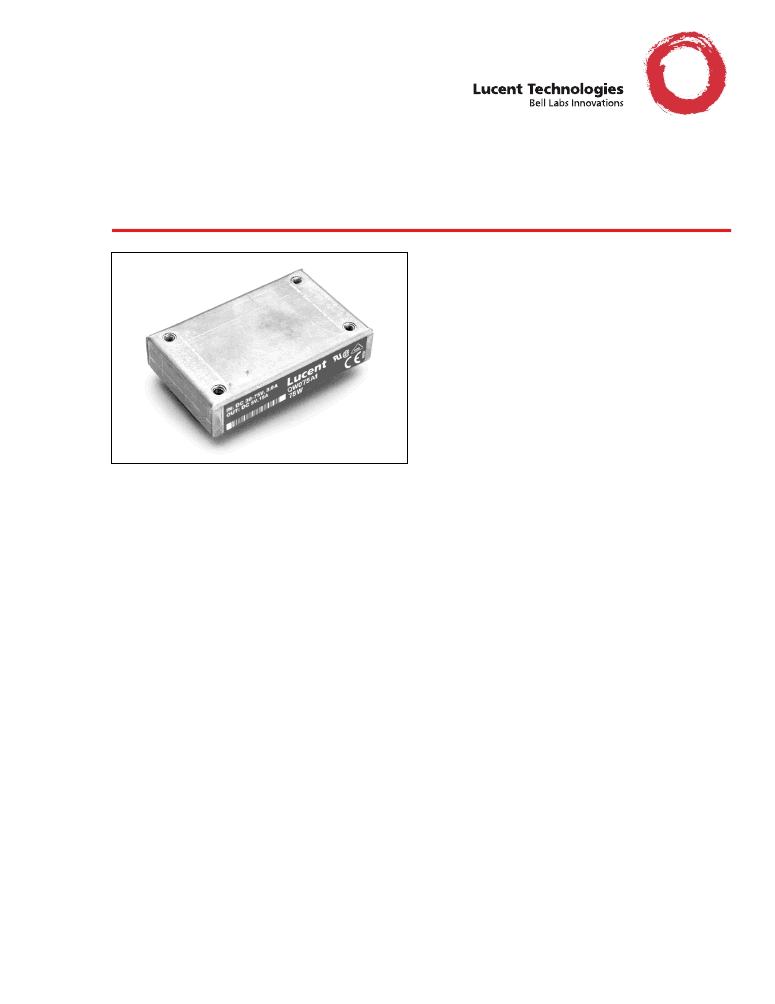

The QW Series Power Modules use advanced, surface-mount
technology and deliver high-quality, efficient, and compact
dc-dc conversion.
Description
The QW050A1 and QW075A1 Power Modules are dc-dc converters that operate over an input voltage range of
36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs,
allowing versatile polarity configurations and grounding connections. The modules have maximum power rat-
ings from 50 W to 75 W at a typical full-load efficiency of 84%.
The sealed modules offer a metal baseplate for excellent thermal performance. Threaded-through holes are pro-
vided to allow easy mounting or addition of a heat sink for high-temperature applications. The standard feature set
includes remote sensing, output trim, and remote on/off for convenient flexibility in distributed power applications.
