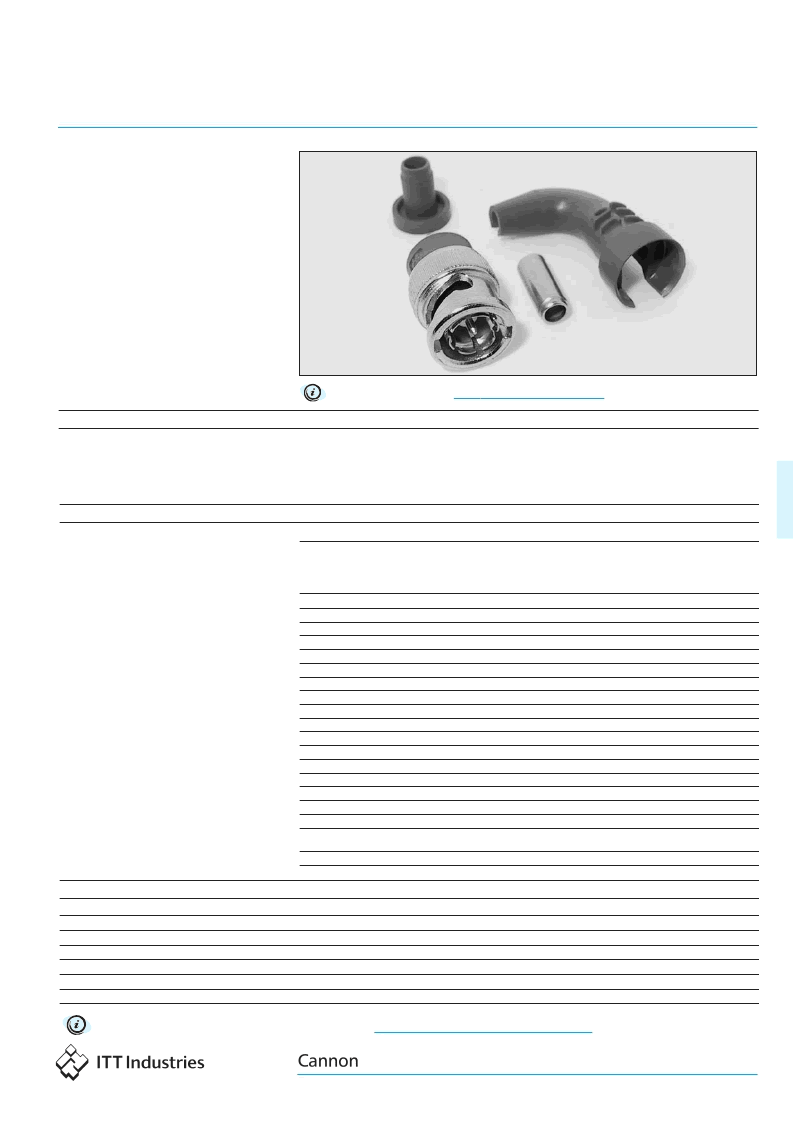

Version 05.01.03
S-07
Dimensions are shown in mm (inch)
Dimensions subject to change
www.ittcannon.com
R
C
RF Coaxial Connectors
joint of exceptional mechanical integrity,
without crimping the center contact. The
QT-BNC is a 75 ohm pre-assembled connector
with an integral center contact and rear crimp
ferrule. This connector may be terminated
onto cable in under 20 seconds, significantly
reducing installation costs.
QT-BNC
his totally new termination technique
provides the QT-BNC with a high
pressure, gas tight center conductor
Applications:
Broadcast Systems
Central Office Switching
Cross-Connect Equipment
Telecommunications
Product Features
Meets Telcordia/SMPTE 292M standards.
Designed for field installation.
Plastic rear cap is color coded for easy
identification of cable type.
Performance Specifications
Optional right angle strain relief boot
accessory (shown above).
Compatible with select competitive crimp
tools and die sets.
Complete assembly instructions are printed
on bags.
Pneumatic crimp tool available.
Bump
4000 total at 390 m/s
2
Cable
M17/29-RG59/U
734 type
735A type
1694A
500 mating cycles min.
1.5 A dc max.
22,3 N (5 lbs) min. axial force
Outer contact: 1.0 m max.; Braid to body: 1.0 m max.
375 V ac rms min. at 21 km (70,000 ft)
445 N (100 lbs) min.
1500 V ac rms at sea level
DC to 2.0 GHz
75 nominal
22,3 N (5 lbs) max.
0.2 dB max. at 2 GHz
5000 M min.
–40°C to 85°C (–40°F to 185°F)
500 V ac rms at sea level
–60 dB typical up to 2 GHz
490 m/s
2
for 11 ms
3 m max. (excluding pole resistance)
(a) Frequency range from 10 Hz to 500 Hz. (b) Displacement: 0.75 (.029).
(c) Acceleration: 98 m/s
2
. (d) Duration: 6 hours.
1.2 max. (DC to 1 GHz); 1.3 max. (1 to 2 GHz)
Cable Retention
Axial Force
133 N (30 lbs) min.
311 N (70 lbs) min.
111 N (25 lbs) min.
133 N (30 lbs) min.
Torque
0,9 Nm (8.0 in. lbs)
0,9 Nm (8.0) in. lbs)
0,45 Nm (4.0 in. lbs)
0,9 Nm (8.0 in. lbs)
Connector Durability
Contact Current Rating
Contact/Insulator Retention
Contact Resistance
Corona Level
Coupling Mechanism Retention
DWV
Frequency Range
Impedance
Insertion Force
Insertion Loss
Insulation Resistance
Operating Temperature
Operating Voltage
RF Leakage
Shock
Termination Resistance (QT Center contact)
Vibration
VSWR
Materials and Finishes
Description
Connector Body
Insulators
Center Contact Male
Coupling Nut
Crimp Ferrule
Spring
Material
Phosphor bronze
Polymers rated to UL 94V-0
Beryllium copper
Die Cast, Copper Zinc Alloy
Annealed Copper Alloy
Stainless Steel
Finish
140 μ in. Nickel
—
50 μ in. Gold
80 μ in. Nickel
150 μ in. Nickel
—
For more information: www.ittcannon.com/cat078
Please contact your local Cannon representative: www.ittcannon.com/support/ContactUs
