| 型號： | PUMA84F256006I-90 |
| 元件分類： | PROM |
| 英文描述： | 8M X 32 FLASH 5V PROM MODULE, 90 ns, PQMA84 |
| 封裝： | PLASTIC, LCC-84 |
| 文件頁數： | 1/3頁 |
| 文件大?。?/td> | 202K |
| 代理商： | PUMA84F256006I-90 |
8
11403 West Bernardo Court, Suite 100, San Diego, CA92127.
TEL (001) 858 674 2233, Fax No. (001) 858 674 2230 E-mail:
sales@mosaicsemi.com
Pin Functions

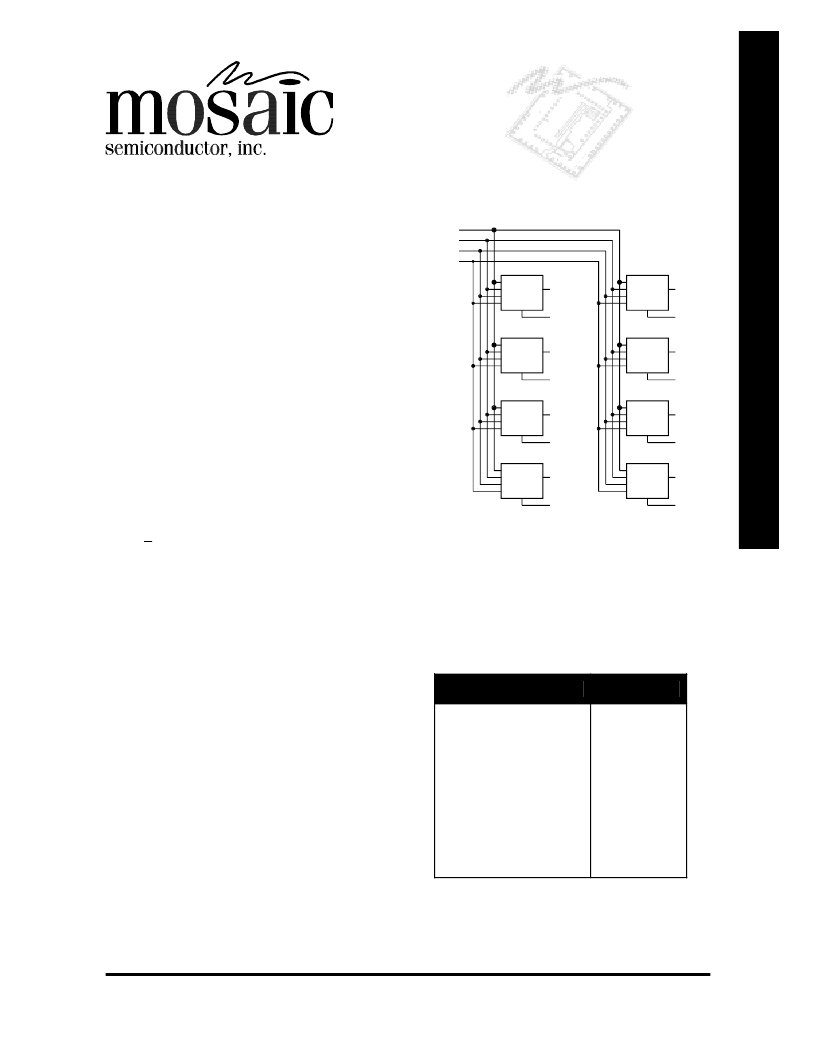

Block Diagram
Pin Definition
See page 2.
Package Details
PUMA 84 - Plastic 84 ‘J’ Leaded Package.
Max. Dimensions - 30.35 x 30.35 x 6.00 (nom)
All Dimensions in mm.
Features
Access times of 90, 120 and 150ns.
5.0V + 10% V
CC
.
Commercial and Industrial temperature grades
JEDEC Standard 84 ‘J’ Lead surface mount
package.
May be organised as 8M x 32, 16M x 16 and
32M x 8
Flexible Sector (64 KByte) Architecture.
Embedded Algorithms.
Multiple Ground pins for maximum noise
immunity.
PUMA 84F256006 - 90/12/15
Issue 5.0 January 2000
Description
The PUMA 84 range of devices provide a high
density, surface mount memory solution with
density up to twice that of standard monolithic
devices.
The PUMA 84 may accomodate various memory
technologies including SRAM, FLASH and
EEPROM. The devices are designed to offer a
defined upgrade path and may be user configured
as 8, 16 or 32 bits wide.
The PUMA 84F256006 is a 8M x 32, 5.0V FLASH
Module in a 84 ‘J’ Leaded package which complies
with the JEDEC 84 PLCC standard.
Access times of 90/120/150 ns are available.
The 5.0V device is available to commercial and
industrial temperature grade.
Description
Signal
Address Input
Data Input/Output
Chip Select
Write Enable
Output Enable
Hardware Reset
No Connect
Power
Ground
A0~A21
D0~D31
/CS1~8
/WE
/OE
/RESET
NC
V
CC
V
SS
4M x 8
FLASH
A0 ~A21
/CS1
/CS2
/CS3
/CS4
/CS5
/CS6
/CS7
/CS8
D0 ~ 7
D8 ~ 15
D16 ~ 23
D24 ~ 31
D0 ~ 7
D8 ~ 15
D16 ~ 23
D24 ~ 31
4M x 8
FLASH
4M x 8
FLASH
4M x 8
FLASH
4M x 8
FLASH
4M x 8
FLASH
4M x 8
FLASH
4M x 8
FLASH
/WE
/OE
/RESET
