參數資料
| 型號： | PI3V314BE |
| 廠商： | Pericom |
| 文件頁數： | 1/10頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC VIDEO MUX/DEMUX 4X1 40BQSOP |
| 產品變化通告： | Product Discontinuation Notice 22/Jan/2010 |
| 標準包裝： | 49 |
| 功能： | 視頻多路復用器/多路分解器 |
| 電路： | 3 x 4:1 |
| 導通狀態電阻： | 8 歐姆 |
| 電壓電源： | 單電源 |
| 電壓 - 電源，單路/雙路(±)： | 2.5 V ~ 3.3 V |
| 電流 - 電源： | 1.6mA |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 40-FSOP（0.154"，3.90mm 寬） |
| 供應商設備封裝： | 40-BQSOP |
| 包裝： | 管件 |
1
PS8756C
06/29/06

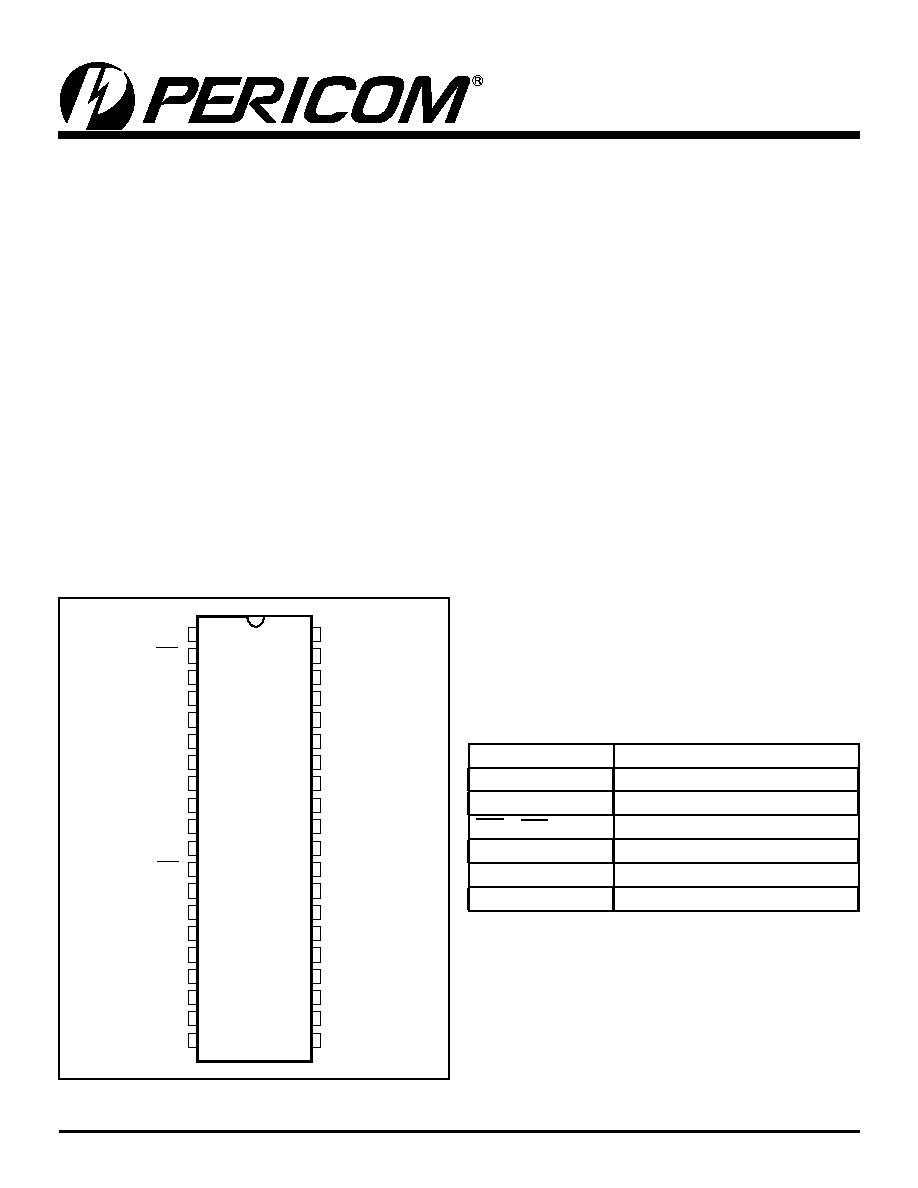

Pin Configuration
Features
Near-Zero propagation delay
5 switches connect inputs to outputs
High signal passing bandwidth (375MHz)
Beyond Rail-to-Rail switching
5V I/O tolerant with 3.3V supply
2.5V and 3.3V supply voltage operation
Hot insertion capable
Low Crosstalk (XTALK = -60dB Typ.)
Low Off-Isolation (OIRR = -60db Typ.)
Industrial operating temperature: -40C to +85C
2KV ESD Protection (human body model)
Latch-up performance >250mA per JESD17
Packaging (Pb-free & greeen available):
– 40-Pin 150-mil wide plastic BQSOP(B)
Low On-Resistance, 3.3V High-Bandwidth
3-Port, 4:1 Mux/DeMux VideoSwitch
Description
The PI3V314 is a true bi-directional 3-Port 4:1 multiplexer/
demultiplexerwithHi-ZoutputsthatisrecommendedforbothRGB
and composite video switching applications. With the increased 4:
1 channels, multiple components, such as VCR, DVD, PC1, PC2
and etc. can be put on the video networks. The VideoSwitch can
be driven from a current output RAMDAC or voltage output com-
posite video source.
Low On-Resistance, Low Crosstalk, Low OFF Isolation and wide
bandwidth features make it ideal for video and other applications.
Industry leading advantages include a near zero propagation delay,
resulting from its low channel resistance and I/O capacitance. The
switchisbi-directionalandofferslittleornoattenuationofthehigh-
speed signals at the outputs. The device also has exceptional high
current capability which is far greater than most analog switches
offered today. The PI3V314 offers a high-performance (375 MHz),
low-cost solution to switch between video sources.
Applications
Projection TV and LCD TV
Video consumer applications
Analog video signal processing
PI3V314
Notes:
1. N.C = No internal connection
Pin Description
Pin Name
Description
IAN, IBN
Data Inputs
S0-3
Select Inputs
EN0 to EN1
Enable
YA to YC
Data Outputs
GND
Ground
VCC
Power
NC
VCC
NC
S0
IB3
IB2
IB1
IB0
YB
NC
VCC
NC
S2
NC
EN0
S1
IA3
IA2
IA1
IA0
YA
GND
NC
EN1
S3
IC3
IC2
IC1
IC0
YC
GND
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
06-0114
