1
High
Density
-
Board
Mounted
Power
Division
Powering Communications and Technology
55
60
65
70
75
80
85
90
95
10
20
30
40
50
60
70
80
90
100
LOAD %
EFFICIENCY
%
EFF. OBS017ZE
EFF. OBS025ZG
EFF. OBS025ZH
Efficiency vs. Load (48V Input)
65
70
75
80
85
90
95
10
20
30
40
50
60
70
80
90
100
LO AD %
EFFICIENCY
%
EFF. OBS025YG
EFF. OBS025YH
EFF. OBS025YJ
Efficiency vs. Load (24V Input)
Trim And Enable
Pins
Fixed Frequency
1500V Isolation
6-Sided Shielding

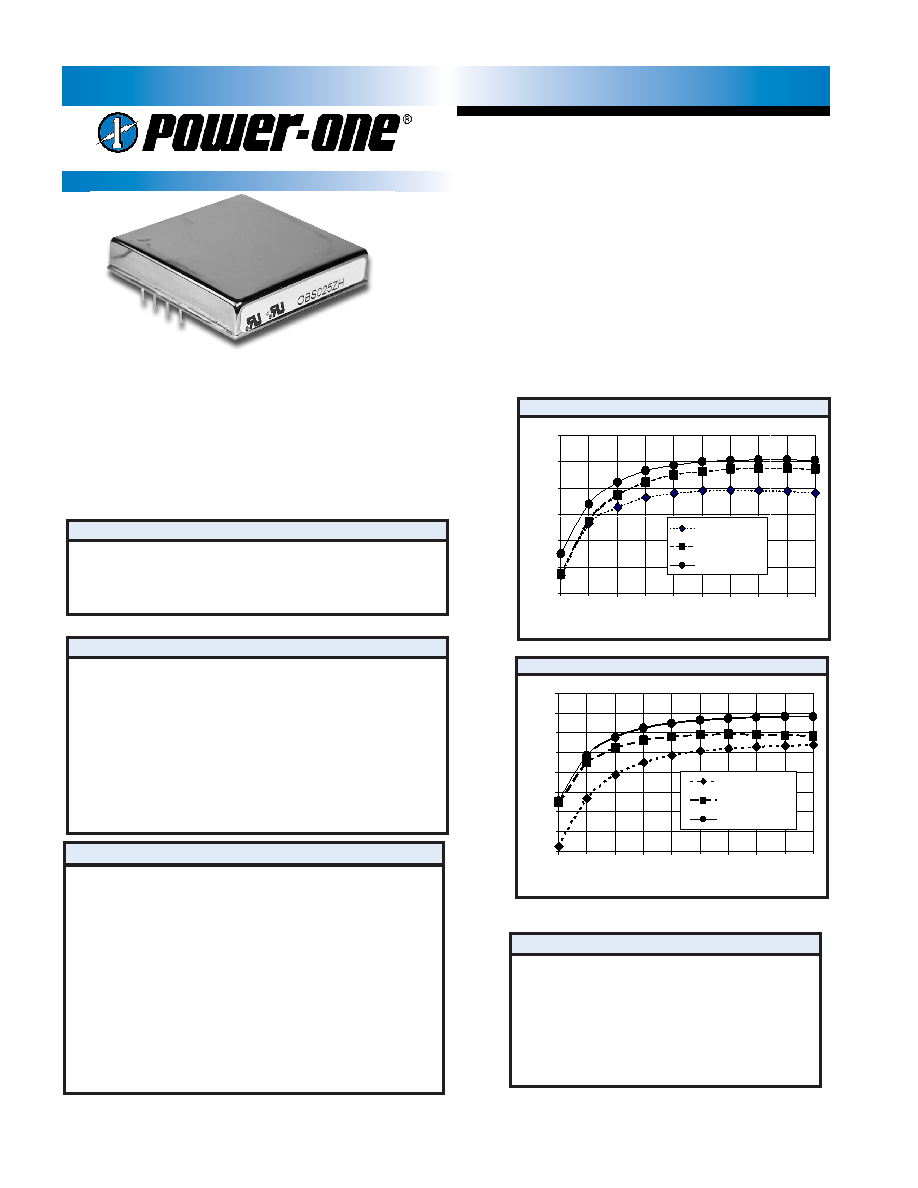

DESCRIPTION
FEATURES
OBS SERIES
25 WATT
OBS single output DC/DC converters provide up to 25 Watts
of output power in an industry standard package and
footprint. The OBS units feature excellent efficiency, six-
sided shielding, and fixed switching frequency. With 100°C
case operation, the OBS converters are especially suited to
telecom, networking, and industrial applications.
These
units are 100% surface-mount construction and fully
compatible with production board washing processes.
Industry standard package
24 and 48V input versions
25W output power
100°C baseplate operation
General
Turn-On Time: 24 & 48Vin
10 ms
Remote Shutdown
Positive
Remote Shutdown Reference
Vin Negative
Switching Frequency
400 kHz
Isolation
Input - Output
1500 VDC
Input - Case (24 Vin units)
500 VDC
Output - Case (48 V in units)
500 VDC
Temperature Coefficient
0.03%/°C
Case Temperature
Operating Range
-40 to +100°C
Storage Range
-40 to +125°C
Humidity Max., Non-Condensing
95%
Vibration, 3 Axes, 5 Min Each
5 g, 10 - 55 Hz
MTBF (Bellcore TR-NWT-000332)
1.8 x 106 hrs
Safety
UL, cUL, TUV
Weight (Approx.)
1.9 oz
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
18 - 36 VDC
48 VDC Nominal
34 - 75 VDC
Reflected Ripple
25 mA
Input Reverse Voltage Protection
Shunt Diode
Output
Setpoint Accuracy
±1%
Line Regulation Vin Min - Vin Max., Iout Rated
0.2% Vout
Load Regulation Iout Min. - Iout Max., Vin Nom.
0.5% Vout
Minimum Output Current
10 % Iout Rated
Dynamic Regulation, Loadstep
25% Iout
Pk Deviation
4% Vout
Settling Time
500
s
Voltage Trim Range
±10% Iout Rated
Short Circuit / Overcurrent Protection
Hiccup
Current Limit Threshold Range, % of Iout Rated
110 - 140%
OVP Trip Range
115 - 140%Vout Nom.
OVP
Hiccup
Notes
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load,
unless otherwise stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully
compatible with commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial
spray or immersion post wave-solder washing equipment.
