NJW1167/A
-3-
I

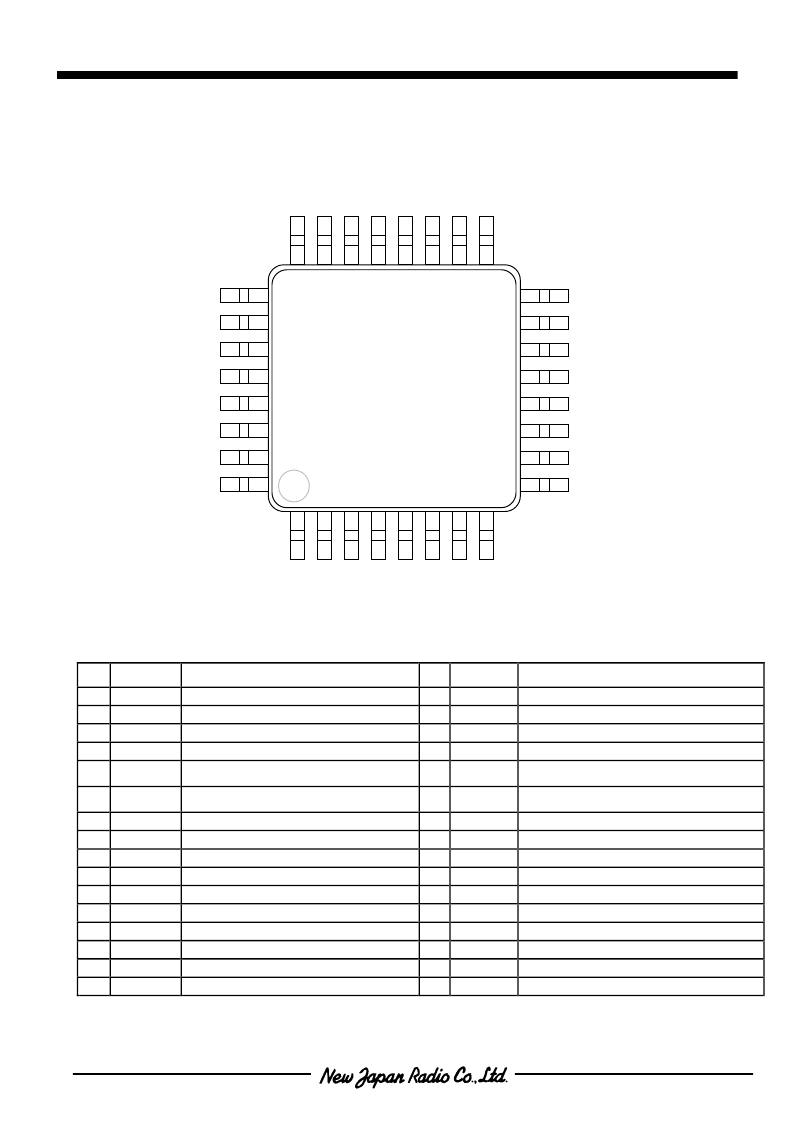

PIN CONFIGURATION
No.
Symbol
Function
No.
Symbol
Function
1
TONE-La
Ach tone control (bass) filter terminal
17
CTH
DAC output terminal for tone control (treble)
2
OUTw
Subwoofer output terminal
18
CVW
Bch DAC output terminal for LPF trimmer
3
OUTa
Ach output terminal
19
CVB
Bch DAC output terminal for volume and balance
4
AGC1
AGC attack and recovery time setting terminal
Auxiliary 3 values voltage output terminal
(0.0V, 2.5V, 5V)
Auxiliary 2 values voltage output terminal
(0.0V, V+)
Logic input terminal
20
CVA
Ach DAC output terminal for volume and balance
5
AUX0
(
)
21
AGC2
AGC boost level setting terminal
6
AUX1
22
OUTb
Bch output terminal
7
PORT0
23
TONE-Lb
Bch tone control (bass) filter terminal
8
PORT1
Logic input terminal
24
TONE-Hb
Bch tone control (treble) filter terminal
9
ADR
Slave address setting terminal
I
2
C data terminal
I
2
C cock terminal
25
LF1
LPF filter1 terminal
10
SDA
26
LF3
LPF filter3 terminal
11
SCL
27
LF2
LPF filter2 terminal
12
GND
Ground terminal
28
INb
Bch input terminal
13
V+
Supply voltage terminal
29
INa
Ach input terminal
14
Vref
Reference voltage terminal
30
SR-FIL
Surround filter terminal
15
CSR
DAC output terminal for surround control
31
SS-FIL
Simulated stereo filter terminal
16
CTL
DAC output terminal for tone control (bass)
32
TONE-Ha
Ach tone control (treble) filter terminal
(
)
The AUX0 terminal should be connected via the protection resistance to 5V device.
QFP32-J2
1
8
9
16
17
24
25
32
INa
SR-FIL
SS-FIL
T
TONE-Ha
INb
O
O
A
A
A
P
P
ADR
SDA
SCL
GND
V+
Vref
CSR
CTL
C
C
C
C
A
O
T
T
LF1
LF3
LF2
