參數資料
| 型號： | MSWSE-040-10 |
| 元件分類： | 參考電壓二極管 |
| 英文描述： | 300 V, SILICON, PIN DIODE |
| 封裝： | 2 X 1.30 MM, ROHS COMPLIANT, QFN-2 |
| 文件頁數： | 4/4頁 |
| 文件大?。?/td> | 558K |
| 代理商： | MSWSE-040-10 |
METELICS
Revision Date: 6/18/2008
4
Aeroflex / Metelics, Inc. reserves the right to make changes to any products
and services herein at any time without notice. Consult Aeroflex or an
authorized sales representative to verify that the information in this data
sheet is current before using this product. Aeroflex does not assume any
responsibility or liability arising out of the application or use of any product
or service described herein, except as expressly agreed to in writing by
Aeroflex; nor does the purchase, lease, or use of a product or service from
Aeroflex convey a license under any patent rights, copyrights, trademark
rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2008 Aeroflex / Metelics. All rights reserved.
Sales
888-641-SEMI (7364)
metelics-sales@aeroflex.com
www.aero
fl
ex.com/Microwave www.aero
fl
ex.com/Metelics
Aeroflex / Metelics Inc.
West Coast Operations
975 Stewart Drive
Sunnyvale, CA 94085
TEL: 408-737-8181
Aeroflex / Metelics Inc.
East Coast Operations
54 Grenier Field Road
Londonderry, NH 03053
TEL: 603-641-3800
ISO 9001:2000
Our passion for performance is defined by three
attributes represented by these three icons:
solution-minded, performance-driven and customer-focused.
A17089
1
2

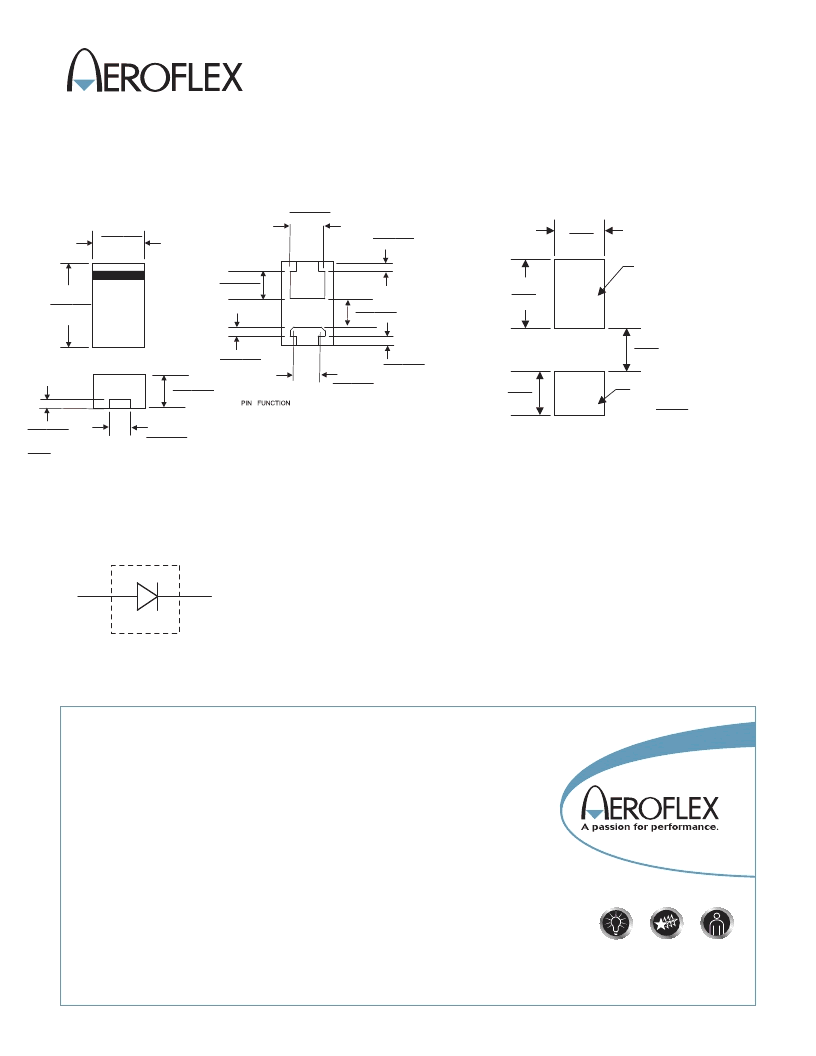

Package Outline (0805P) and
Electrical Schematic
PCB Layout
PIN 1
0.027
0.685
0.029
0.736
0.044
1.117
0.033
0.838
PIN 2
INCHES
mm
MSWSE-040-10
Inches
mm
X
0.050 ± 0.005
1.27 ± 0.13
2
0.080 ± 0.005
2.03 ± 0.13
0.009 ± 0.002
0.23 ± 0.05
0.009 ± 0.003
0.23 ± 0.08
0.026 ± 0.002
0.66 ± 0.05
0.008 ± 0.001
0.23 ± 0.03
0.021 ± 0.003
0.53 ± 0.08
0.032 ± 0.003
0.81 ± 0.08
0.027 ± 0.002
0.69 ± 0.05
0.009 ± 0.003
0.23 ± 0.08
0.033 ± 0.001
0.84 ± 0.03
0.025 ± 0.003
0.64 ± 0.08
1
1
2
1
ANODE
2
CATHODE
NOTES
1. Dimensions do not include mold flashing
2. Burrs and dumbar shall not exceed
0.002” per surface.
3. Lead co-planarity is 0.003” max
