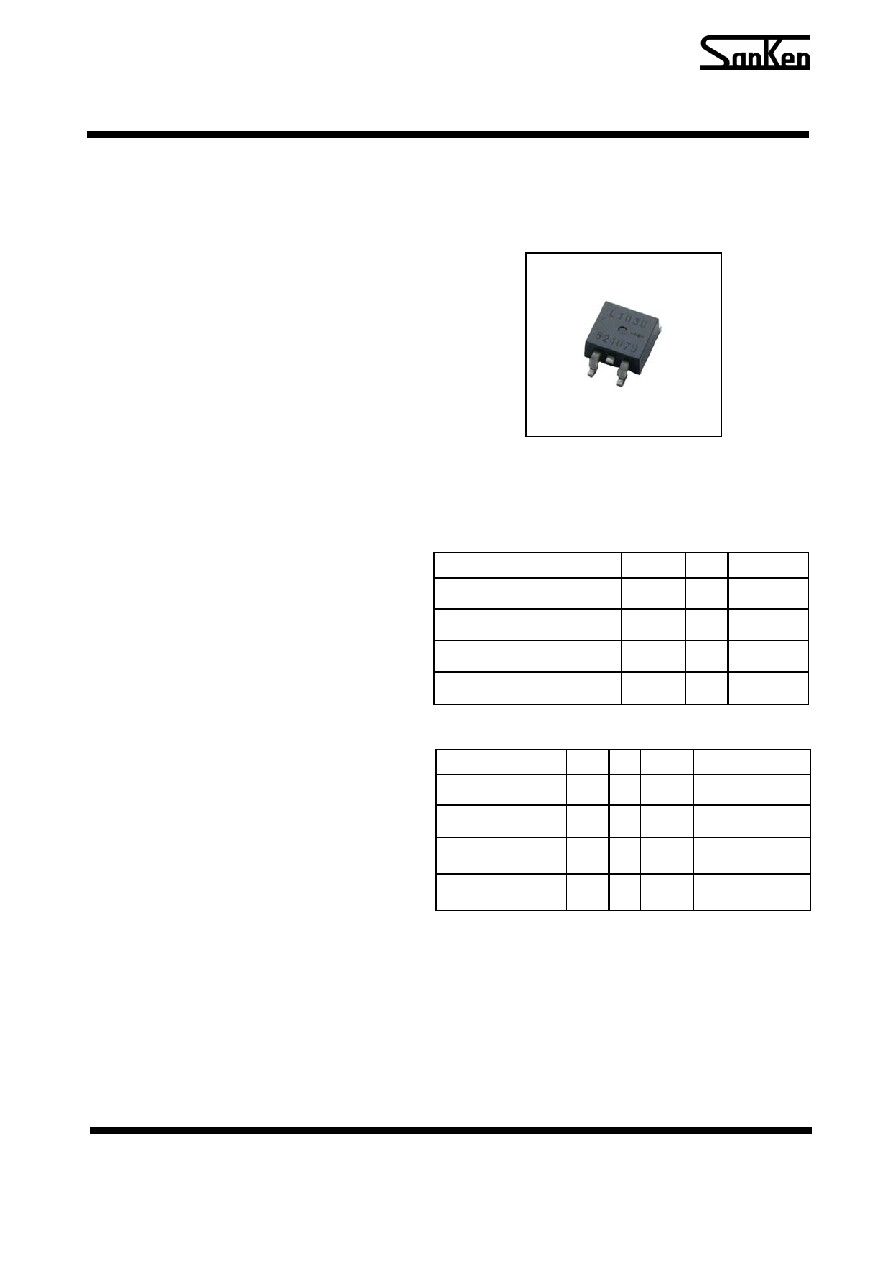

Ultrafast Recovery Diode
MPL-1036S
January, 2006
Sanken Electric Co.,Ltd.
D01-007JE-060113
General Description
A surface mount device added to 600V_L series.
Realizes better space-saving in mounting on a printed circuit
board by using a surface mount package (TO-263).
Applications
● Continuous-current-mode PFC circuit.
● An output rectifier for SMPS, UPS, or DC-DC converters.
● A Flywheel diode for inverters and choppers.
Features
● Surface mount package (TO-263)
● Low loss FRD (600 V_L series)
Package --- TO-263
Die Structure: Silicon Planer Diode (FRD)
Key Specifications
Electrical characteristics
Parameter
Symbol Unit
Rating
Conditions
Forward Voltage Drop
VF
V
1.75 max. IF=3A
Reverse Leakage Current
IR
μA
50 max.
VR=VRM
Reverse Leakage Current
Under High Temperature
HIR
μA 100 max.
VR=VRM,
Tj=150°C
Reverse Recovery Time
trr
ns
50 max.
IF=IRP=100mA
90%Recovery point
Absolute maximum ratings
Parameter
Symbol
Unit
Rating
Transient Peak Reverse Voltage
VRSM
V
600
Peak Reverse Voltage
VRM
V
600
Average Forward Current
IF(AV)
A
3
Peak Surge Forward Current
IFSM
A
50
1/5
