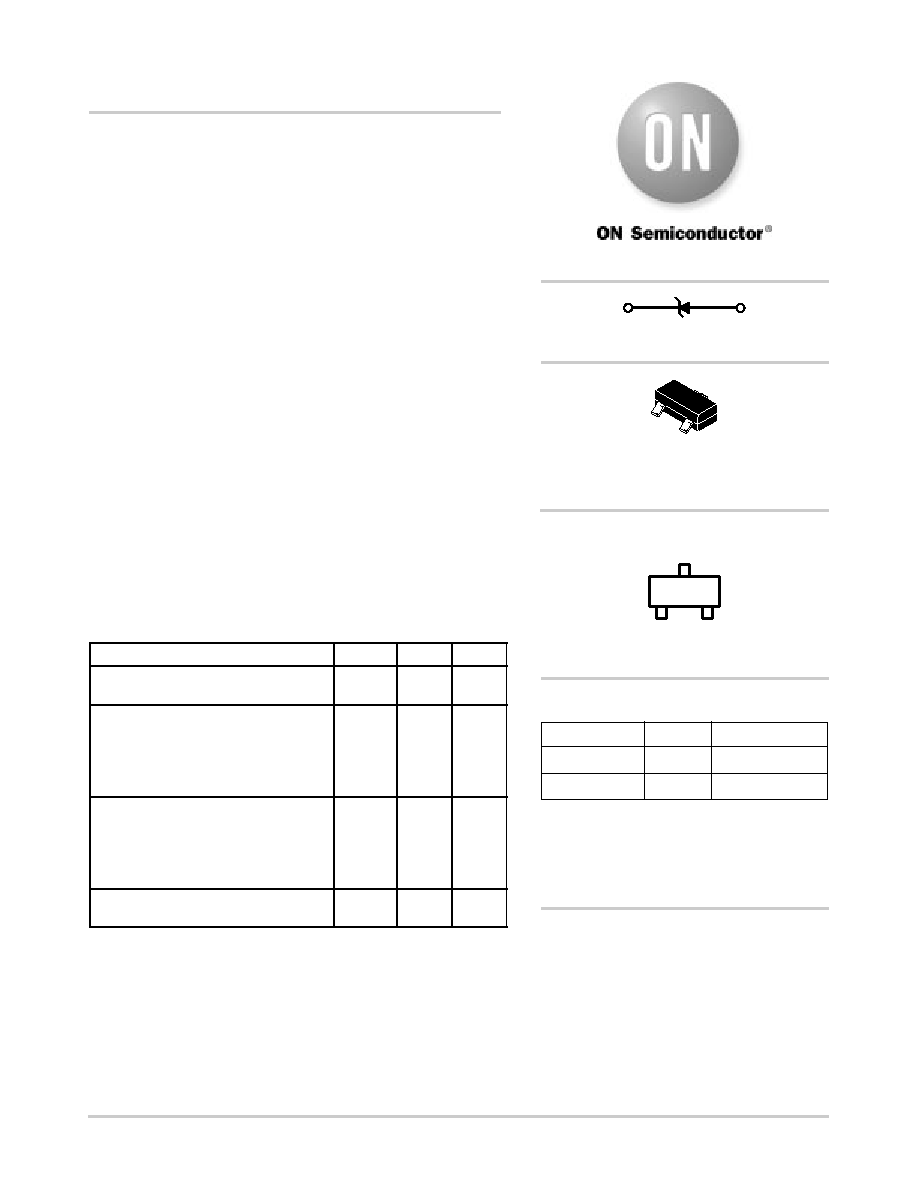

Semiconductor Components Industries, LLC, 2004
June, 2004 Rev. 3
1
Publication Order Number:
MMBZ5221ELT1/D
MMBZ5221ELT1 Series
Zener Voltage Regulators
225 mW SOT23 Surface Mount
This series of Zener diodes is offered in the convenient, surface
mount plastic SOT23 package. These devices are designed to provide
voltage regulation with minimum space requirement. They are well
suited for applications such as cellular phones, hand held portables,
and high density PC boards.
Specification Features:
225 mW Rating on FR4 or FR5 Board
Zener Voltage Range 2.4 V to 91 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 kV) per Human Body Model
Peak Power 225 W (8 x 20 ms)
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic case
FINISH:
Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260
°C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL 94 V0
MAXIMUM RATINGS
Rating
Symbol
Max
Unit
Peak Power Dissipation @ 20
ms (Note 1)
@ TL ≤ 25°C
Ppk
225
W
Total Power Dissipation on FR5 Board,
Derated above 25
°C
PD
225
1.8
mW
mW/
°C
Thermal Resistance
JunctiontoAmbient
RqJA
556
°C/W
Total Power Dissipation on Alumina
Derated above 25
°C
PD
300
2.4
mW
mW/
°C
Thermal Resistance
JunctiontoAmbient
RqJA
417
°C/W
Junction and Storage
Temperature Range
TJ, Tstg
65 to
+150
°C
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits
are exceeded, device functional operation is not implied, damage may occur
and reliability may be affected.
1. Nonrepetitive current pulse per Figure 9.
2. FR5 = 1.0 X 0.75 X 0.62 in.
3. Alumina = 0.4 X 0.3 X 0.024 in., 99.5% alumina.
Device
Package
Shipping
ORDERING INFORMATION
SOT23
CASE 318
STYLE 8
3
Cathode
1
Anode
MMBZ52xxELT1
SOT23
3000/Tape & Reel
MARKING DIAGRAM
See specific marking information in the device marking
column of the Electrical Characteristics table on page 2 of
this data sheet.
DEVICE MARKING INFORMATION
xxx = Specific Device Code
M
= Date Code
xxx M
MMBZ52xxELT3*
SOT23
10,000/Tape & Reel
3
1
2
http://onsemi.com
*MMBZ5246ELT1, and MMBZ5252ELT1
Not Available in 10,000/Tape & Reel.
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
