B111
3.5mm Pitch Miniature Double Row Connector for Secondary Power (Product Compliant to UL/CSA Standard)
MDF6 Series
I
Features
1. Pitch 3.5mm Miniature Type
This is a space saving miniature connector where the adjacent
contact pitch is set to 3.5mm and the opposite length is set to
5mm double-row alignment.
2. Current Capacity Secures 7A
Despite miniature power connector, the current capacity 7A is
secured using the AWG No.16 cable.
3. Box Type Header
The box type header secures scoop-proof insertion, and perfectly
prevents mis-insertion.
4. Inner Type Full Lock Adopted
Adopting the inner type full lock which the locking area is not
exposed to the outside, the connector can be engaged under the
high reliable and stable conditions.
I
Applications
Secondary power units for various equipment

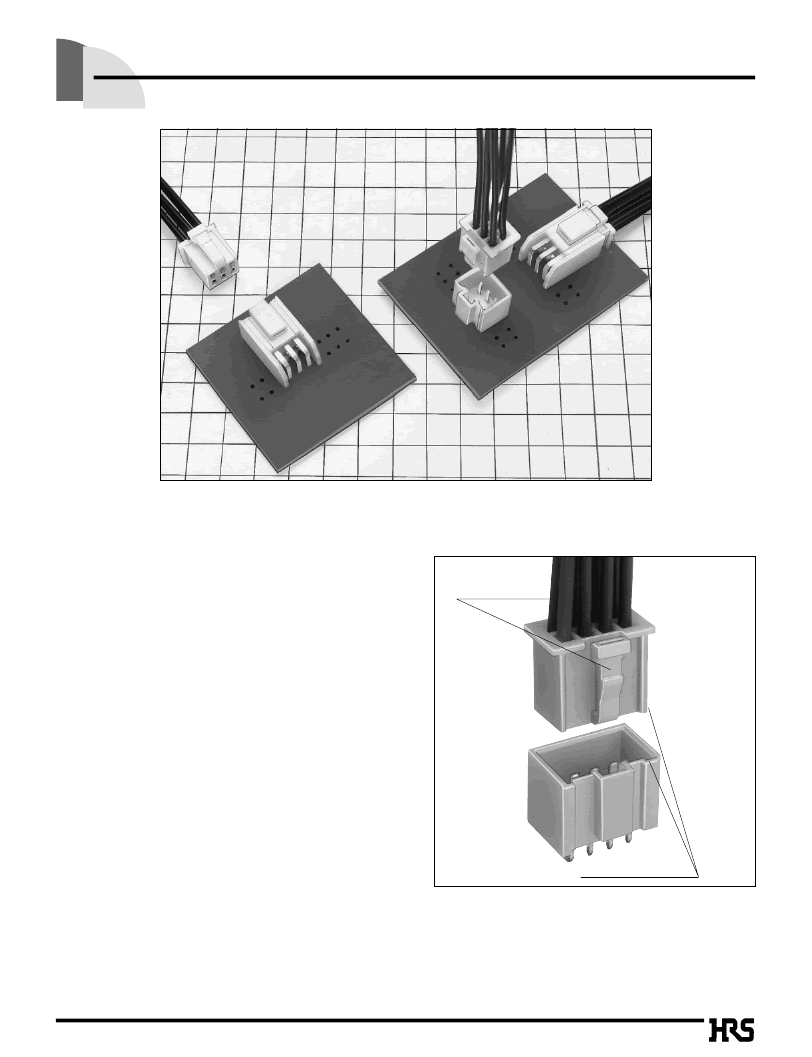

Mis-insertion protector
Inner type full lock
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
相關PDF資料 |
PDF描述 |
|---|---|
| MDF6-12DP-3.5DSA | 12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| MDF6-18DP-3.5DSA | 18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| MDF6-20DP-3.5DSA | 20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| MDF6-6DP-3.5DSA | 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| MDF6-8DP-3.5DSA | 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
