| 型號： | MC100EL13DWR2G |
| 廠商： | ON Semiconductor |
| 文件頁數： | 1/6頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC CLOCK BUFFER 1:3 1GHZ 20-SOIC |
| 標準包裝： | 1,000 |
| 系列： | 100EL |
| 類型： | 扇出緩沖器（分配） |
| 電路數： | 2 |
| 比率 - 輸入:輸出： | 1:3 |
| 差分 - 輸入:輸出： | 是/是 |
| 輸入： | ECL，PECL |
| 輸出： | ECL，PECL |
| 頻率 - 最大： | 1GHz |
| 電源電壓： | 4.2 V ~ 5.7 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 20-SOIC（0.295"，7.50mm 寬） |
| 供應商設備封裝： | 20-SOIC |
| 包裝： | 帶卷 (TR) |
Semiconductor Components Industries, LLC, 2008
November, 2008 Rev. 6
1
Publication Order Number:
MC100EL13/D
MC100EL13
5VECL Dual 1:3 Fanout
Buffer
The MC100EL13 is a dual, fully differential 1:3 fanout buffer. The Low
OutputOutput Skew of the device makes it ideal for distributing two
different frequency synchronous signals.
The differential inputs have special circuitry which ensures device
stability under open input conditions. When both differential inputs are left
open the D input will pull down to VEE, The D input will bias around
VCC/2 and the Q output will go LOW.
Features
500 ps Typical Propagation Delays
50 ps OutputOutput Skews
The 100 Series Contains Temperature Compensation
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with
VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with
VEE = 4.2 V to 5.7 V
Internal Input Pulldown Resistors
Q Output will Default LOW with Inputs Open or at VEE
Internal Input Pulldown Resistors on All Inputs, Pullup Resistors on
Inverted Inputs
PbFree Packages are Available*
*For additional information on our PbFree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.

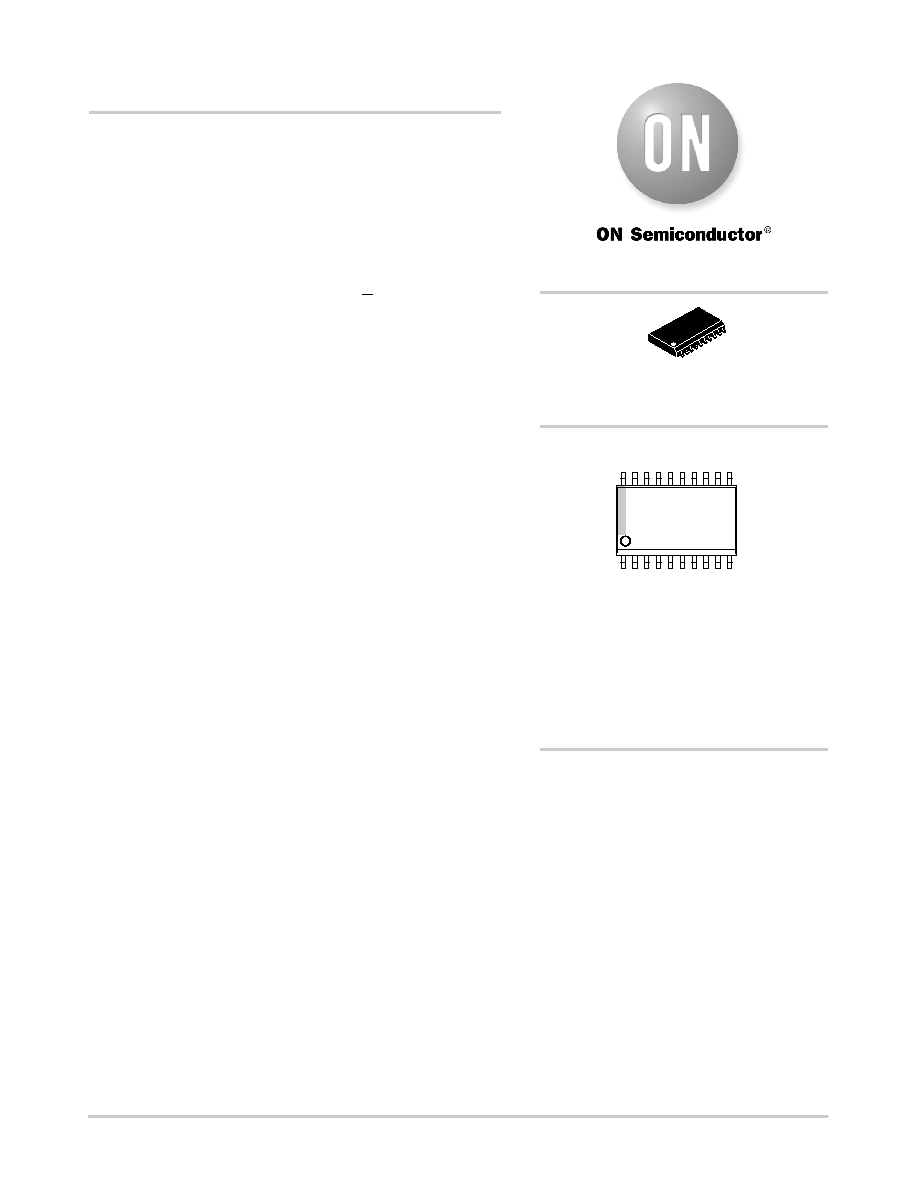

MARKING DIAGRAM*
SO20L
DW SUFFIX
CASE 751D
http://onsemi.com
*For additional marking information, refer to
Application Note AND8002/D.
20
1
100EL13
AWLYYWWG
A
= Assembly Location
WL
= Wafer Lot
YY
= Year
WW
= Work Week
G
= PbFree Package
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
ORDERING INFORMATION
