New Product
MBR(F,B)2090CT & MBR(F,B)20100CT
Vishay General Semiconductor
www.vishay.com
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 89033
Revision: 24-Jun-09
2
Notes
(1) Pulse test: 300 s pulse width, 1 % duty cycle
(2) Pulse test: Pulse width
≤ 40 ms
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted)
ELECTRICAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
VALUE
UNIT
Maximum instantaneous forward voltage per diode (1)
IF = 10 A
IF = 20 A
TC = 25 °C
TC = 125 °C
VF
0.80
0.65
0.75
V
Maximum reverse current per diode at working peak
reverse voltage (2)
TJ = 25 °C
TJ = 100 °C
IR
100
6.0
A
mA
THERMAL CHARACTERISTICS (TC = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
MBR
MBRF
MBRB
UNIT
Typical thermal resistance per diode
RθJA
RθJC
60
2.0
-
3.5
60
2.0
°C/W
ORDERING INFORMATION (Example)
PACKAGE
PREFERRED P/N
UNIT WEIGHT (g)
PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
TO-220AB
MBR20100CT-E3/4W
1.88
4W
50/tube
Tube
ITO-220AB
MBRF20100CT-E3/4W
1.75
4W
50/tube
Tube
TO-263AB
MBRB20100CT-E3/4W
1.38
4W
50/tube
Tube
TO-263AB
MBRB20100CT-E3/8W
1.38
8W
800/reel
Tape and reel

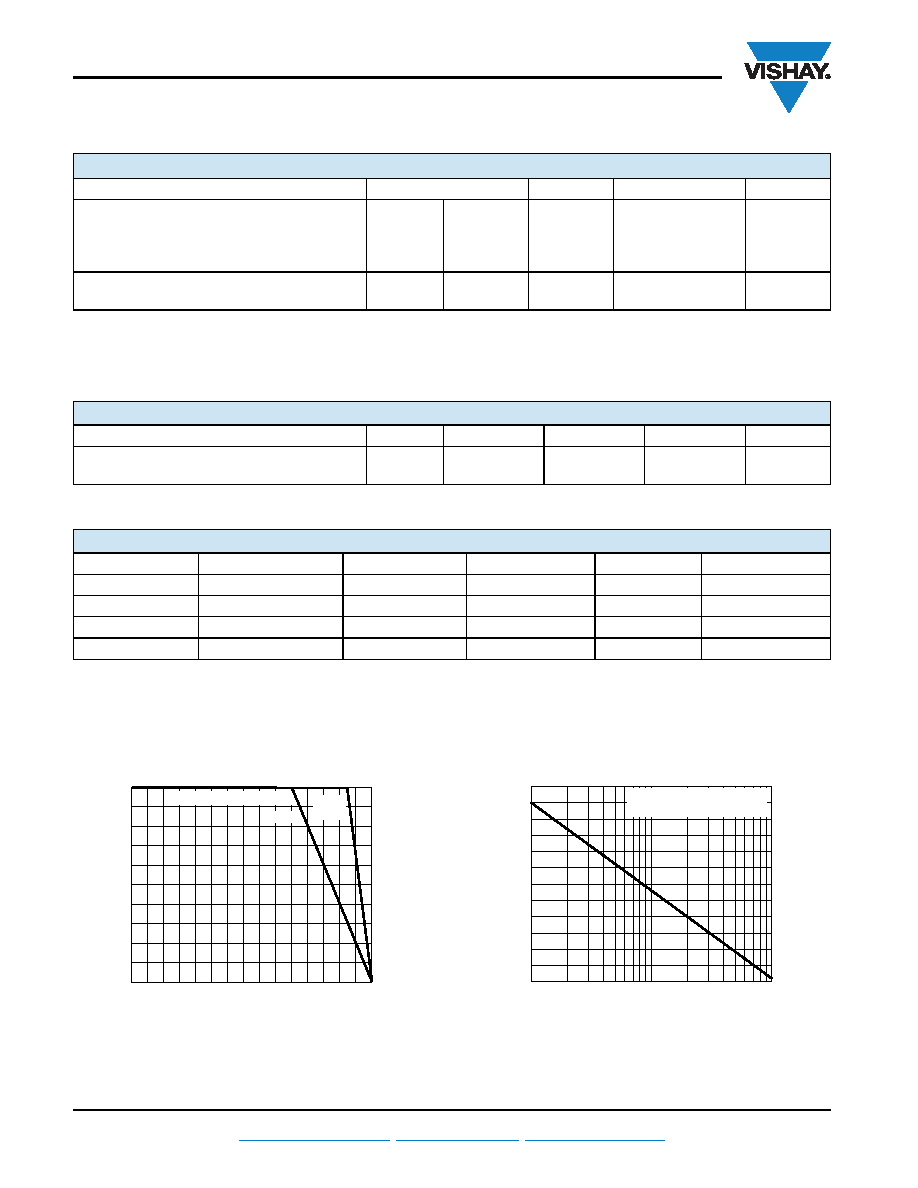

Figure 1. Forward Current Derating Curve
0
4
8
12
20
0
50
100
150
16
Case Temperature (°C)
A
v
er
age
F
o
rw
ard
C
u
rrent
(A)
Resistive or Inductive Load
MBRF
MBR &
MBRB
Figure 2. Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
40
60
100
80
140
120
160
1
100
10
T
J = TJ Max.
8.3 ms Single Half Sine-Wave
Number of Cycles at 60 Hz
P
eak
F
o
rw
ard
S
u
rge
C
u
rrent
(A)
