GPS Low Noise Amplifier
1.5 - 1.7 GHz
MAALSS0027
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com
for additional data sheets and product information.
V1
3

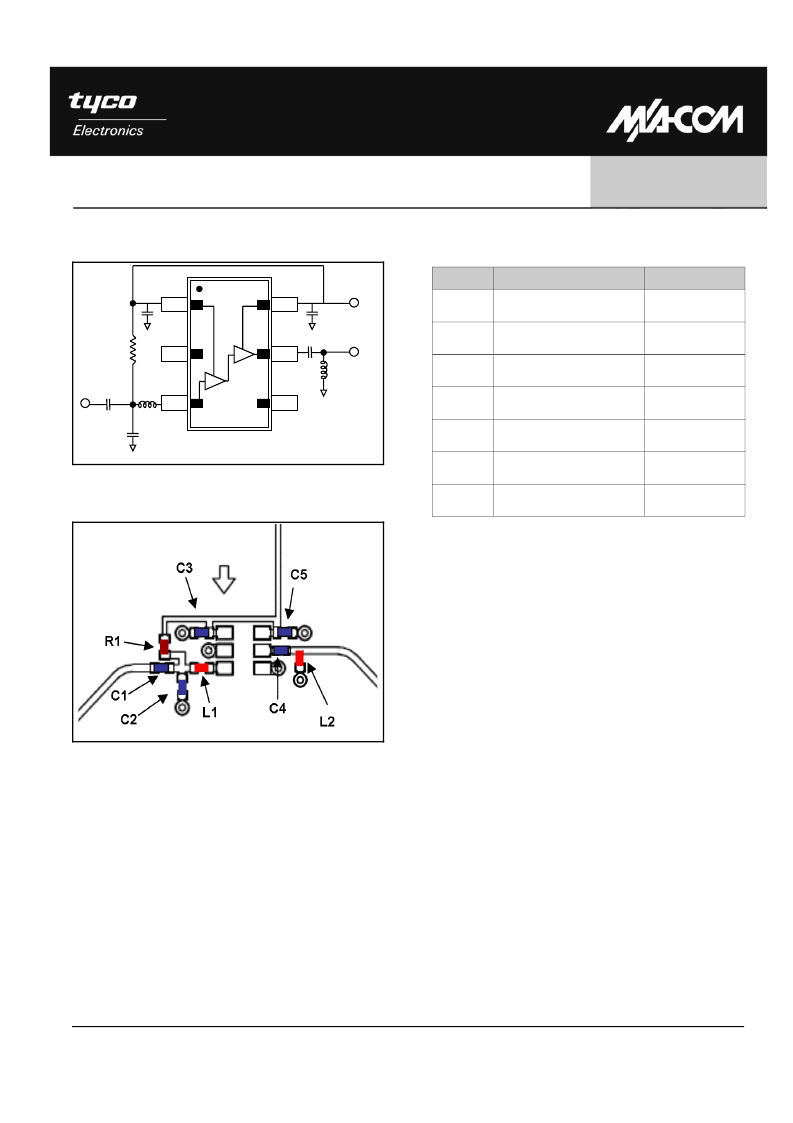

Recommended PCB Configuration
Application Schematic
V
DD1
GND
RF
IN
GND
RF
OUT
V
DD2
V
DD
C2
R1
RF
IN
RF
OUT
C1
C3
C5
L1
L2
C4
Recommended Tuning for 1.575 GHz
Item
Description
Manufacturer
C1
27 pF Capacitor,
0402 Package, 5%
Murata
C2
1.5 pF Capacitor,
0402 Package, 5%
Murata
C3,C5
0.1 μF Capacitor,
0402 Package, 5%
Murata
C4
10 pF Capacitor,
0402 Package, 5%
Murata
L1
12 nH Inductor,
0402 Package, 2%
Coilcraft
L2
3.9 nH Inductor,
0402 Package, 2%
Coilcraft
R1
23.7 KOhm Resistor,
0402 Package, 1%
Panasonic
