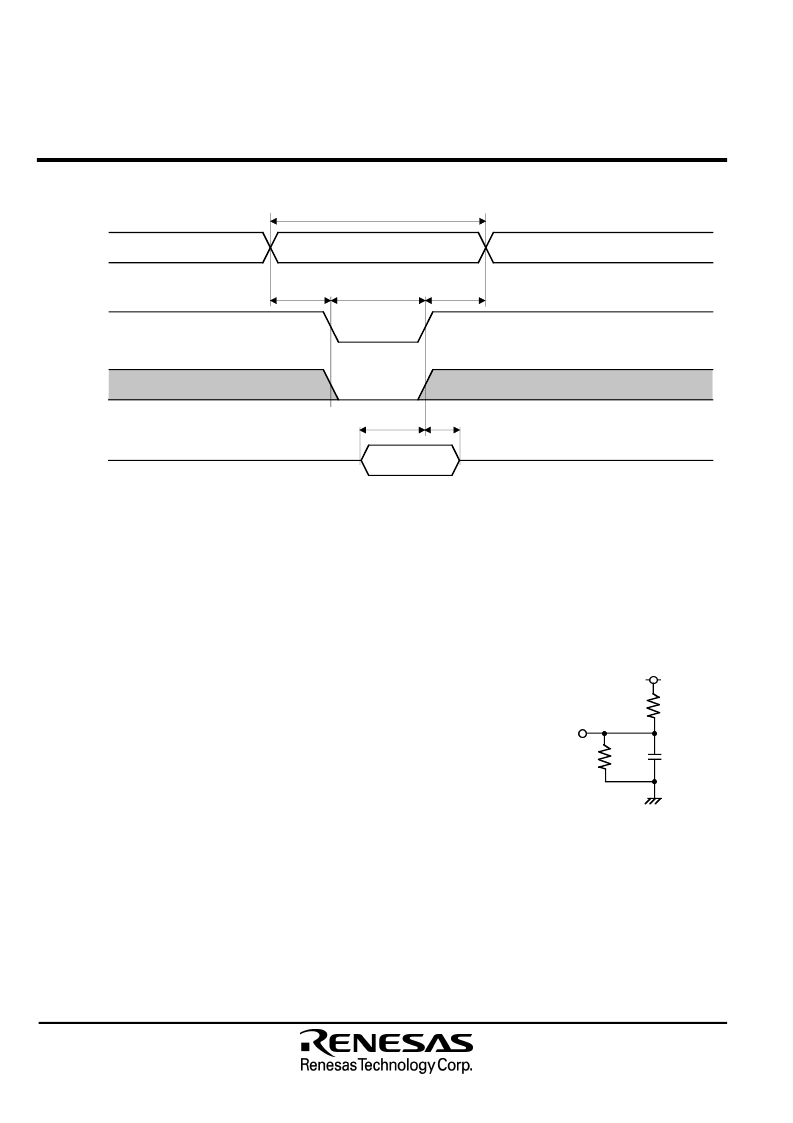

RENESAS LSIs
262144-BIT (32768-WORD BY 8-BIT) CMOS STATIC RAM
M5M5256DFP,VP-55LL,-70LL,-70LLI,
-55XL,-70XL
6
Write cycle ( /S control mode)
t
su
(S)
t
rec
(W)
t
h
(D)
t
CW
(Note 5)
(Note 3)
(Note 3)
t
su
(A)
(Note 4)
t
su
(D)
DATA IN
STABLE
DQ
1~8
/S
/W
A
0~14
Note 3 : Hatching indicates the state is "don't care".
4 : Writing is executed in overlap of /S and /W low.
5 : If /W goes low simultaneously with or prior to /S, the outputs remain in the high impedance state.
6 : Don't apply inverted phase signal externally when DQ pin is output mode.
7 : ten, tdis are periodically sampled and are not 100% tested.
(4) MEASUREMENT CONDITIONS
Input pulse level .............. V
IH
=2.4V,V
IL
=0.6V
Input rise and fall time ..... 5ns
Reference level ................ V
OH
=V
OL
=1.5V
Output load ...................... Fig.1 CL=50pF (-55LL,-55XL )
CL=100pF (-70LL,-70LLI,-70XL )
CL=5pF (for ten,tdis)
Transition is measured ±500mV from steady
state voltage. (for ten,tdis)
Vcc
DQ
C
L
Fig.1 Output load
1.8k
990
(Including
scope and JIG)
