MITSUBISHI MICROCOMPUTERS
M35061-XXXSP/FP
SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
25
SERIAL DATA INPUT TIMING
(1) The address consists of 8 bits
3.
(2) The data consists of 8 bits
3.
(3)
The 8 bits
3 in the SCK after the CS signal has fallen are the
address, and for succeeding input data, the address is
incremented every 24 bits (8 bits
3). Refer to Fig.12 about de-
tail for address increment.

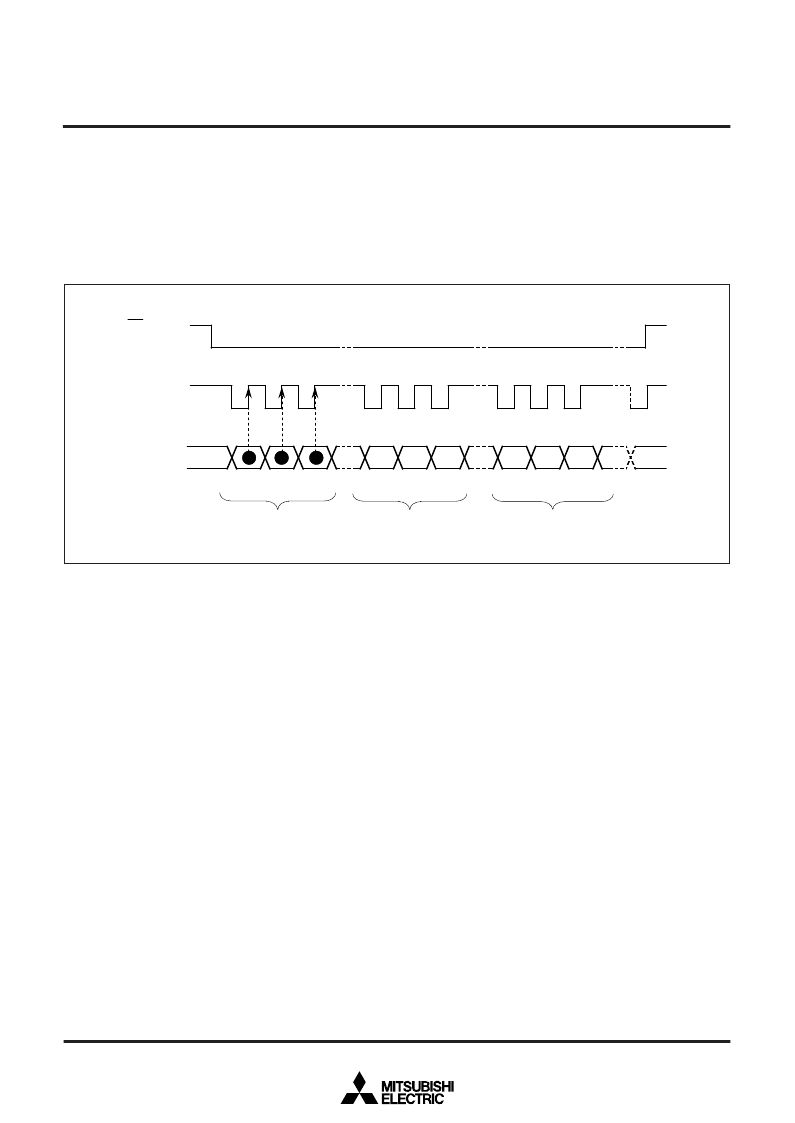

Fig. 11 Serial input timing
CS
SCK
DA7 to DA0
(MSB) (LSB)
Address (8 bits
3)
LSB
LSB
LSB
MSB
MSB
MSB
Data N (8 bits
3)
Data N + 1(8 bits
3)
N=1,2,3............
