Luxeon III Emitter DS45 (3/05)
16
Emitter Reel Packaging
Notes:
1.Luxeon emitters should be picked up by the body (not the lens) during placement. The inner diameter of the pickup collet
should be greater than or equal to 6.5 mm. Please consult Lumileds' Application Brief AB10 on Luxeon Emitter assembly
information for further details on assembly methods.
2.Drawings not to scale.
3.All dimensions are in millimeters.
4.All dimensions without tolerances are for reference only.

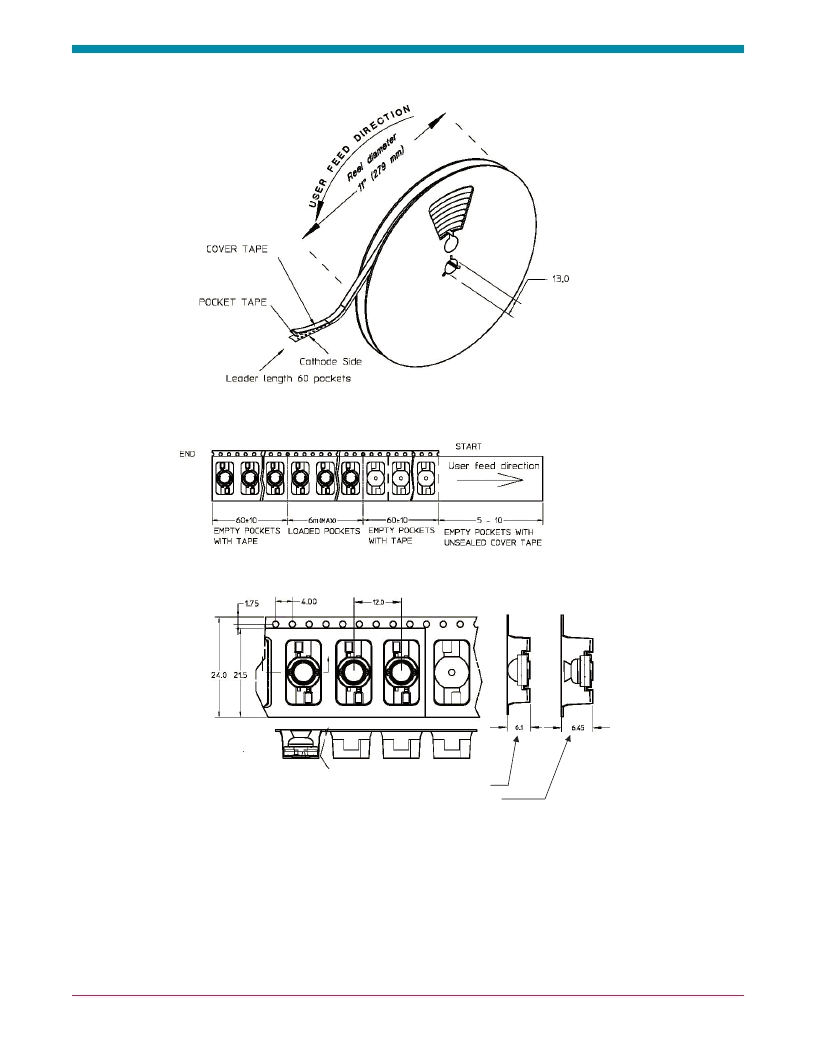

Figure 14. Reel dimensions and orientation.
Lambertian
Side Emitting
Figure 15. Tape dimensions for Lambertian and
Side Emitting radiation pattern.
